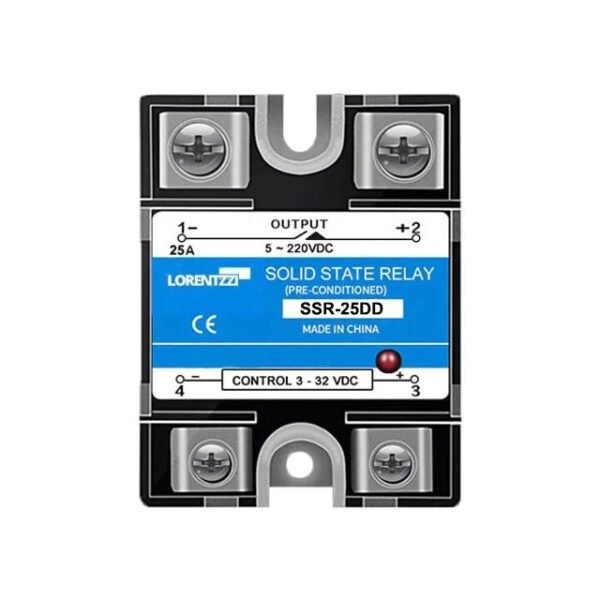

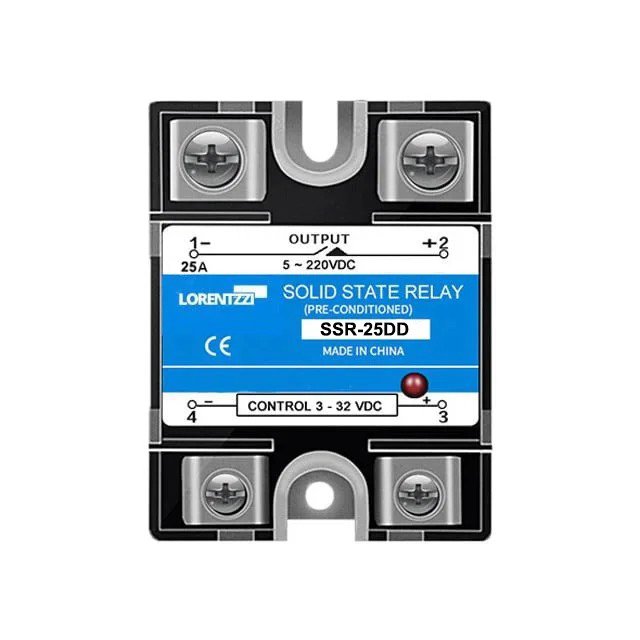

SSR 25DD 3-32VDC Input DC Solid State Relay

1.Single phase DC control DC SSR,

2.Load current 25A,

3.Suitable for various dc loads,

4.2 years long warranty.

SSR 25DD 3-32VDC Input DC Solid State Relay Introduction:

  • The SSR 25DD is a 25 amp DC DC solid state relay. Its control voltage is 3-32VDC control voltage,
  • The output voltage range is from 5VDC to 220VDC, so it can operate a DC electric heater, DC taster or other DC resistive loads, which rated power is not more than 2750W. The DC DC SSR is also suitable for motor type inductive loads etc.
  • This SSR 25DD solid state relay product size is 57.4*44.8*28 mm. If we use it with a din rail heat radiator such as D-74 heatsink, this solid state relay can used as a din rail solid state relay.
  • As the load current is only 25 amperes, so a suitable heat radiator need to be into consideration.
  • The input and output circuits are electrically optical isolated from each other, this makes it much safer to use.

Specifications:
