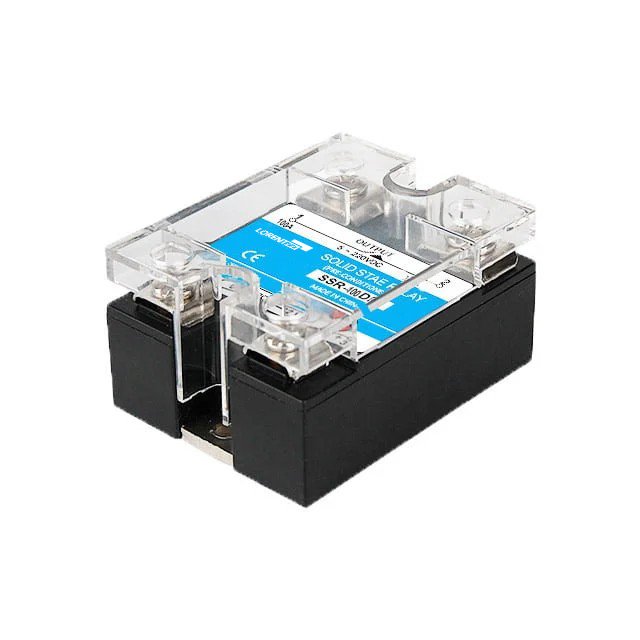

SSR 100DD DC DC Solid State Relay Module

1.Single phase DC control DC SSR,

2.Load current 100A,

3.Suitable for various dc loads,

4.Made in China, MOQ 10 pcs.

SSR 100DD DC DC Solid State Relay Module Introduction:

  • The SSR 100DD is a 100 amp DC DC solid state relay. Its control voltage is 3-32VDC control voltage,
  • The output voltage range is from 5VDC to 220VDC, so it can operate a DC electric heater, DC taster or other DC resistive loads, which rated power is not more than 11 kilo watts. The DC DC SSR is also suitable for motor type inductive loads etc., but please note the maximum load power should be less than 3142 watts.
  • This SSR 100DD solid state relay product size is 57.4*44.8*28 mm. It is a very small panel mounting solid state relay.
  • As the load current is only 60 amperes, so a heat radiator need to consider. The most suitable heatsink is our  H-150 heat radiator with a cooling fan, it is a screw fixed type heatsink.
  • The input and output circuits are electrically optical isolated from each other, this makes it much safer to use.
