TCX5 Series Universal PID Temperature Controllers
Precision Control for Industrial Heating & Cooling Applications
- Advanced PID Algorithm
- Fast 100ms Sampling & Auto-Tuning
- Universal Input: TC / RTD / Analog Signals
- Easy-to-use Program
- Flexible Output: Relay / SSR / Analog

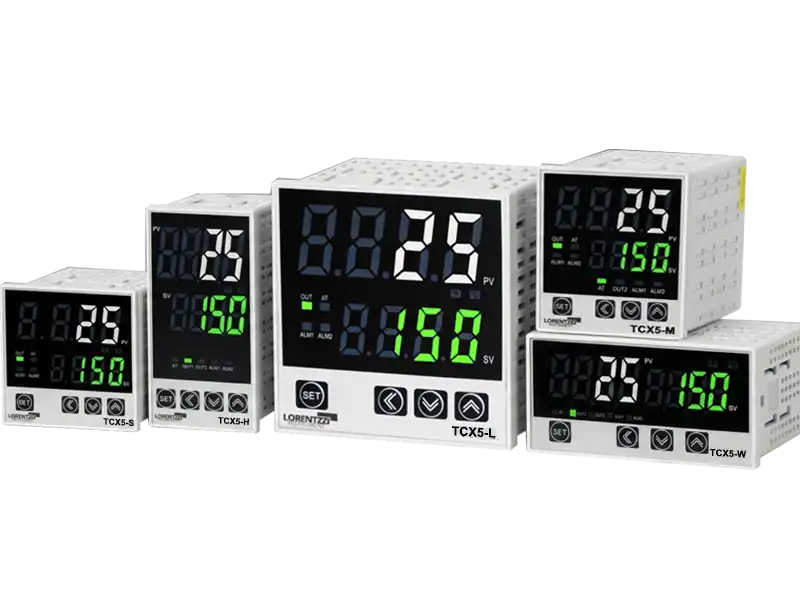

Dimensions available

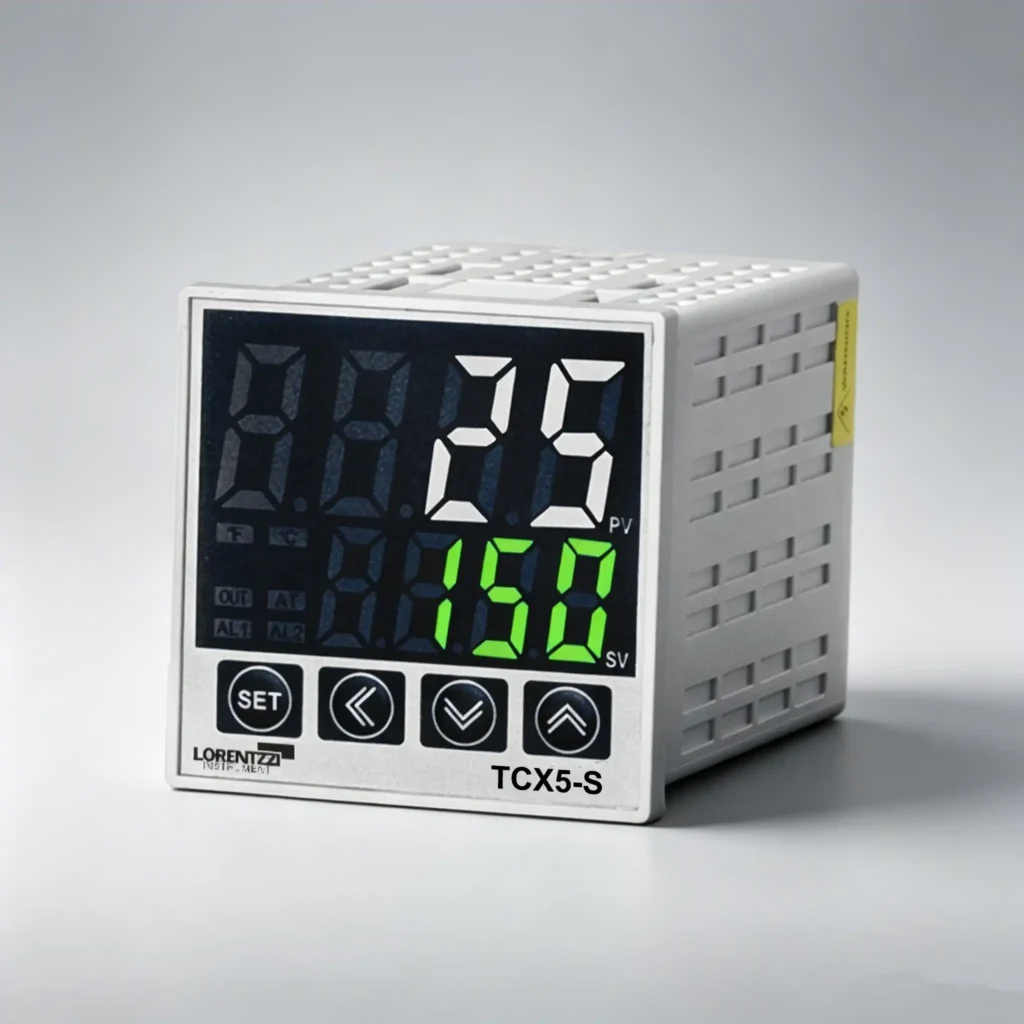

TCX5-S (48*48 mm)

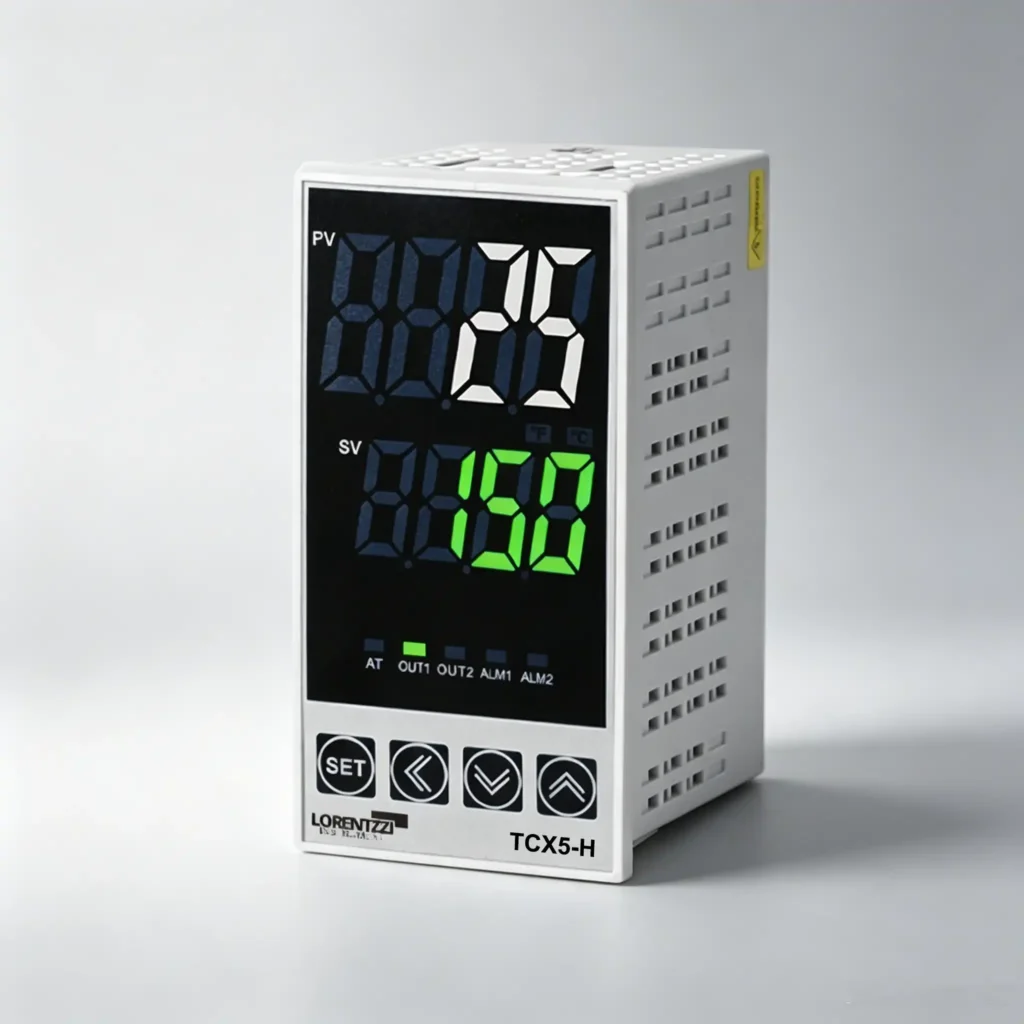

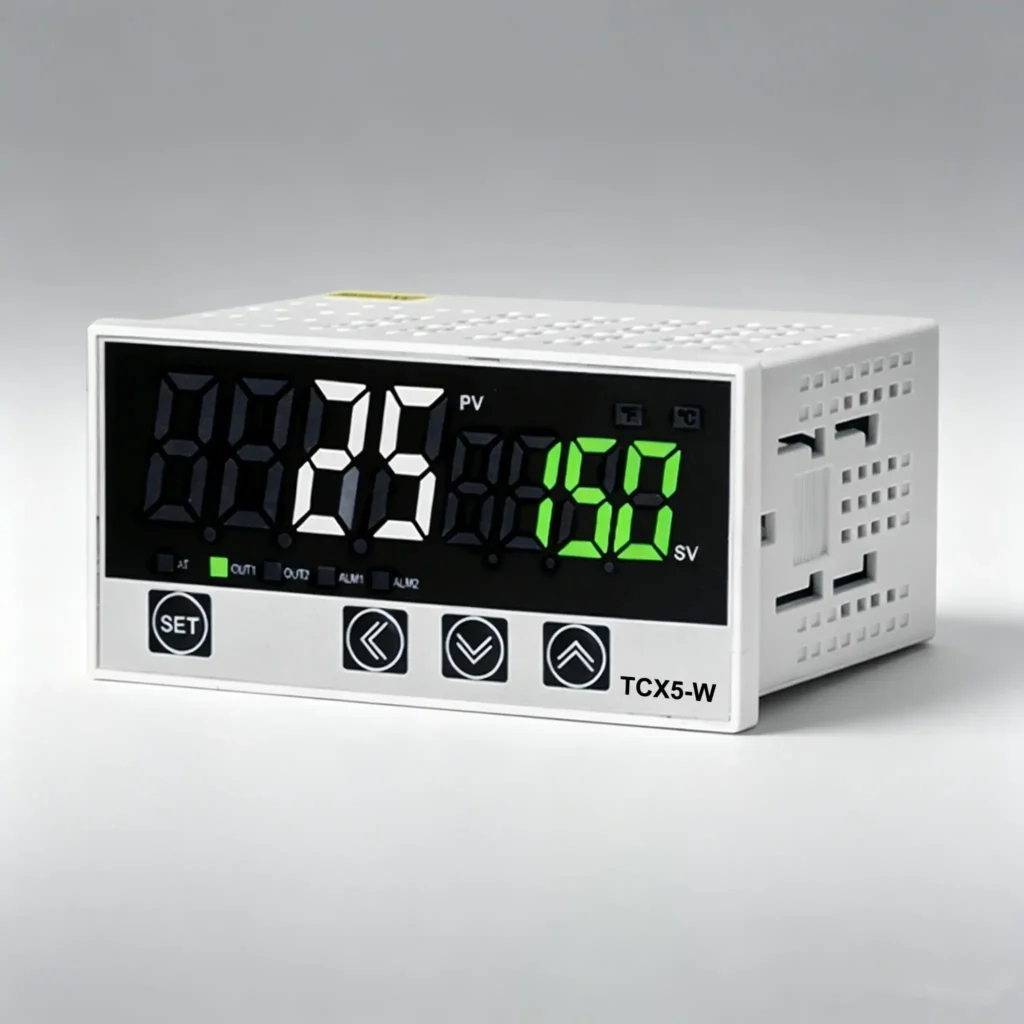

TCX5-H (48*96 mm)

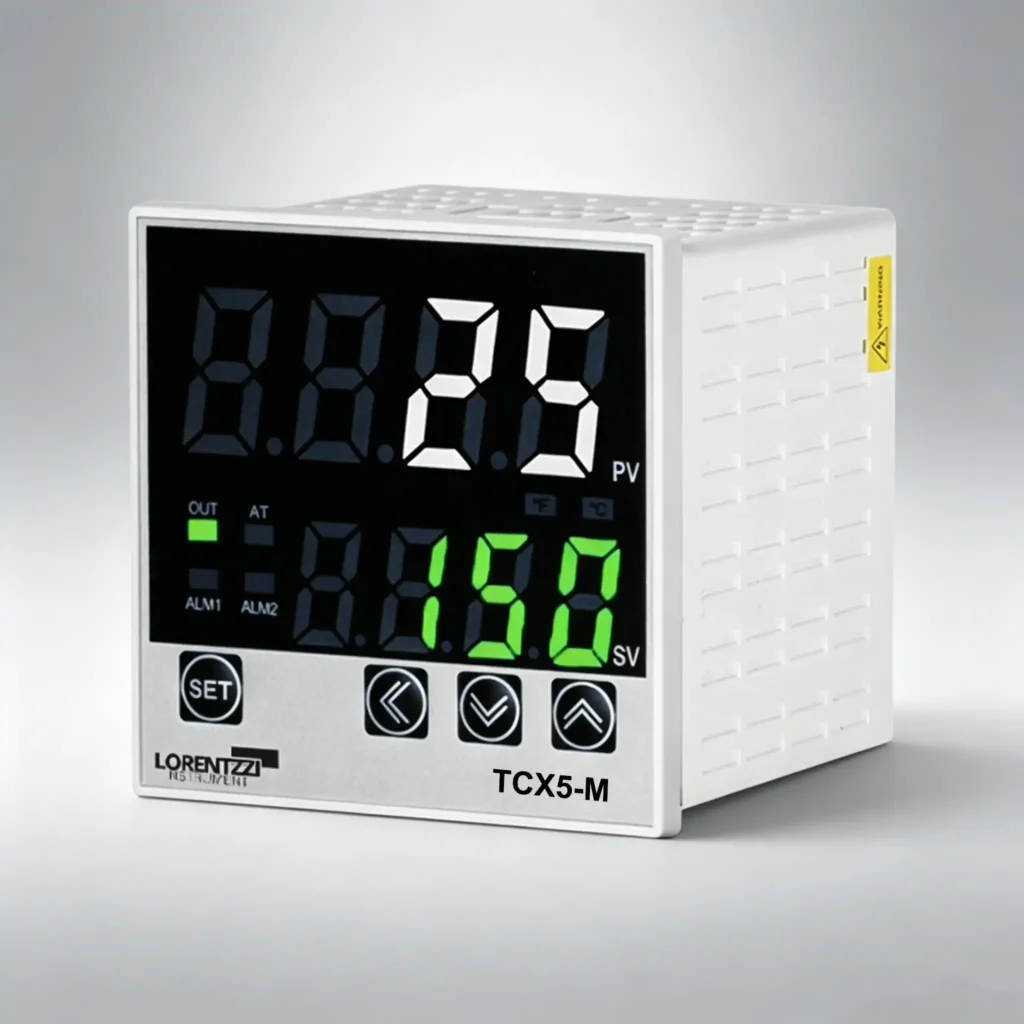

TCX5-M (72*72 mm)
TCX5-W (48*96 mm)

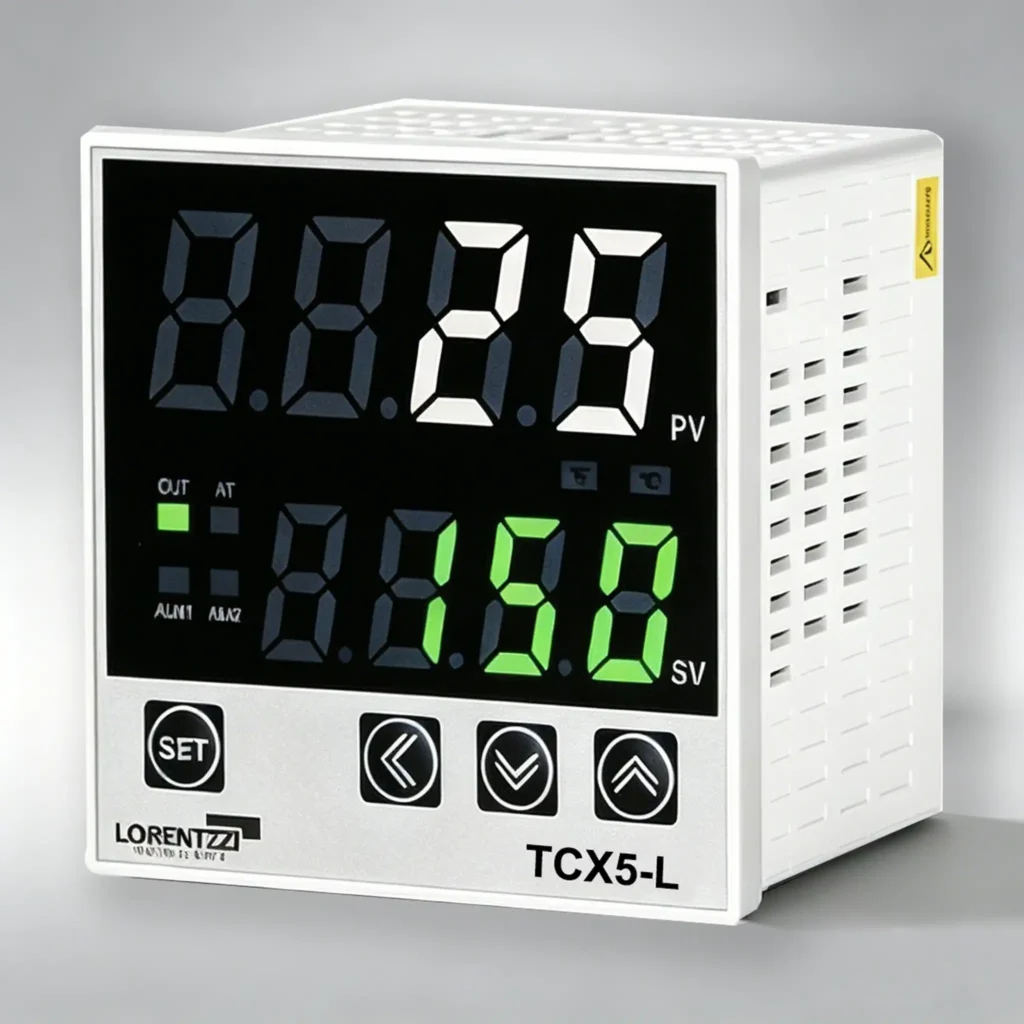

TCX5-L (96*96 mm)
Key Features
5 dimensions optional
We can produce instruments in 5 sizes: 48*48 mm, 48*96 mm, 72*72 mm, and 96*96 mm, to meet your various needs.
100 ms sampling time
Our TCX5 controller has a sampling time of up to 100 milliseconds, enabling more precise temperature control.
Advanced PID Control
This TCX5 temperature controller uses a state-of-the-art PID algorithm to precisely control the temperature.
Easy auto-tuning
The auto-tuning function of our TCX5 allows you to easily set PID parameters without manual adjustment.
Easy-to-use operation
We’ve rewritten the internal program to allow you to easily set each parameter, simplifying the operation and making it easy to use.
℉ / ℃ switchable
This temperature controller can display temperatures in Fahrenheit or Celsius, and can be used and sold no matter which country you are in.
Multiple operating voltages
The operating voltage can be selected from AC 100-240V or DC 24V, so you can use it freely whether you have an AC power supply or a DC power supply.
PID or ON OFF control
Two control modes are available: PID for precise temperature control and ON/OFF for low-frequency temperature control.
Larger and Clearer LED Display Technology

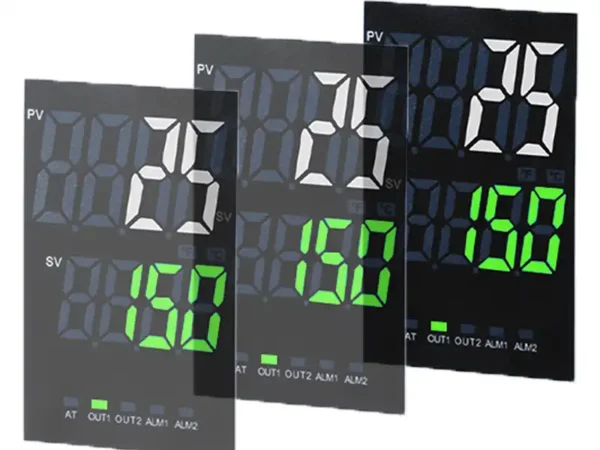

Compared to traditional 1.2 mm wide digital tube indicators, the Lorentzzi® TCX5 PID temperature controller uses an LED indicator to display values, with an indication width of 2.0 mm, making it clearer for users.
More advanced PID algorithm

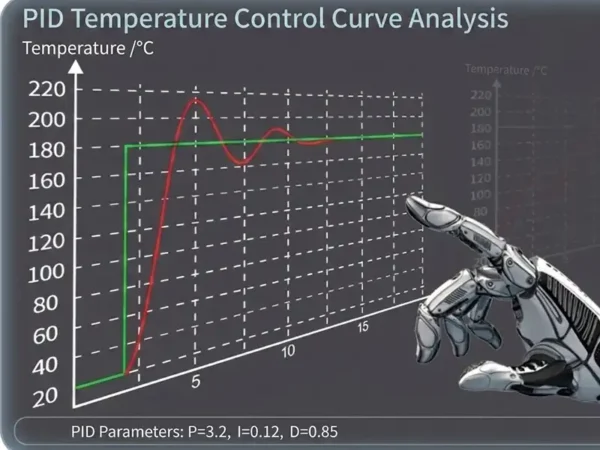

Lorentzzi® TCX5 temperature controller uses a more advanced PID algorithm to precisely control the temperature, ensuring a temperature control error of less than ±0.1 degrees Celsius. It also features a built-in self-tuning function, eliminating the need for manual adjustment of individual PID parameters.
Real Universal Input

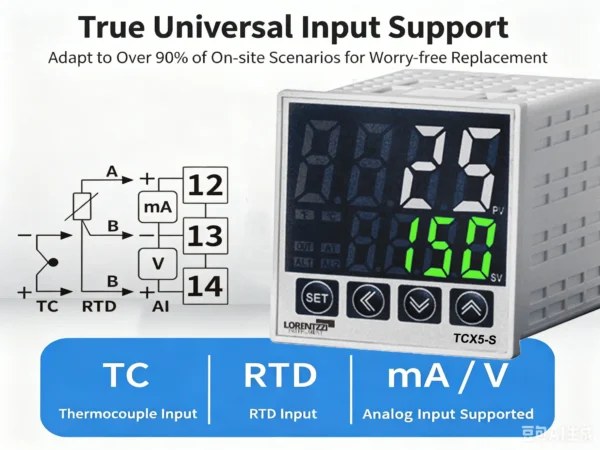

The Lorentzzi TCX5 PID temperature controller’s input is not limited to traditional thermocouples and RTDs; its input signals can also be 4-20 mA, 0-5 VDC, or 1-5 VDC analog signals, so you can confidently use it with valves or temperature transmitters.
Heating & Cooling Free Switching

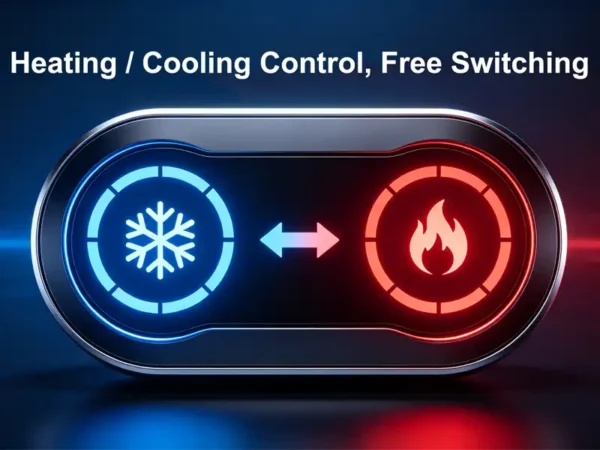

The Lorentzzi TCX5 PID temperature controller can be used for both heating and cooling control, so whether you want to use PID control to control the heating elements in an HVAC system or cooling control to control a compressor, you can easily use this temperature controller.
Quick Relay/SSR Output Switching

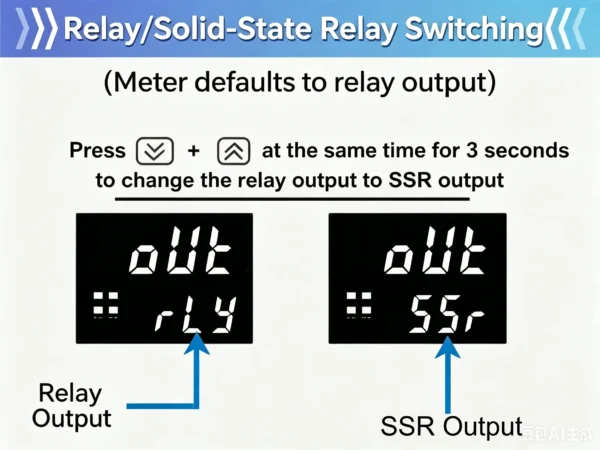

The controller defaults to relay output mode. To switch to SSR output, simply press the ▼ and ▲ keys simultaneously for 3 seconds. The display will show rLY for relay(can be used to control DC to AC SSRs, AC to AC SSRs or contactors) or SSr for SSR, eliminating the need for hardware changes.
Advanced Soft-start function
When a heating system is first put into operation, the current power output (PV) is much lower than the setpoint (SV), while the output power (OUT) reaches 100%. In some industries, this can seriously threaten the lifespan of the heating system, especially when the system frequently jumps from a low temperature to full power instantaneously.

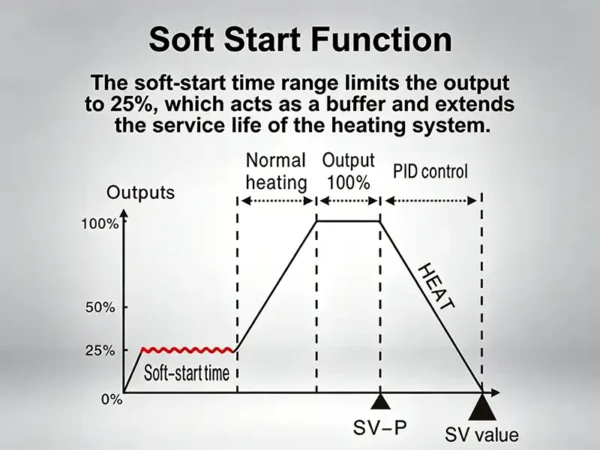

A soft-start time range limits the output power to 25%, which acts as a buffer and extends the lifespan of the heating system.
Laser Printing
On the side parameter section, we use a laser printer to print the logo, wiring diagram, and specifications to facilitate maintenance and replacement after long-term use.
Technical Specifications
| Power supply | 100–240VAC / 24VDC | |
|---|---|---|
| Allowable voltage range | 90–110% of rated voltage | |
| Power consumption | Max. 8VA | |
| Input specification | TC | K, E, J, N, T, S, R, B |
| RTD | Pt100, Cu50 | |
| Linear current | 0–20mA, 4–20mA | |
| Linear voltage | 0–5V, 1–5V | |
| Display accuracy | ±0.5% | |
| Output specification | Relay contact output: 250VAC 5A 1NO1NC | |
| SSR: 12VDC ±2V, below 20mA | ||
| Voltage output (control output / variable output) | ||
| Current output (control output / variable output) | ||
| SCR output (zero-crossing output / phase shift output) | ||
| Option output | Alarm output | Relay 250VAC 5A, Max. two sets of alarm outputs |
| Com. output | RS485 Communication output (Modbus RTU method) | |
| Control method | ON/OFF position control, PID control | |
| Sampling period | 100ms | |
| Relay life cycle | Mechanical above 2.5 million times, Electrical above 100,000 times | |
| Dielectric strength | 2000VAC 50/60Hz for 1min. (between all terminals and case) | |
| Vibration | 0.75mm amplitude at frequency 5 to 55Hz (for 1min.) in each X,Y,Z direction for 2 hours | |
| Insulation resistance | Min. 100MΩ (500VDC) MEGA | |
| Noise resistance | Square shaped noise by noise simulator (pulse width 1 μs) ±2kV R-phase, S-phase | |
| Memory retention | Approx. 10 years (non-volatile semiconductor memory type) | |
| Environment | Ambient temp. | -5~40℃; storage: -10~50℃ |
| Ambient humi. | 35%~85%RH; storage: 35%~85%RH | |
Frequently Asked Questions
Why use this PID temperature controller?
- 100ms high-speed sampling rate and ±0.5% display accuracy;
- Large LED display with clear and easy-to-read white PV + green SV characters;
- Switchable between relay and solid-state relay drive outputs;
- Control options: On/Off control, PID control, phase-shift triggering, etc.;
- Optional communication output: RS485 (Modbus RTU);
- Convenient panel mounting with snap-on design.
What is the MOQ for this temperaturer controller?
There is no minimum order quantity requirement. If you are an end user, we can sell directly to you; for distributors and importers, we can offer more pricing support.
What is your warranty time?
Our PID temperature controllers come with a 2-year warranty. During this period, if the product is damaged due to non-human causes, we will provide free compensation and free replacement parts.
Which certificates do you have?
We currently hold CE and RoHS certifications. If your country or clients have special requirements, such as UL, CSA, UKCA, etc., we can also process the relevant certifications for you.
Can i place a trial order for it?
Yes, we can accept trial orders. After evaluation and based on mutual trust, we can provide free samples, and we can ship them using your DHL, FedEx, or UPS account.
What is your payment method?
For small orders, we accept wire transfer, PayPal, Western Union, and credit card payments; for large orders, we accept sight letters of credit, 30% wire transfer deposit, and 70% payment before shipment.
Application Scenarios of TCX5 Temperature Controllers
Coffee roasting equipment
Manages rapid temperature changes during roasting to achieve consistent roast levels. Real-time adjustments prevent burning or under-roasting, preserving aroma and flavor.
Beer brewing equipment
Controls fermentation temperatures to optimize yeast activity and flavor profiles. Monitors and adjusts heat during mashing, boiling, and conditioning stages to prevent off-flavors.
Printing equipment
Stabilizes temperature in processes like ink drying or toner fusing. Prevents overheating or underheating that could cause smudging or misalignment, enhancing print quality.
Injection molding equipment
Ensures precise temperature regulation of plastic resin in barrels, nozzles, and hot runners, reducing defects like warping or incomplete fills and improving part quality.
Plastic bottle manufacturing
Regulates heat in extrusion and blow molding processes to maintain resin viscosity and mold integrity. Prevents defects such as uneven wall thickness.
Oven and furnace temperature control
Maintains uniform distribution heat in industrial ovens, kilns, or furnaces, dynamically adjusting heating elements to compensate for load changes or heat loss.
Ready to Upgrade Your Temperature Control?
Download the full datasheet or contact our team for custom configuration support.
