Introduction:
- The Lorentzzi I-50 heat sink is designed for single-phase solid-state relays (SSRs) with a current draw of less than 40 amps.
- For example, you can use it to cool our SSR-40DA, SSR-40AA, SSR-25DA, SSR-25AA, SSR-40DD, and SSR-25DD solid state relays.
- Please note that when mounting an SSR on this heat sink, a thermal pad or thermal grease should be placed between the SSR and the heat sink.
- The length is 50 mm and can be customized to your specifications.
- We also offer other heat sink types for your high-current solid-state relays (SSRs), such as the W-70 and D-74.
- If you would like to learn more about our I-50 heat sink pricing, please fill out the form at the bottom and contact us today!
Specifications:
| Model | I-50 |
| Shape | I shape |
| Cooling fan | Not available |

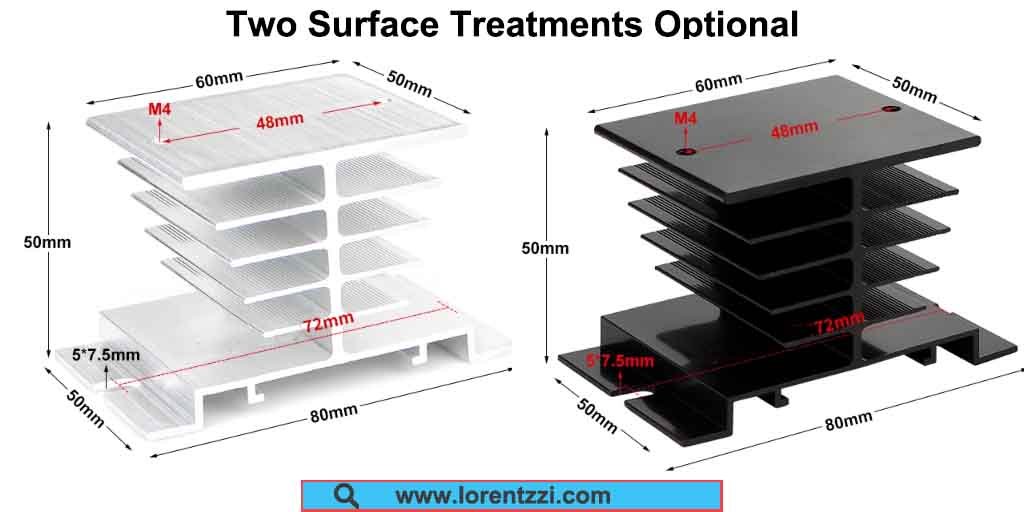

| Product dimension | 80*50*50 mm |
| Suitable SSR | ≤40 A single phase SSR |
| Colour | Silver or anodize black |
