Introduction:
-
- Our HM-1 Hour Meter is an analog mechanical time recording instrument that can be used on a variety of equipment including diesel generators, marine vessels, lawn mowers and more.
- Compared to our digital display HM-1D hour meter, the mechanical construction of HM-1 means that even if the power is off for a long time, the recorded running time will be maintained without losing data. Want to know more about the difference between mechanical and digital hour meters? Read this article: All You Need To Know About The Hour Meter
- Additionally, our this hour meter meter features low electrical noise and high reliability, and comes with a 2-year warranty.
- This hour meter housing is available in black and white so it can fit any style of machine.
- By recording the running time of the equipment, we can easily understand the running time of the equipment and perform maintenance regularly.
- The working voltage of our HM-1 hour meter can be 110VAC, 220VAC, 12VDC, 24VDC, 48VDC, etc. If you want a customized working voltage, you can contact us to get support.
- Want to buy this 72*72mm Mechanical Hour Meter in bulk? Fill out the form at the bottom to get our instant quote.

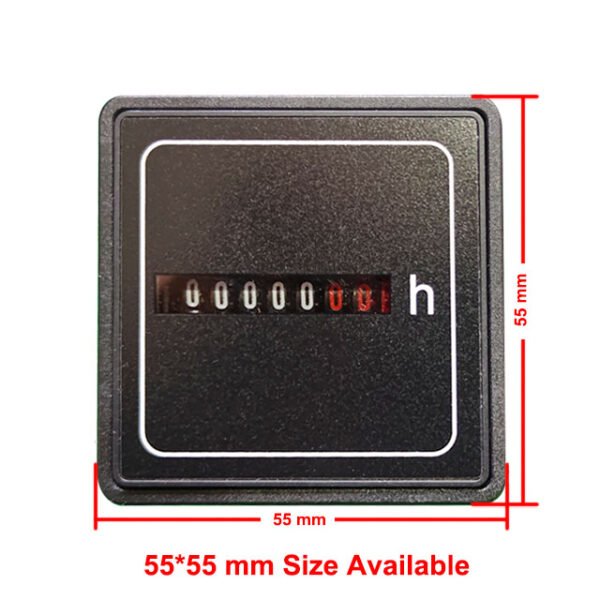

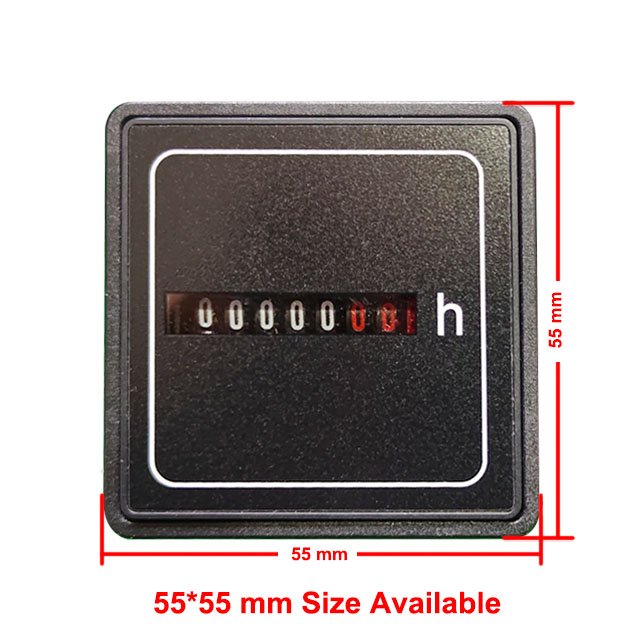

HM-1 Hour Meter Dimension:
Specifications:
| Model | HM-1 |
| Working voltage | 110VAC, 220VAC(50/60Hz), 12VDC, 24VDC |
| Time range | 0-99999.99 hours |
| Power consumption | 0.3W |
| Reset | No |
| Material | ABS |
| Ambient temperature | -10-50°C |
| Product dimension | 48*48mm(without framework), 72*72mm(with framework) |
