Lorentzzi CH series PID temperature controller
We offer better quality CH series PID temperature controllers, including 5 models: CH102, CH402, CH502, CH702, and CH902. The panel sizes are 48*48 mm, 48*96 mm, 96*48 mm, 72*72 mm and 96*96 mm respectively. Click the button below to get our latest prices!
Why you need our CH series temperature controller?
TC+RTD Inputs
Our CH seires PID temperature controller input supports thermocouple, RTD and 4-20 mA or 0-10 VDC analog signal. Client can choose by inner program.
SSR+Relay Outputs
The default output of our CH temperature controller is relay plus SSR, so you can use it with our solid state relays or AC contactors for precise temperature control.
Atuo-tuning Function
Our CH temperature controllers feature an advanced auto-tuning function that makes it easier to find the most suitable PID parameters for user convenience.
℃ Or ℉ Selectable
Users can easily choose to display the temperature in Celsius or Fahrenheit, customers in different countries can use it freely.
Alarm Function
The alarm can choose high temperature deviation, low temperature deviation or other multiple alarm modes to ensure more accurate temperature control.
Wide Working Voltage Range
Our CH Series PID temperature controllers operate in the range of 100-240 VAC or 24 VDC and can be used with confidence by any customer around the world.
Quick Sampling Time
The sampling time of our CH series temperature controller can be as fast as 500ms. The faster the sampling time, the more accurate the temperature control.
4-digit Digital Tube Display
PV value is displayed in red, SV value is displayed in green, customers can set the maximum heating temperature to 9999 degrees Celsius.
Manufactured In China
All of our CH PID temperature controllers are manufactured and shipped from China, with high quality and competitive prices, ensuring worry-free use.

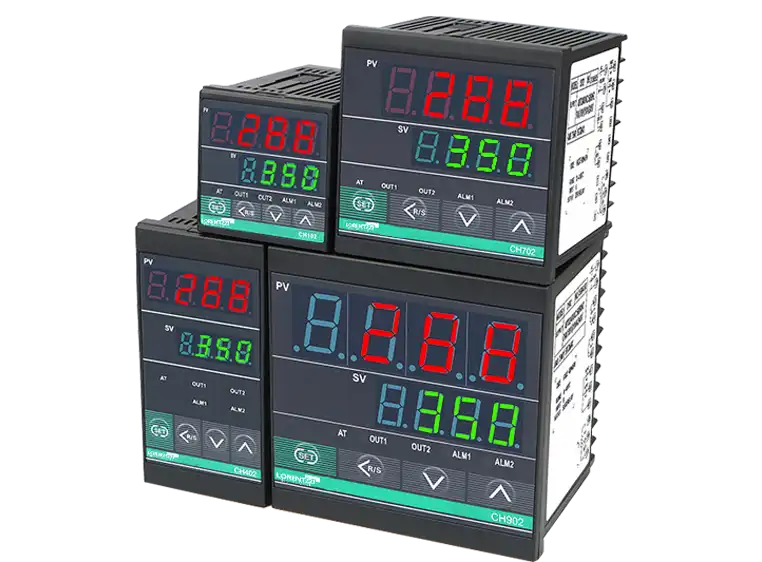

Our CH series PID temperature controller products
-
1/4 Din Temperature Controller CH902
PID Temperature Controller -
1 8 DIN Temperature Controller CH502
PID Temperature Controller -
CH702 Temperature Controller
PID Temperature Controller -
CH402 Temperature Controller
PID Temperature Controller -
CH102 Temperature Controller
PID Temperature Controller
Parameters
| Item | Description |
|---|---|
|
Product Name |
Lorentzzi CH series PID temperature controller |
|
Panel Sizes |
1/16 DIN(48*48 mm), 1/8 DIN vertical (48*96 mm), 72*72 mm , 1/4 DIN(96*96 mm), and 1/8 DIN horizontal(96*48 mm) |
|
Working Voltage |
100-240 VAC or 24 VDC |
|
Input Temperature Sensor |
Themocouple, RTD, Analog 4-20 mA or 0-5 VDC |
|
Display |
PV(Present Value), SV(Seting Value), Output(Output 1, Output 2), Alarm(Alarm 1, Alarm 2), AT(Auto-tuning) |
|
Control Method |
PID(Auto-tuning available), ON/OFF |
|
Accuracy |
0.5%FS |
|
Resolution |
14 bits |
|
Sampling Time |
500 ms |
|
Setting Range |
Proportional Band(P): 0-full range, IntegrationTime(I): 0-3600Sec, Derivative Time(D): 0-3600Sec, Proportional Period: 1-100Sec |
|
Output |
SSR(20mA@12VDC), Relay(3A@250VAC), Analog(4-20 mA, 0-10 mA, 1-5VDC, 0-5VDC), SCR(zero-crossing or phase-shift control) |
|
Alarm Output |
3A@250VAC |
|
Insulation Resistance |
More than 50 MΩ(500VDC) |
|
Insulation Strength |
1500 VAC/Minute |
|
Power Consumption |
Less than 10VA |
|
Environmental Temperature and Humidity |
0-50℃, 30-85%RH, no condensation |
|
Net Weight |
CH102: 0.1 kgs, CH402, CH502, CH702: 0.2 kgs, CH902: 0.3 kgs |

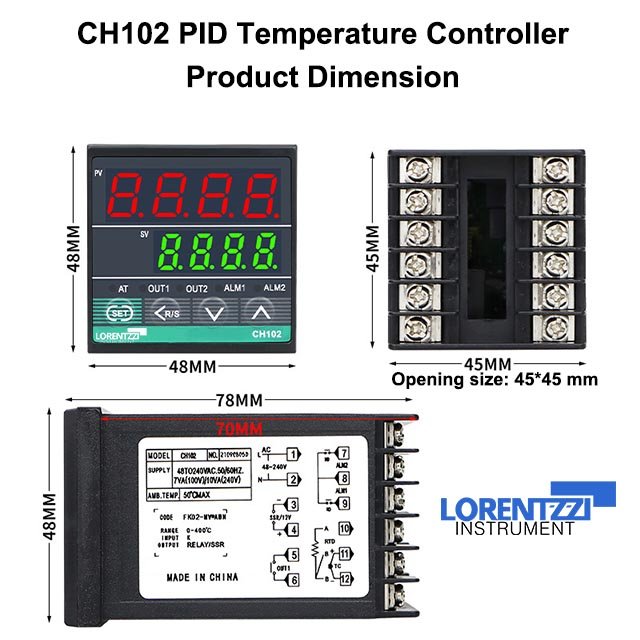

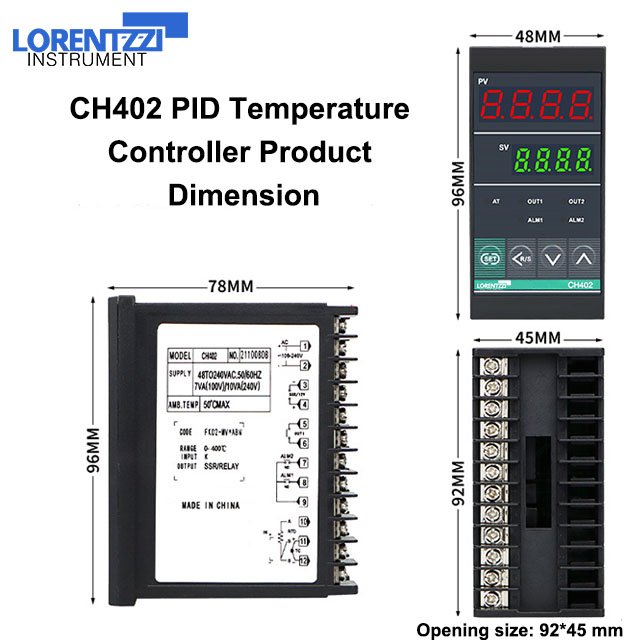

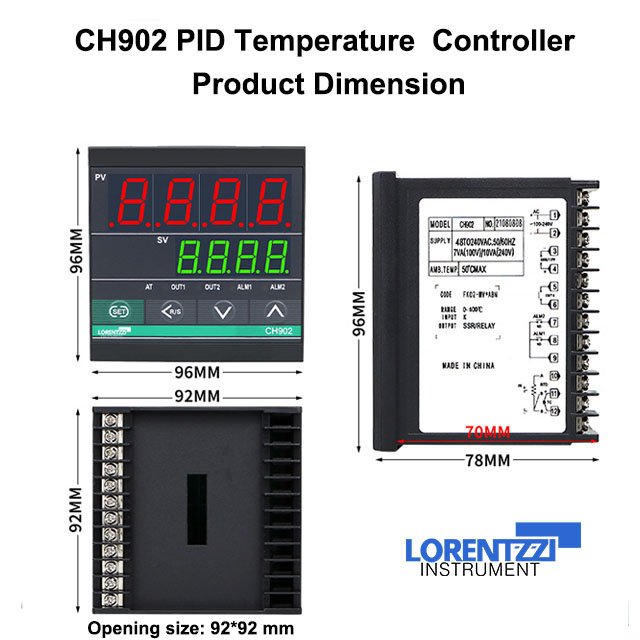

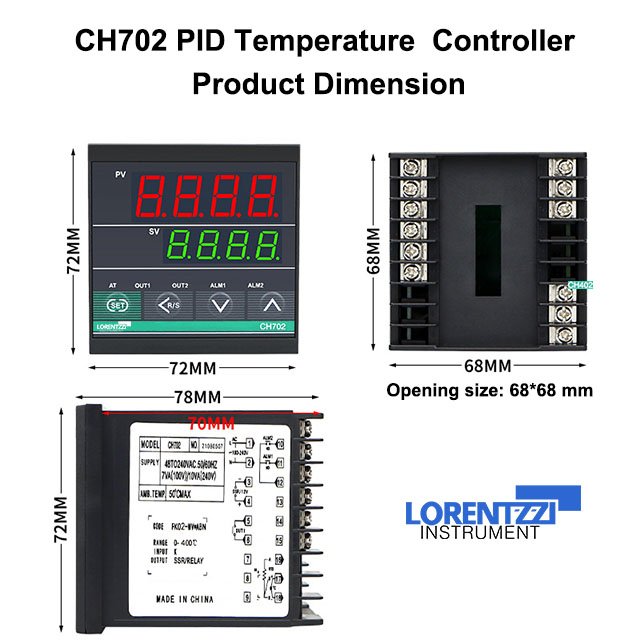

Lorentzzi CH series temperature controller dimensions
Lorentzzi® CH series temperature controllers have 5 different panel sizes, the following figure shows their product dimensions.

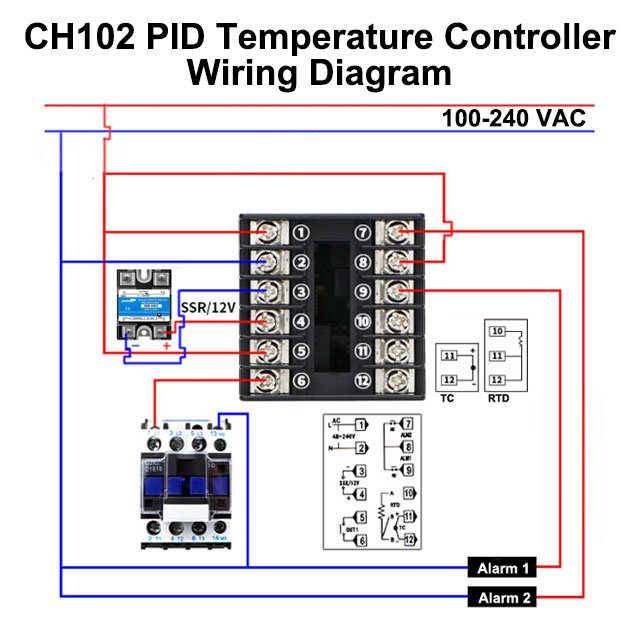

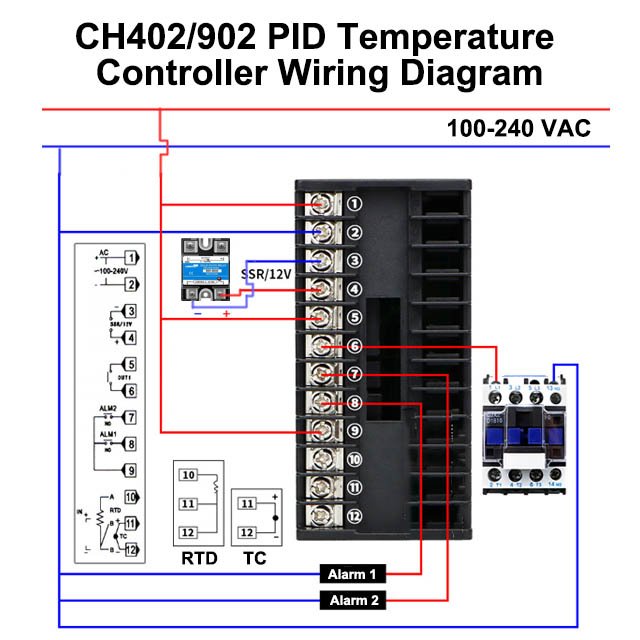

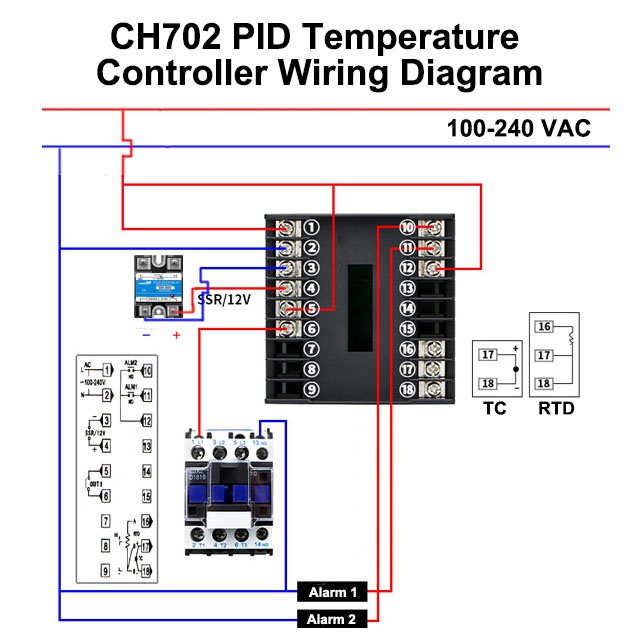

Wring diagram
Applications
Coffee roasting equipment
Manages rapid temperature changes during roasting to achieve consistent roast levels. Real-time adjustments prevent burning or under-roasting, preserving aroma and flavor.
Beer brewing equipment
Controls fermentation temperatures to optimize yeast activity and flavor profiles. Monitors and adjusts heat during mashing, boiling, and conditioning stages to prevent off-flavors.
Printing equipment
Stabilizes temperature in processes like ink drying or toner fusing. Prevents overheating or underheating that could cause smudging or misalignment, enhancing print quality.
Injection molding equipment
Ensures precise temperature regulation of plastic resin in barrels, nozzles, and hot runners, reducing defects like warping or incomplete fills and improving part quality.
Plastic bottle manufacturing
Regulates heat in extrusion and blow molding processes to maintain resin viscosity and mold integrity. Prevents defects such as uneven wall thickness.
Oven and furnace temperature control
Maintains uniform distribution heat in industrial ovens, kilns, or furnaces, dynamically adjusting heating elements to compensate for load changes or heat loss.
What is your application?
Frequently Asked Questions
What Does The CH102, CH402, CH502, CH702 and CH902 Mean?
CH series PID temperature controller is our company’s most popular product in the market. Different models correspond to different panel sizes, which are CH102: 48*48 mm, CH402: 48*96 mm, CH502: 96*48 mm, CH702: 72*72 mm, and CH902: 96*96 mm respectively.
Application of CH Temperature Controller
These PID temperature controllers are mainly used to control the temperature of heating element, it is widely used in food machines, plastic production equipment, hospital high temperature disinfection, laboratory and so on.
What Is The Output Of CH Series Pid Temperature Controller?
Our CH series PID temperature controller default output can be SSR+relay, 4-20 mA or 1-5 VDC, if the output is SSR, you can use it with our DC/AC solid state, if the output is relay, you can use it with our AC/AC solid state relay or AC contactor.
How Do These Temperature Controllers Work?
These PID temperature controllers work based on the PID algorithm, which can keep the temperature at a stable temperature without fluctuations. It is a mature control technology.
What Are The Prices Of them?
These temperature controllers of ours are of high quality, generally our CH series temperature controller price is less than US$10.0.
Can Your Company Provide ODM Or OEM Service For Me?
Yes, we accept ODM and OEM services, and do you want to know the differences between the ODM and OEM? Read this article:ODM Vs OEM: What Is The Difference?
The User Manual Of CH Series PID Temperature Controller
Please download it by this link: Lorentzzi CH series PID Temperature Controller User Manual
What Are The Differences Between Our REX And CH Series PID Temperature Controllers?
The functions and control technology of these two series of PID temperature controllers are the same, the difference is the appearance and length. The CH series is more attractive than our REX series PID temperature controller and is shorter in length(CH series housing length 78 mm, REX: 110 mm).
What Are The Differences Between Your CH Series And TCN4 Series Temperature Controllers?
Our CH series PID temperature controllers are low cost and enomonical products, which are very popular and well-known in the market.
While our TCN4 PID temperature controller is our newly developed product, which has a clear and bigger digital display, and the inner program is very user-friendly, also it has a fast 100 ms sampling time, which can realize more accurate temperature control.
