Introduction:

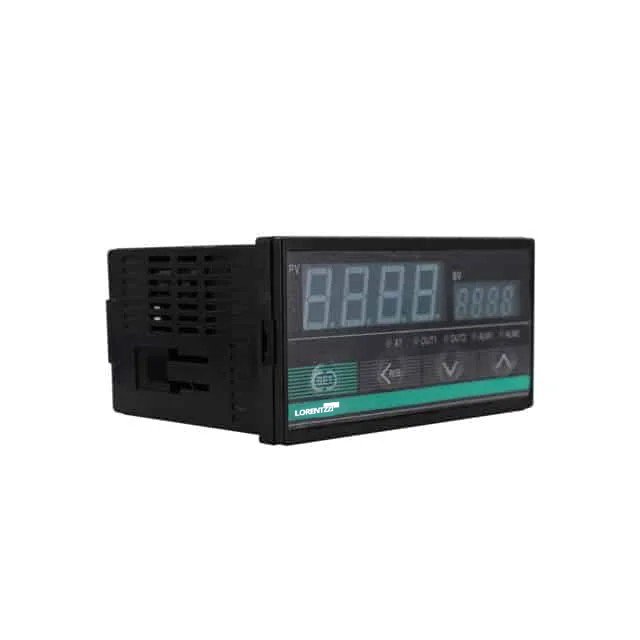

- Our CH502 is an affordable standard 1 8 DIN pid temperature controller, the front panel size is 96*48mm, very easy to install in the front of the distribution box.
- The input is universal and can be a thermocouple, RTD, or customized as a 4-20mA, 0-5VDC analog input signal. You can decide which input to use by adjusting the internal program.
- The output can be an SSR drive (can be used with DC control AC solid state relays to control temperature), a relay (can be used with an intermediate relay or AC contactor to control temperature), or a 4-20mA or 0-5VDC analog output (can be used with our SCR power regulator or SSVR to control heating elements)
- Soft buttons make it easy to operate and set the desired temperature, and the internal components are fully tested by our quality control department and are backed by a 2-year warranty.
- We, Lorentzzi®, are one of the leading CH502 temperature controller manufacturers and exporters in China. Our PID temperature controllers support OEM customization and ODM services.

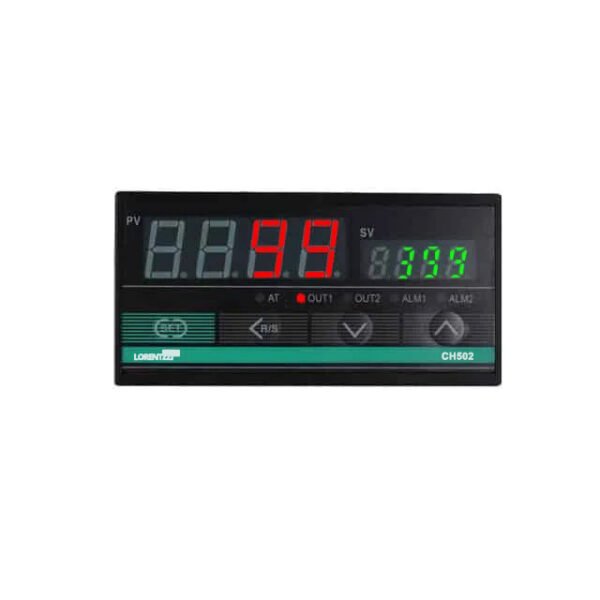

- Our CH502 1 8 DIN Temperature Controller Digital Display is a very easy to read nixie tube so you can clearly see the current temperature and set temperature at a glance.
- Want to get the distributor price of this 96*48mm digital pid temperature controller? Please fill in the form at the bottom and contact us now!
Specifications:
Model | CH502 |
Panel size | 96*48mm |
Accuracy | ±0.5%F.S±1℃ |
Working voltage | 220VAC, 50/60 Hz; 110VAC, 50/60Hz; 24VDC/AC |
Input | Thermocouple: K, J, R, S, B, E, N, T; RTD: Pt100, Cu50; Voltage: 0-5V, 1-5V; Current: 0-20mA, 4-20mA ; |
Output type | Relay, SSR, 4-20mA, 1-5VDC |
Power consumption | Less than 5W |
Control method | PID, or ON/OFF |
Setting method | Push button |
Indicator | 8-segment 4-digital display and LED tube |
Alarm | Alarm form: N: No alarm A: Deviation low B: Deviation high C: Deviation high/low |
Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
Operating humidity | 30-85% RH max, non-condensing |
