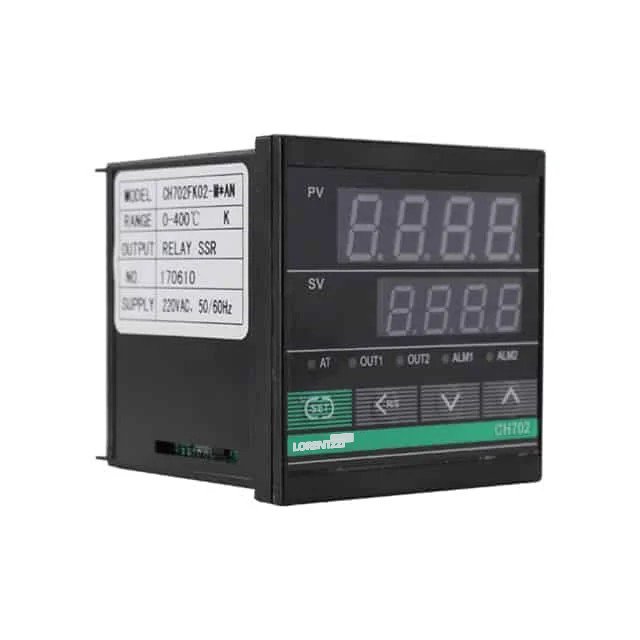

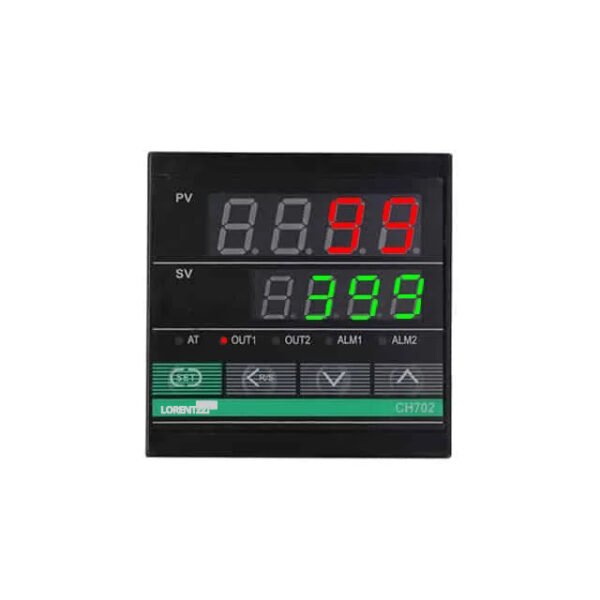

CH702 Temperature Controller

Introduction:

• Our CH702 temperature controller is a 72*72mm(9/64 DIN) panel size digital PID controller, which is widely used in various heating control equipment, such as injection molding machines, bottle blowing machines, medical drying and disinfection equipment, hot stamping machines, etc.
• The CH702 temperature controller uses the most advanced PID algorithm to achieve precise and stable temperature control of the heater.
• The output of this temperature controller can be SSR drive + relay or 4-20mA, 0-5VDC. The SSR drive needs to be used with our DC/AC solid-state relay, and the relay output needs to be used with our AC contactor, 4-20mA or 0-5VDC output should be used with our SSVRs or SCR power regulators.
• The input can be K, J or other thermocouples, PT100 or Cu50 resistance temperature detectors, a variety of inputs for you to choose.
• It also features pid auto-tuning, which means you don’t need to manually adjust each P, I, and D parameter.
• Its sampling time is as fast as 500 ms, so it can control the temperature more precisely. If you want a faster 100 ms sampling time, please have a look at our TCN4 industrial temperature controller.
• Would you like to know the latest price of this PID controller with 72*72mm panel dimension? Fill in the form at the bottom to get our quotation.

Specifications:
