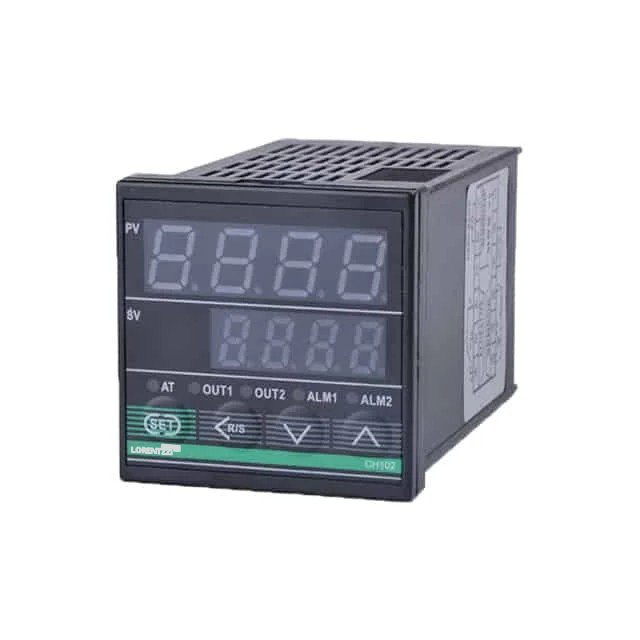

CH102 Temperature Controller Introduction:
- CH102 temperature controller(1/16 DIN, panel size 48*48mm) is an economical, universal input, single loop digital PID temperature controller.
- Also called temperature heater controller, thermometer controller, thermo controller, temperature indicator.
- Input is universal, can be thermocouple or RTD(Resistance Temperature Detector), and output can be DC/AC SSR(Solid State Relay), relay or 4-20mA optional.
- This pid temperature controller is widely used in thermal treatment devices, food and beverage industry, bottle blowing machine, mould machine etc..

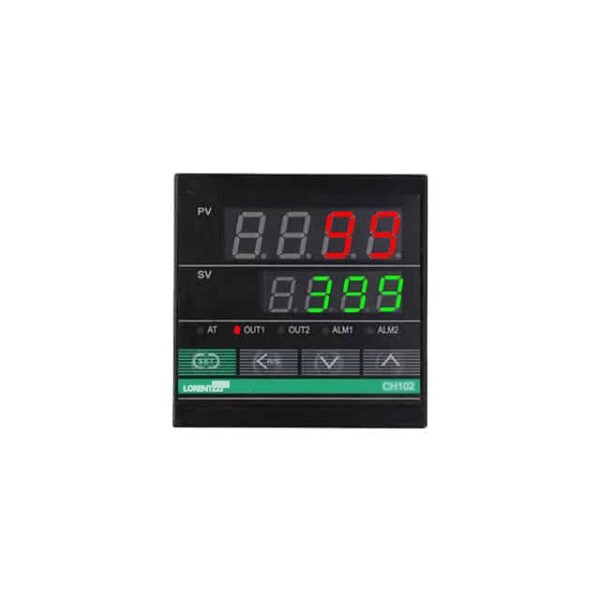

- Two indication windows, the bottom one is the PV(Present Value:present temperature), the below is SV(Setting Value: setting temperature).

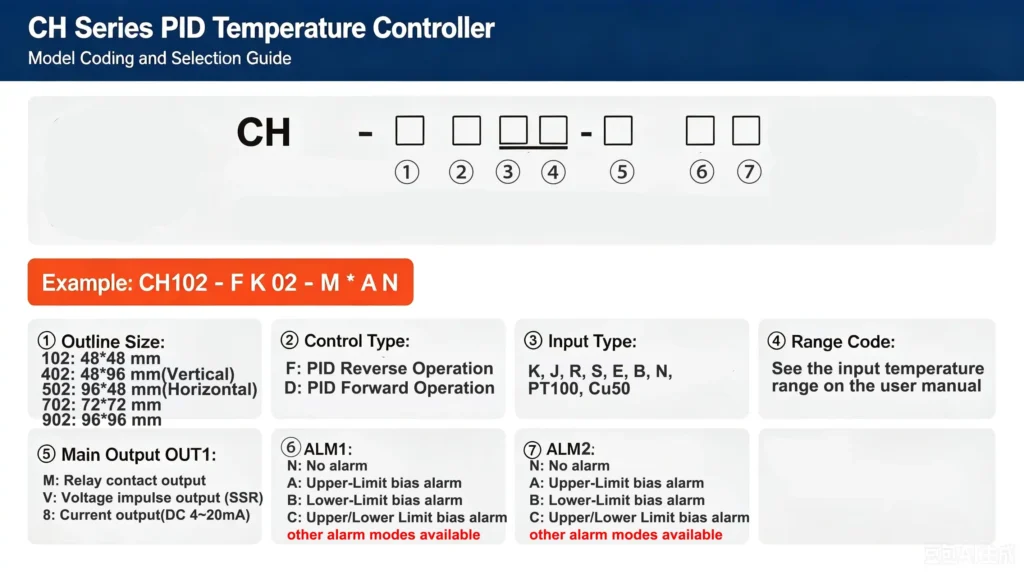

- Order code explanation for example: CH102-FK02-M*AN, 48mm*48mm panel size, default K thermocouple input range 0-400℃, relay output, 1*deviation high alarm.
Specifications:
| Model | CH102 |
| Panel size | 48*48mm |
| Accuracy | ±0.5%F.S±1℃ |
| Working voltage | 220VAC, 50/60 Hz; 110VAC, 50/60Hz |
| Input | Thermocouple: K, J, R, S, B, E, N, T; RTD: Pt100, Cu50; Voltage: 0-5V, 1-5V; Current: 0-20mA, 4-20mA ; |
| Output type | Relay, SSR, 4-20mA, 1-5VDC |
| Power consumption | Less than 5W |
| Control method | PID, or ON/OFF |
| Setting method | Push button |
| Indicator | 8-segment 4-digital display and LED tube |
| Alarm | Alarm form: N: No alarm A: Deviation low B: Deviation high C: Deviation high/low |
| Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity | 30-85% RH max, non-condensing |
