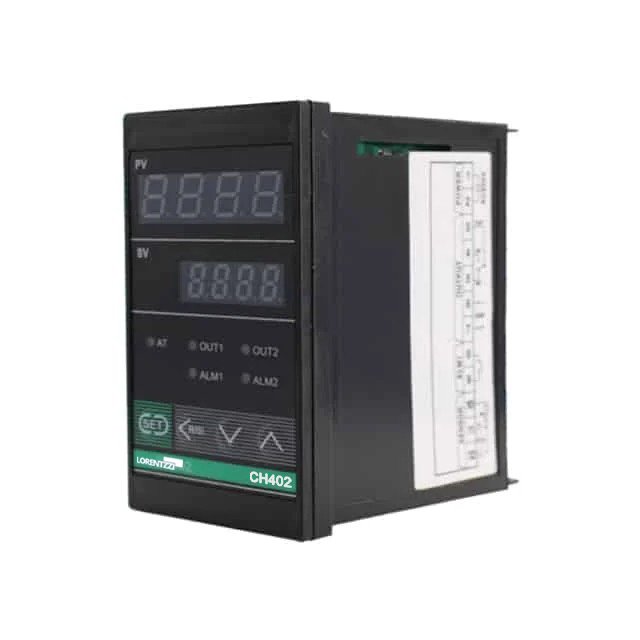

CH402 Temperature Controller Introduction:
- CH402 temperature controller (48*96mm width*height) is a universal input (various temperature sensors optional) PID digital controller.
- It is a cost-efficiency, low price pid temperature controller, working on wide power source from 85-265VAC or 24VDC.

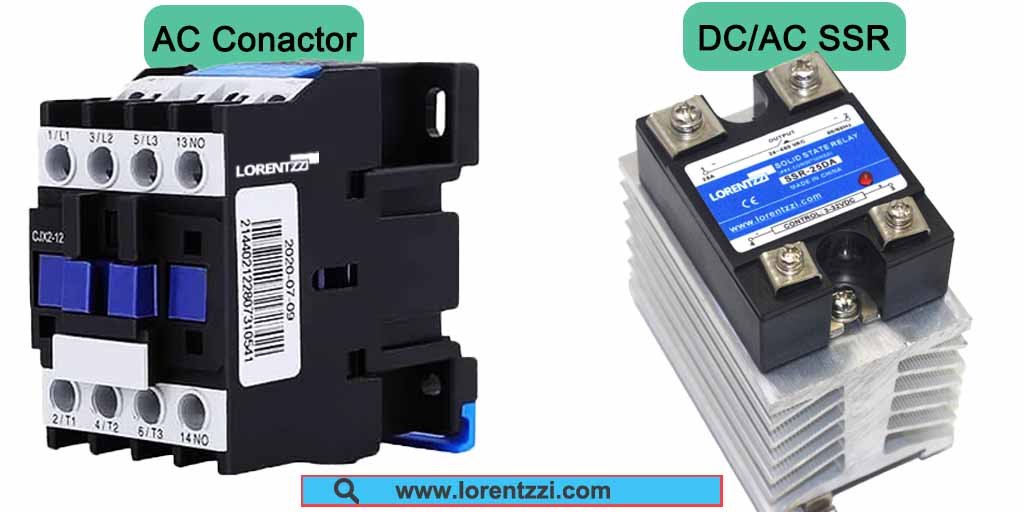

- Equipped with relay(or AC contactor) and SSR drive output at the same time, the output is field selectable, it is output field selectable temperature controller.
- The shell is made by high quality&price competitive ABS, this material is flame retardant, it is strong and not easy to corrode.
- Used for electric oven, electric heater, plastic injection, extruder machines etc., also, it can be used as temperature indicator to show detected materials temperature.
- Order code explanation for instance: CH402-FK02-M*AN, 48*96mm panel size, input K thermocouple range 0-400℃, relay output, 1 deviation high alarm.
Specifications:
| Model | CH402 |
| Panel size | 48*96mm |
| Accuracy | ±0.5%F.S±1℃ |
| Working voltage | 220VAC, 50/60 Hz; 110VAC, 50/60Hz; 24VDC/AC |
| Input | Thermocouple: K, J, R, S, B, E, N, T; RTD: Pt100, Cu50; Voltage: 0-5V, 1-5V; Current: 0-20mA, 4-20mA ; |
| Output type | Relay, SSR, 4-20mA, 1-5VDC |
| Power consumption | Less than 5W |
| Control method | PID, or ON/OFF |
| Setting method | Push button |

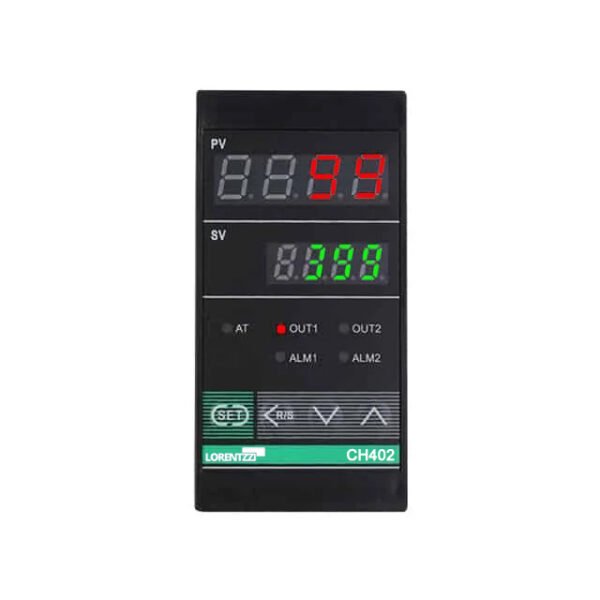

| Indicator | 8-segment 4-digital display and LED tube |
| Alarm | Alarm form: N: No alarm A: Deviation low B: Deviation high C: Deviation high/low |
| Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity | 30-85% RH max, non-condensing |
