Introduction:
-

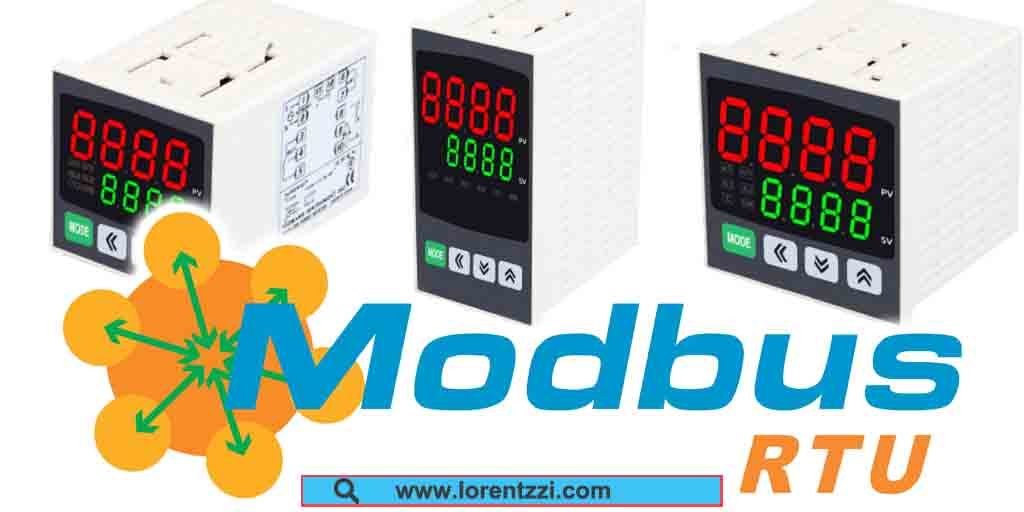

- Our RS485 temperature controller is a good solution for remote monitoring and control of temperature control systems, and you can monitor it through our customized Modbus RTU protocol.

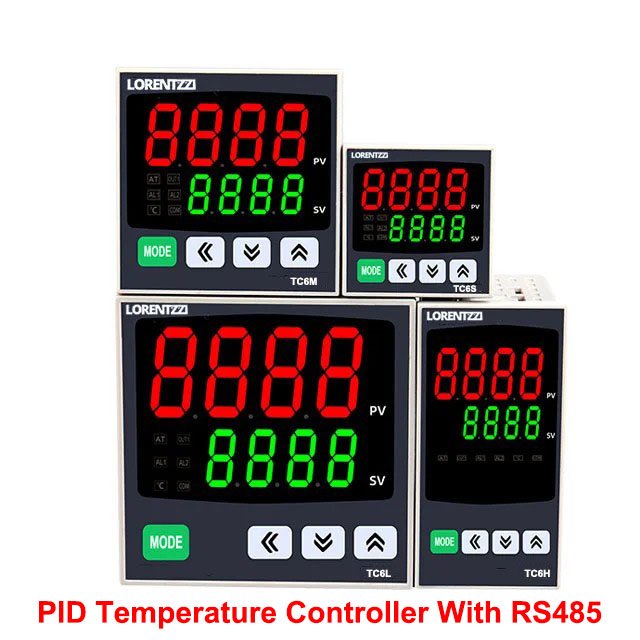

- Our this type of PID temperature controller with RS485 communication function has 5 product sizes, namely 48 * 48mm, 48 * 96mm (length * width), 72 * 72mm, 96 * 48mm (length * width) and 96 * 96mm.
- For the 1/16 DIN(48 * 48mm) one, the output can be only SSR, relay output or analog output(4-20mA, 0-5VDC, 0-10VDC), but for other sizes, the output can be SSR+relay or analog output, you can choose the output according to your requirement easily.
- Compared with common PID temperature controllers (such as our REX-C series or TCN4 series instruments), RS485 temperature controllers have the advantages of remote control and are easy to integrate with other modules such as PLC, HMI or other components with communication functions.
- More knowledge of this controller, try to read our this article: Temperature Controller With RS485.
- Want to know our RS485 temperature controller prices? Fill out the form at the bottom to contact us now!
Specifications:
Inputs | Thermocouple or RTD |
Indicating unit | ℃ or ℉ |
Control method | PID, simple on/off(bang-bang) |

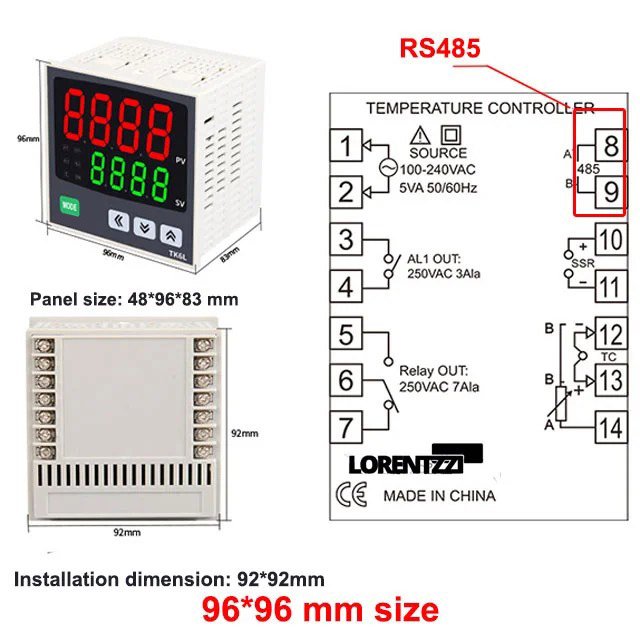

Sizes available | 48*48*83mm, 48*96*83mm, 72*72*83mm, 96*48*83mm, 96*96*83mm |
Display | Two 4-digit, 7 segment, PV red, SV green |
Communication | RS-485 Modbus RTU communication protocol |
Sampling time | 100 ms |
Auto-tuning | Available |
Working voltage | 100-240VAC 50/60Hz or 24VDC |
Output | SSR(12VDC), relay(SPDT, 7A@250 VAC resistive), Analog signal(4-20mA, 0-5VDC) |
Alarm | 1 alarm or 2 alarms(3A@250VAC, resistive) |
Alarm mode | 12 modes to choose from, deviation value alarm or set value alarm |
Electrical lifetime | More than 0.2 million times |
Mechanical lifetime | More than 5 millions times |
Working temperature | -10 to 50℃ |
Storage temperature | -20 to 60℃ |
Warranty | 24 months |
Weight | 200 grams |
Colour | White or other customized colours |
Mounting | Panel mounting using bracket accessories |
