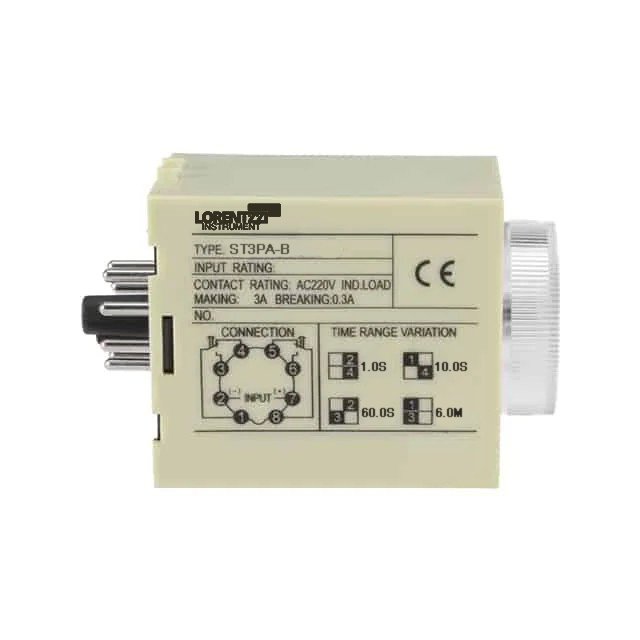

Introduction:

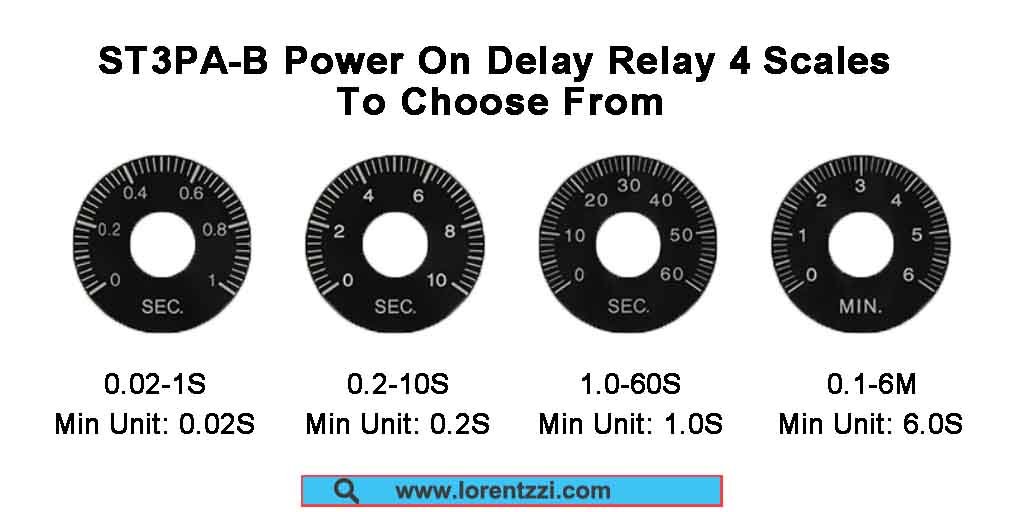

- The ST3PA-B is a power on time delay relay, its delayed time range can be 0-1 seconds, 0-10 seconds, 0-60 seconds and 0-6 minutes.
- A power-on delay relay is a device that starts a device after a certain time delay. For example, if you set the delay time for this ST3PA-B to 60 seconds, once you turn on the power, the load will not start working immediately, but will start after 60 seconds.

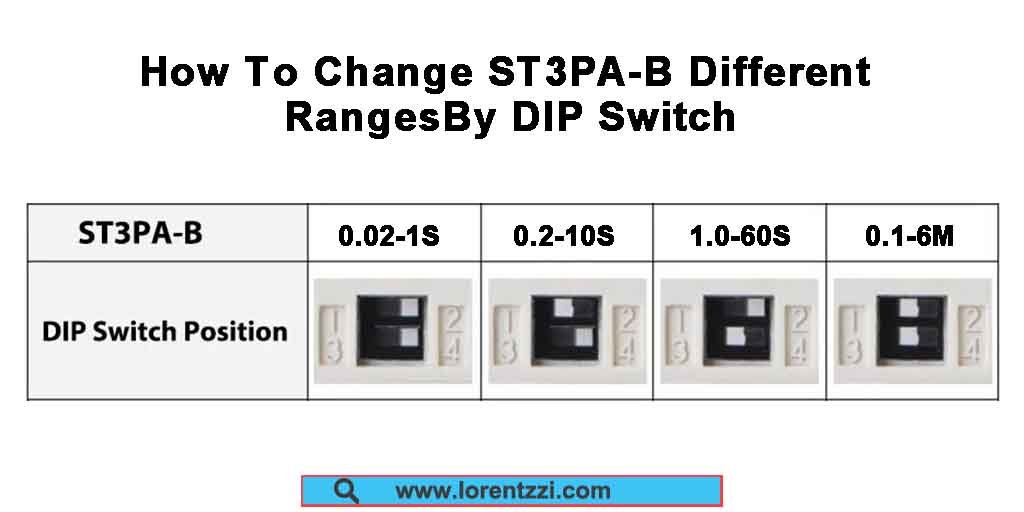

- As mentioned above, there are 4 delay times available, how to adjust? There is a dip switch, if you turn it to 24, its range is 0-1 second, 14 is 0-10 seconds, for more details, please check the table below:
- The SP3PA-B time relay installation method is DIN rail mounting with a base socket, product dimension is 41*55*83mm, if you want a space-saving one, please have a look at our multifunctional time delay relay.
- Another alternative to this product is the H3CR-A8, which has more functions than this simple time delay relay, including time delay relay, cycle on/off, interval, etc.
- Applications of the ST3PA-B include equipment startup sequence control, stage lighting and sound sequence control, and other scenarios.
- Want to buy this time delay relay from us? Fill out the form below to get our instant quote!

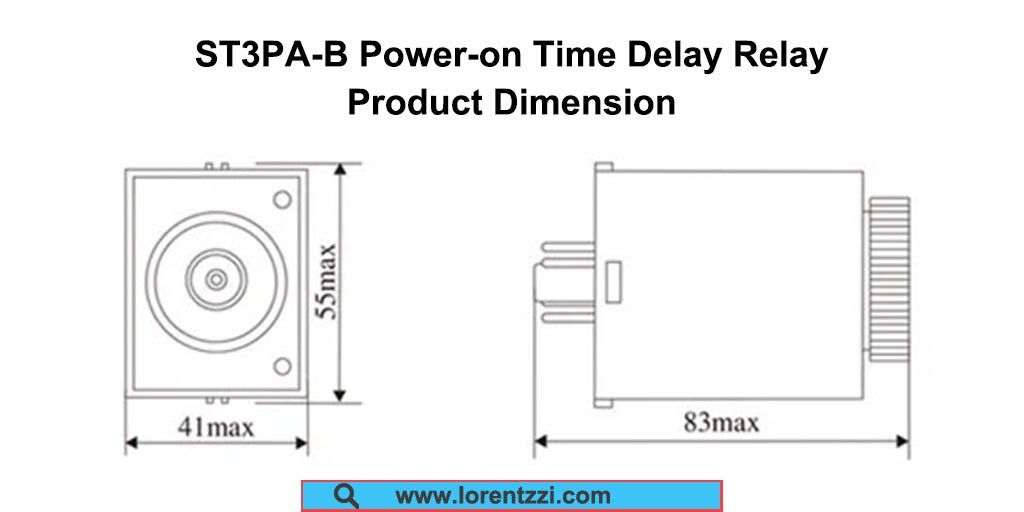

ST3PA-B Product Dimension:
Specifications:
| Model | ST3PA-B |
| Working voltage | 24VDC, 110VAC, 220VAC, 50/60Hz |
| Tolerance | -15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage |
| Power consumption | 3W max |
| Setting method | Knob |
| Indication method | LED |
| External dimensions | 50x40x57.5 mm |
| Contact rating | 3A@250VAC, 5A@28VDC |
| Repeat accuracy | ±0.3%, ±0.05 sec |
| Setting error | ±0.5%, ±0.05 sec |
| Termination | 8 pins |
| Mounting | Panel, din rail |
| Matched socket | PF083A, PF085A, US-08 |
| Mechanical life | 1x10^6 |
| Electrical life | 1x10^5 |
| Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity | 95% RH max, non-condensing |
