SSR-25VA, 25 Amps Potentiometer Control Solid State Voltage Regulator

  1. Manual control solid state voltage regulator
  2. Maximum load current 25 amps,
  3. Specially designed for heater temperature control system,
  4. 2 years long warranty,
  5. Stable quality, easy to use.

Share with friends:

SSR-25VA, 25 Amps Potentiometer Control Solid State Voltage Regulator Introduction:

  • SSR-25VA is a manually controlled solid-state voltage regulator, controlled by a resistor potentiometer.  By increasing or decreasing the potentiometer resistance, the voltage will increase or decrease accordingly.
  • The control part is a 470-560KΩ potentiometer, and the load voltage is 24 to 380VAC.  As mentioned above, the load voltage will increase linearly from 24 to the applied voltage. Or vice versa.
  • The SSR-25VA adjusts its output power through adjusting the output voltage.
  • The maximum 25 amp load current allows it to handle many applications, especially resistive loads such as heaters, heat lamps, and even some motors.  Note that if the load is a heater, it should be less than 3000 watts.

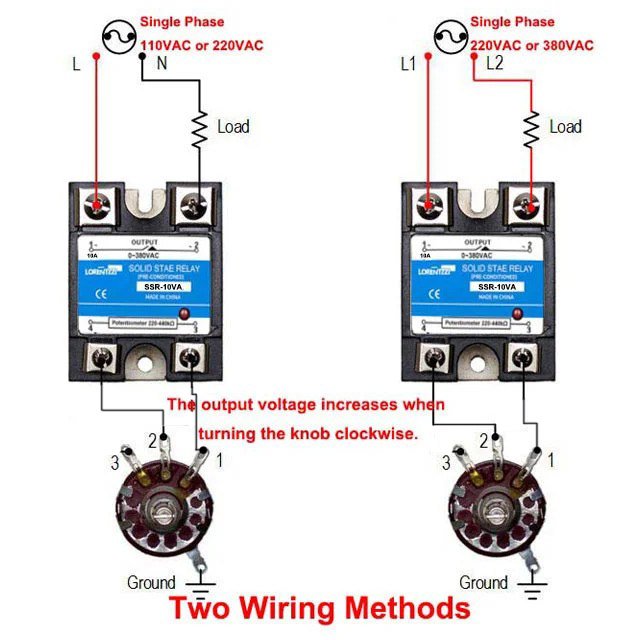

  • The wiring diagram of this potentiometer control solid state voltage regulator is as following:

SSR-25VA, 25 Amps Potentiometer Control Solid State Voltage Regulator Wiring Diagram

  • Application of potentiometer control SSVR: Heater precise temperature control, incandescent lamp brightness adjustment, some types of motor speed control etc.
  • We are Chinese solid state voltage regulator manufacturer with very rich experience, our SSR-25VA product has 2 years warranty and stable quality,
  • Want the latest discounted price or great support for this 25 Amp Single Phase Potentiometer Control Solid State Voltage Regulator? Please fill out the form at the bottom to contact us right now!

Specifications:
