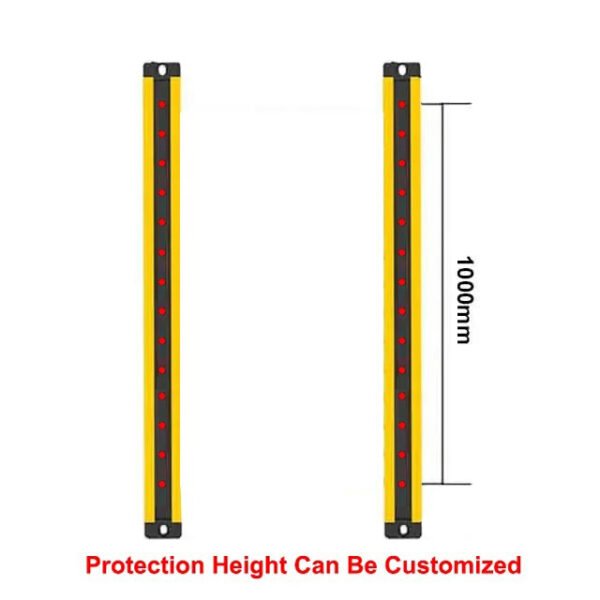

1000 mm Protection Height Safety Light Curtain

Introduction:

• This is our longest protection length safety light curtain sensor, with a protection length of up to 1000 mm. The sensor mainly consists of two parts: a transmitter and a receiver. The transmitter sends a group of infrared light to the receiver to form a light array. When any light on the light curtain is blocked, it will trigger the output, thereby controlling the machine to stop running or achieve certain operations.

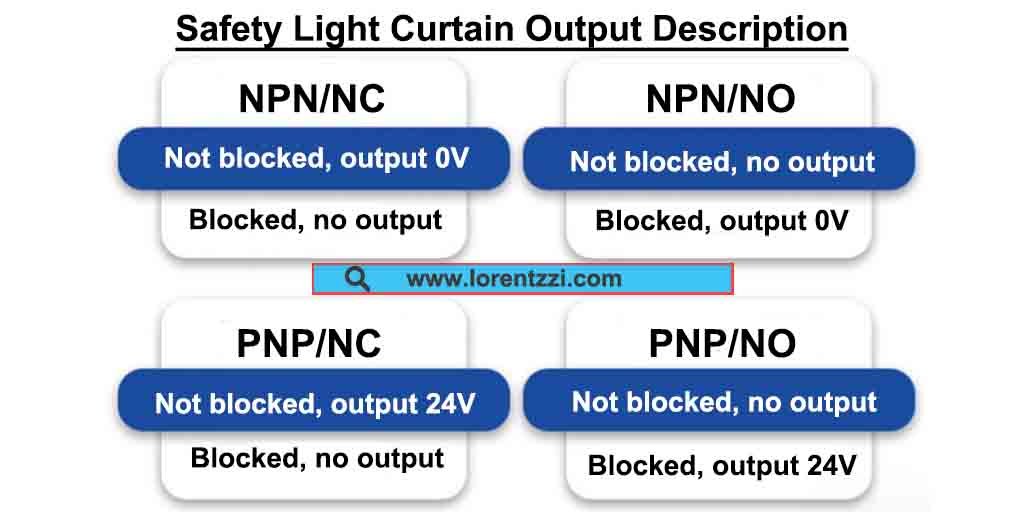

• The outputs include single OSSD PNP or NPN, NC output or relay output, as well as dual OSSD output. Dual outputs can take the safety protection to a higher level.
• It has a self-diagnosis function that can detect potential risks that may exist in the sensor itself, thereby protecting operators more safely.
• With a thickness of 2.0 mm and a high-quality aluminum housing, this sensor is capable of withstanding collisions and providing reliable protection. Additionally, the thick aluminum housing ensures safe shipment.
• This 1000 mm height safety sensor is available with an optical axis distance of 10 mm, 20 mm or 40 mm. The 10 mm distance is suitable for finger protection, the 20 mm distance is suitable for hand protection and the 40 mm distance is suitable for arm protection.

• Want to get our 1000 mm protection height optical safety light curtain latest price? Please fill out the form at the bottom to contact us now!

Specifications:
