Introduction:
- This is our H model heat sink with 110 mm and 150 mm length, which are designed for high current single phase or three phase solid state relays heat dissipation, the heat sink can be equipped with 1 cooling fan.

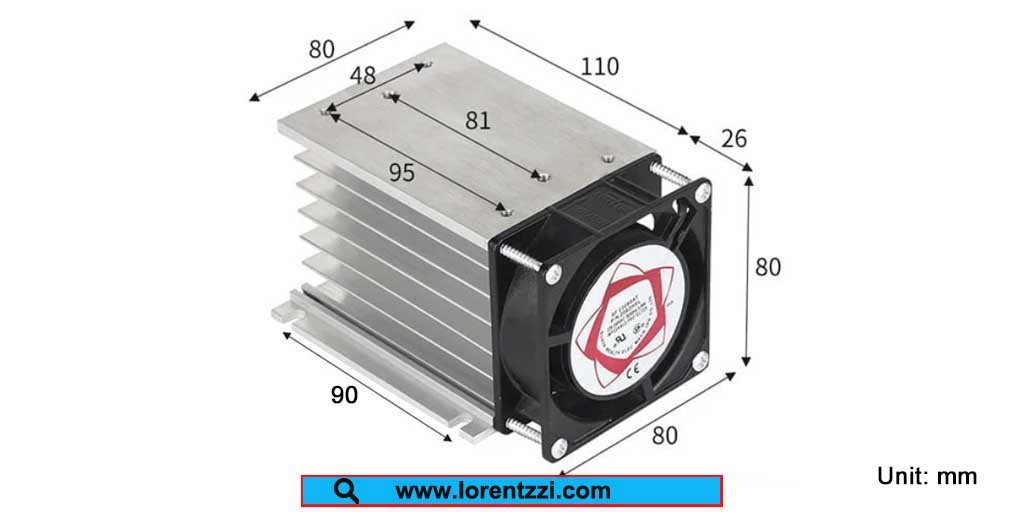

- Among them, a 110 mm length heatsink with a cooling fan can be used for single-phase SSRs with a current less than 120 amperes or for three-phase SSRs with a current less than 60 amperes.

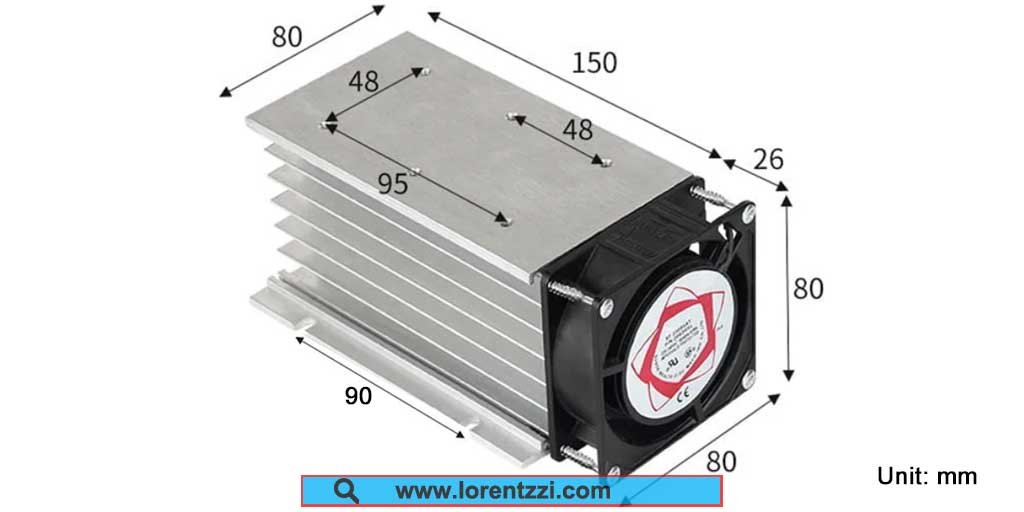

- The 150 mm heatsink with one cooling fan can be used for three phase SSR current less than 80 amps.
- During long-term operation, SSR will generate a lot of heat. If this heat cannot be effectively dissipated, the SSR will be easily damaged. By using our heat sink and cooling fan, the service life of SSR can be greatly extended.
- Our heatsink with cooling fan uses good quality raw aluminum to produce, and specially designed for SSR usage.
- If you want to know our latest price for this heat radiator with cooling fan, please fill out the form at the bottom to contact us!
Specifications:
| Model | H-110, H-150 |
| Shape | H shape |
| Cooling fan | Yes, with 1 cooling fan |
| Product dimension | 136*80*80 mm, 176*80*80 mm |
| Suitable SSR | Single phase SSRs current less than 120 A, three phase SSRs less than 80 A |
| Colour | Original silver |
| H-110 with 1 cooling fan | Three phase SSR ≤60 A, single phase SSR≤120 A |
| H-150 with 1 cooling fan | Three phase SSR ≤80 A, single phase SSR≤120 A |
