Introduction:
- The product here is our W-70 model 70 mm length heat sink, designed for single phase SSR currents less than 40 amps, for example it can be used with our SSR-40DA, SSR-25DA, etc.
- Compared with our DIN rail type D-74 model radiator, the mounting way of this radiator is screw mounting, and the price of this radiator is much cheaper than DIN rail type radiator.

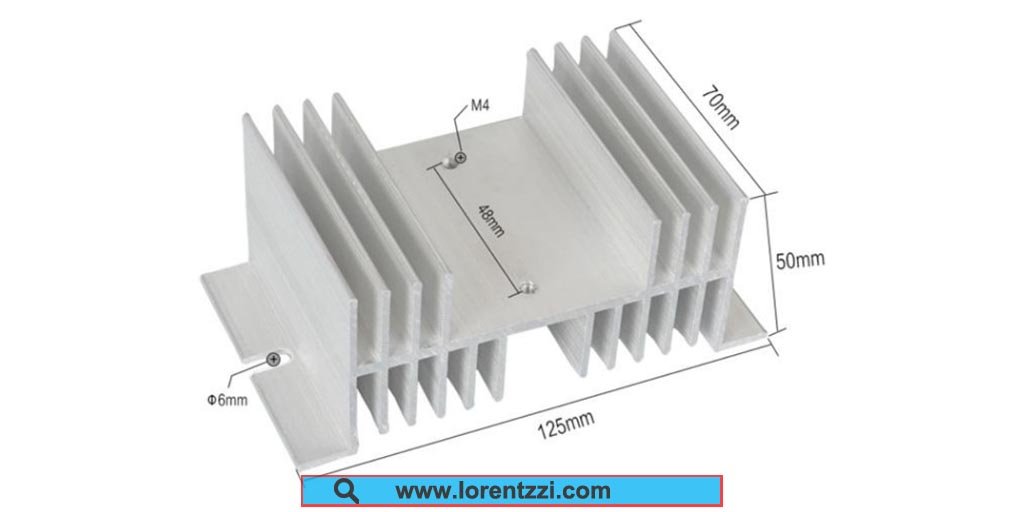

- You can see our 40A single phase SSR heatsink product dimensions below:
- Only fixing the SSR on this heat radiator is not enough, please do not forget to put a thermo pad or thermal grease between the SSR and this heat radiator.
- Our 40A single phase SSR heatsink is only produced with high quality raw aluminum material, ensuring it has good performance in heat dissipation.
- If you want to get our latest price for this single phase SSR heatsink, please fill out the form at the bottom to contact us!
Specifications:
| Model | W-70 |
| Shape | W shape |
| Cooling fan installation | Not available |
| Product dimension | 125*70*50 mm( L*W*H ) |
| Suitable SSR | ≤40A single phase SSR |
| Colour | Original silver |
