K-type Thermocouple, 0-400℃ Range

K-type Thermocouple Introduction:

• Lorentzzi® K-type thermocouples are the most commonly used temperature sensors in heating temperature control systems. Its temperature measurement range is 0-400℃ (32-752℉), which can meet the temperature detection needs in most occasions.
• This thermocouple can be used with our PID temperature controllers and solid state relays to achieve precise control of temperature.

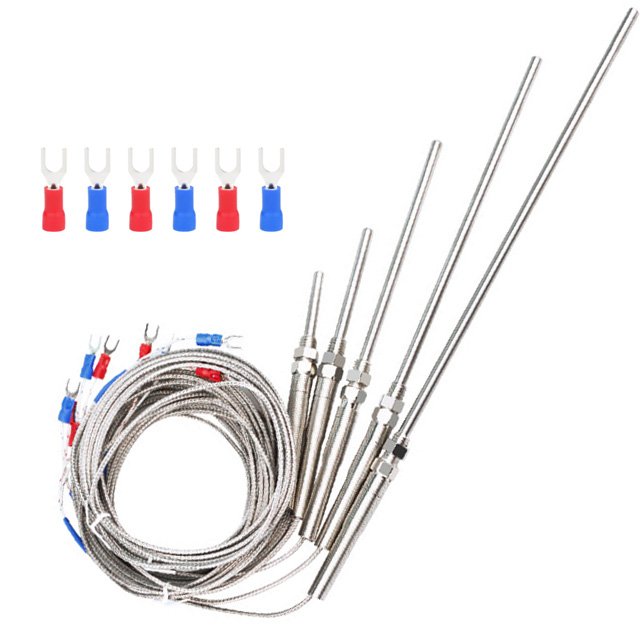

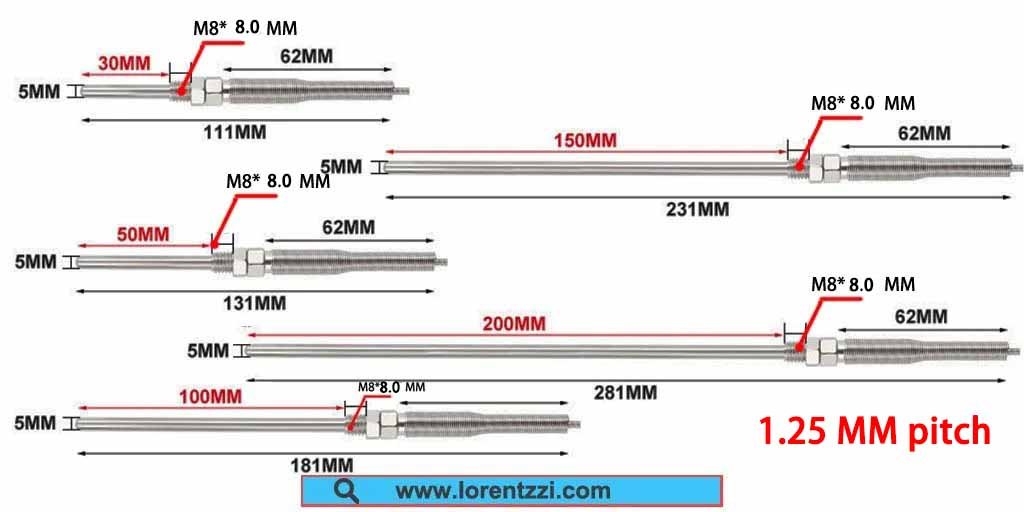

• The diameter of our K-type thermocouple detection tube is 5.0 mm, and the mounting screw is M8 thread. There are 5 sizes to choose from, as shown in the figure below:

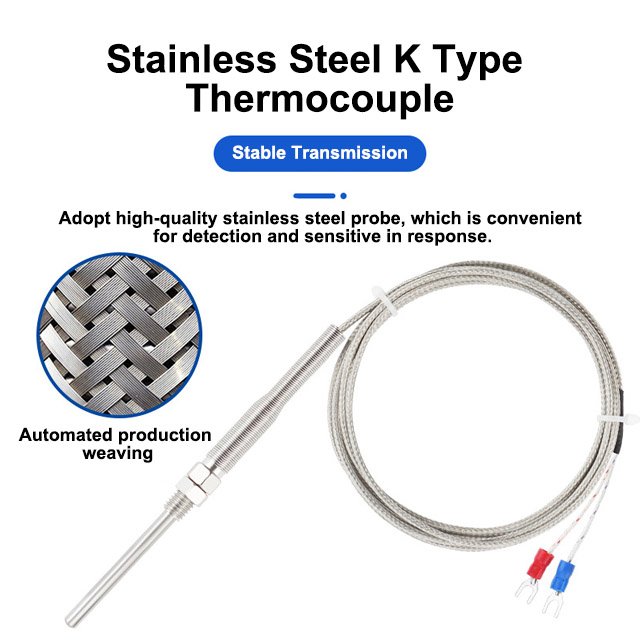

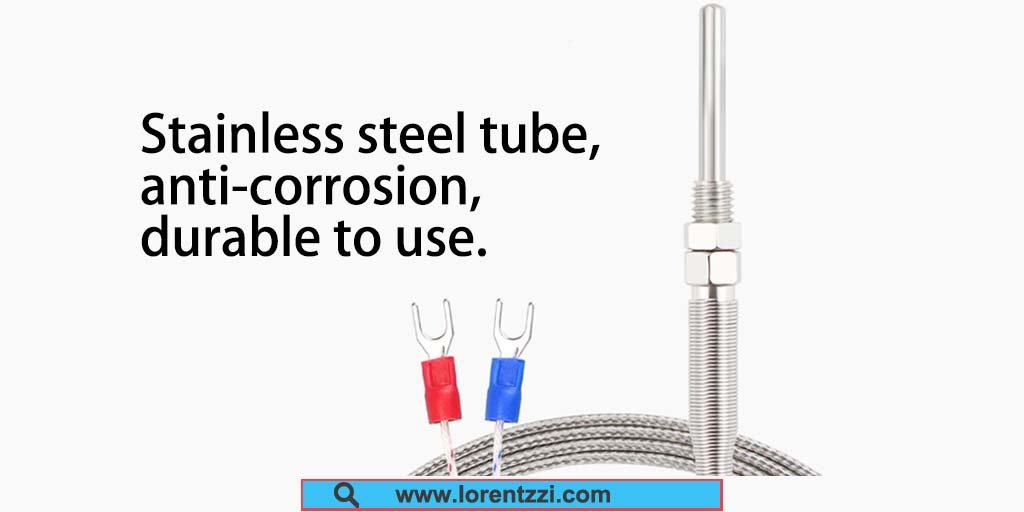

• The shell of the detection tube is made of stainless steel and can be used for water or other fluid temperature detection without corrosion.

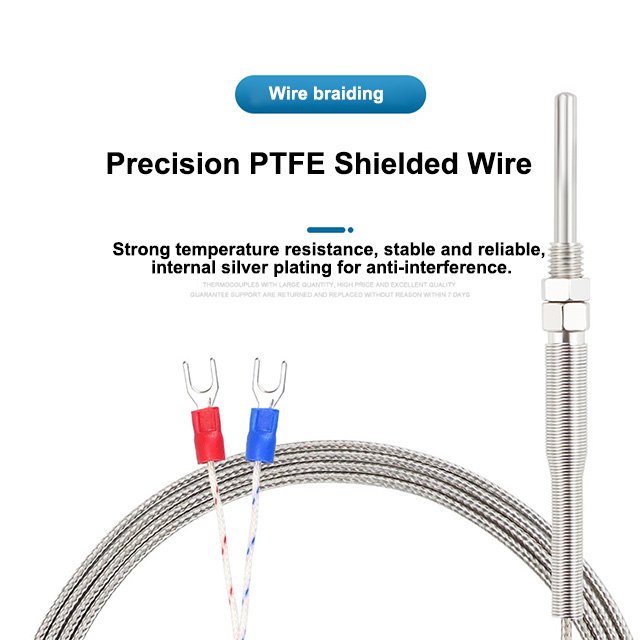

• Our K-type thermocouple wire sleeves are made of transparent PTFE, default cable length is 1 meters, this length can be customized to maximum 5 meters, if you want longer cable, please contact us for customization.
• Lorentzzi thermocouples are suitable for various scenarios including: machine tool equipment, heating equipment, plastic machinery, boiler equipment, temperature control equipment, automation and other places.
• If you would like the latest price for this thermocouple, please fill out the form at the bottom to receive a quote.

How to choose the right type K thermocouple?

There are 6 steps to selecting the right type K thermocouple.

1. Understanding the measurement temperature range: You need to know the temperature range you want to measure. Typically, a type K thermocouple has a measurement temperature range of -270°C to 1260°C. If you require more precise temperature measurements, you can try using a resistance temperature detector (RTD), such as the PT100 or PT1000. Generally, Type K thermocouples are sufficient for most applications.
2. Confirm the shape of the temperature probe: Type K thermocouples can be divided into tubular, threaded, and ring types. Check your equipment to see which type is more suitable for use.
3. Determine probe parameters: For probe type, ensure that tube length and diameter meet usage requirements; for ring probes, ensure that ring diameter is suitable for fixing; for threaded probes, ensure that tooth pitch and thread length are suitable for use.
4. Determining cable length: Cable length is another important factor to consider. A cable that is too short will cause many problems. If the cable length needs to be extended, it must be a temperature-compensated type. Using a regular cable will affect the temperature measurement effect.、
5. Terminal blocks: Check if terminal blocks are needed. Thermocouples with the correct fork-shaped terminals can speed up installation and make them easier for users to use.
6. Contact us now if you still have questions about choosing the right thermocouples.
