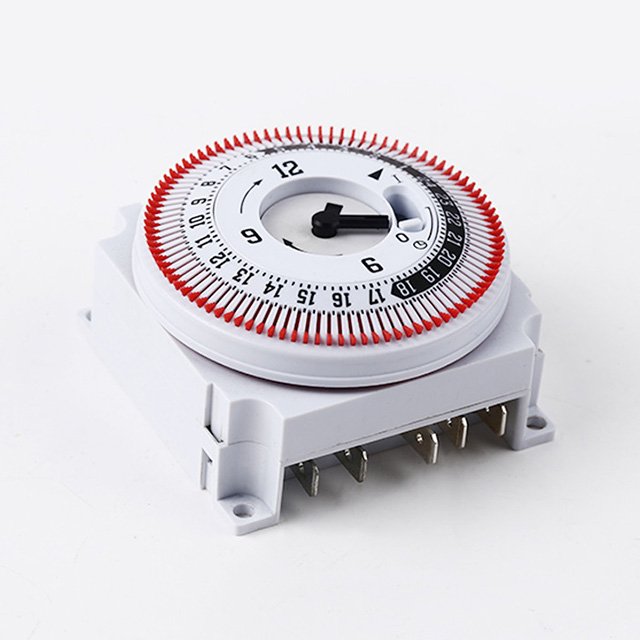

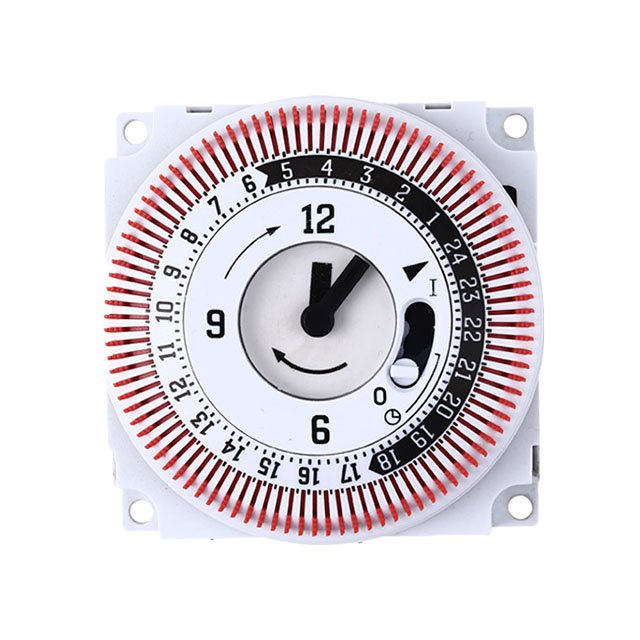

TM1S/TM1Q Electromechanical Timer Switch

Introduction:

Lorentzzi® TM1S/TM1Q is a daily cycle electromechanical timer switch, widely used in HVAC systems, refrigeration systems, security systems, circulation pumps, spa equipment, etc.
The TM1S product is black, while the TM1Q product is red. They have the same function, only the color is different.

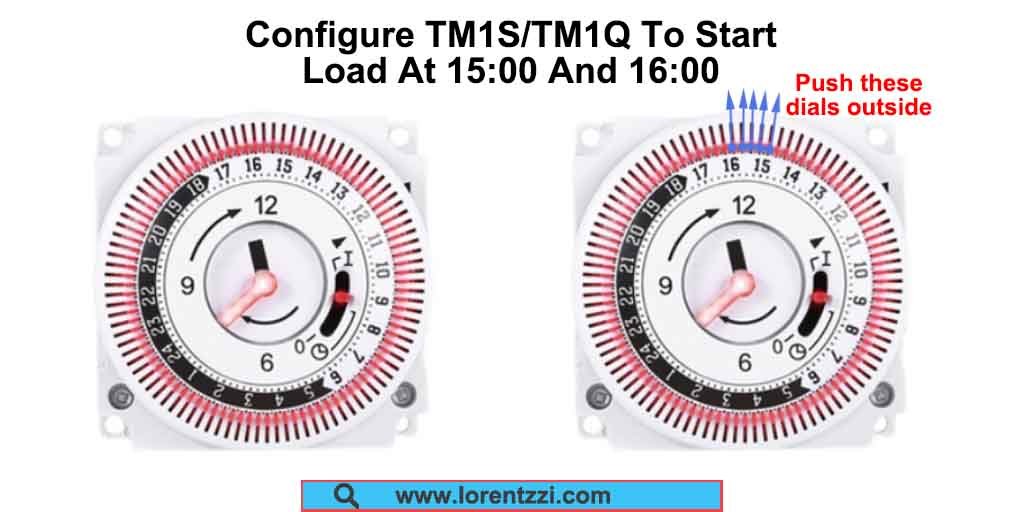

Its working principle is very simple. For example, if you want to turn on the load between 15:00 and 16:00, first set the current time, then push out the knob between 15:00 and 16:00, and it will turn on the load according to the time you set.

It can be set to power on and off a maximum of 48 times, so each time you turn the knob, the minimum setting unit is 15 minutes(24 hours*60/96 minutes).

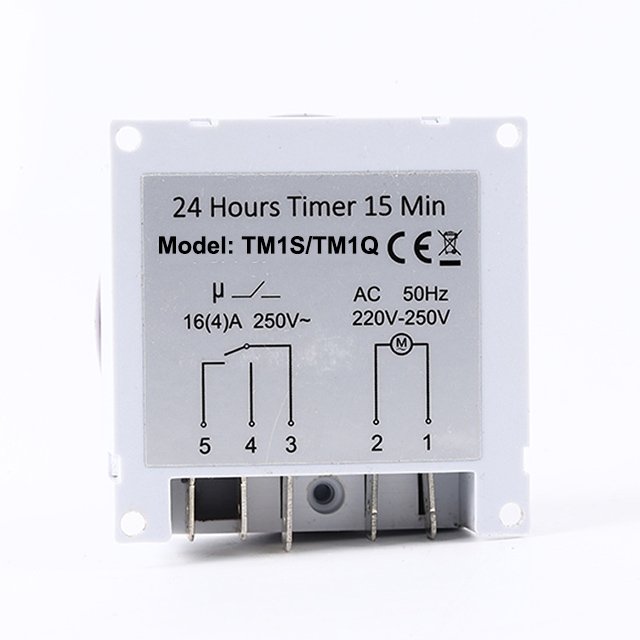

The load contact is 16 amps(NO only or NO+NC available), and the operating voltage range is 100-240VAC. If you want to enlarge its load capacity, you can try to use it with our solid state relays or CJX2 AC contactor.
Want to learn more about our TM1S or TM1Q electromechanical timer switches? Please fill out the form below to contact us today!
