Introduction:
-
- Our DH48J is a digital down-counting and up-counting preset counting relay, once the relay count number reaches the set value (up-counting mode) or is zero (down-counting mode), the output contact will change from NO to NC or from NC to NO.
-

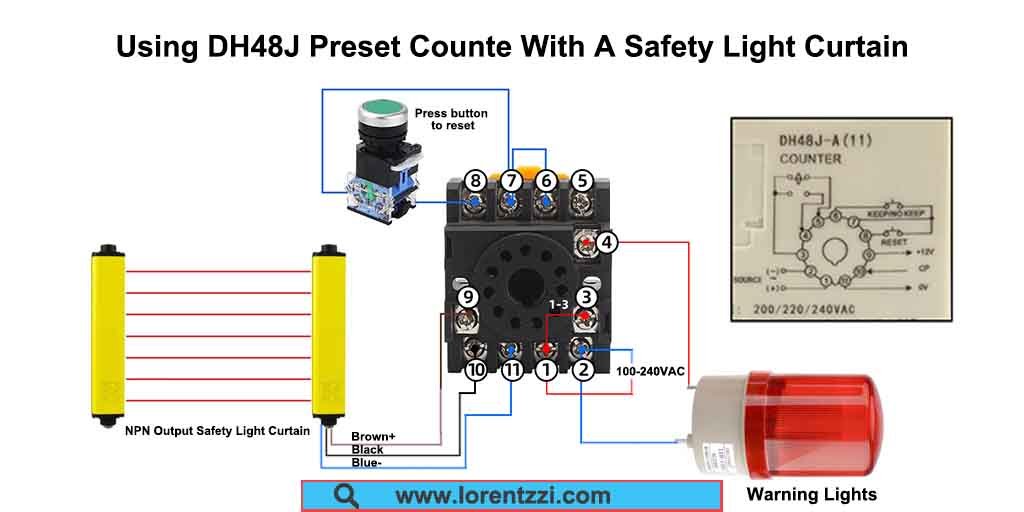

- When this counting relay is used for counting, it should be used with our NPN proximity sensor. When used with our inductive proximity sensor, it can count the number of metal objects. When used with a photoelectric sensor, it can count the number of any object.
- Besides, the input signal can be dry contact, such as button, limit switch and so on.

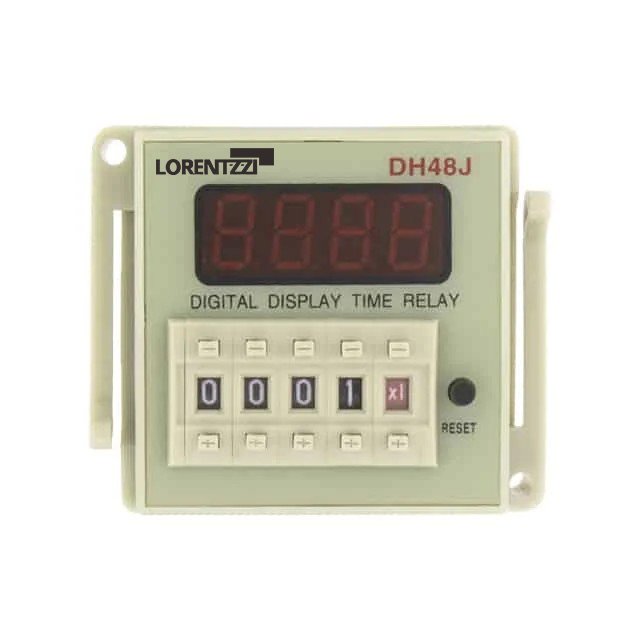

- The front panel of this DH48J counter is of international standard 1/16 DIN (48*48mm) size, and the installation method can be panel mounting or DIN rail mounting with relay socket.
- Working voltage can be AC110V, AC220V, DC12V, DC24V etc.
- Output contact capacity is 5 amps@220VAC, it is a dry contact, if you want to power a load, external power should be added to this contact.
- Want to get this DH48J counter relay at the latest price? Please fill out the below form to contact our sales team now!
Specifications:
| Model | DH48J |
| Working voltage | 110, 220 or 380 Vac, 50/60 Hz; 12Vac/Vdc, 24Vac/Vdc; 24-240VAC/DC |
| Operating mode | Up counting&Down counting |
| Input Signal | Dry contact, transistor (NPN proximity sensor) |
| Max. counting speed | 30 cps |
| Min. counting pulse | 15ms |
| No-power memory | DH48J-11A: 10 years |
| Control form | SPDT |
| Contact rating | 5A@250Vac, 7A@24Vdc |
| Mechanical life | 1x10^7 |
| Electrical life | 1x10^5 |
| Power consumption | Power consumption |
| Setting method | Dial switch |
| Indication method | 8-segment 4-digital display |
| External dimensions | 48*48*97 mm |
| Perforate dimensions | 46*46 mm |
| Counting error | ≤1 |
| Reset time | ≥0.05s |
| Power reset | ≥1s |
| Dielectric strength | 2000Vac, 50/60Hz for 1min |
| Insulation resistance | 100MΩ min. at 500 VDC |

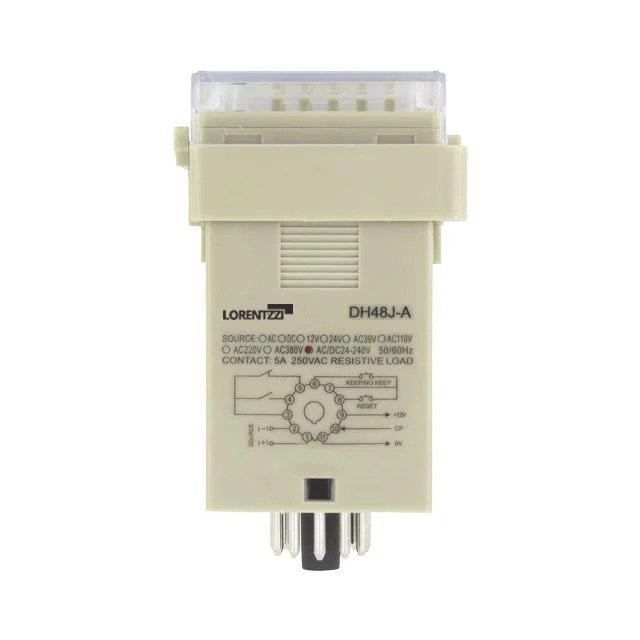

| Termination | DH48J, DH48JA: 8 pin; DH48J-11A: 11 pin, if use it as contact input, can connect 10 and 11 |
| Mounting | Panel, DIN rail |
| Matched sensor | NPN type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn |
| Operating temperature | -10~50 °C |
| Operating humidity | 30~85% RH max, non-condensing |
