TSR 60DA 60 Amp Three Phase Solid State Relay Introduction:
- The 60 Amp Three Phase SSR TSR-60DA is a three phase solid state relay. The control signal is 3-32VDC and the load voltage is 24-480VAC. This solid state relay uses a small DC voltage to control large amounts of three-phase electricity.
- The “60” in TSR-60DA represents the maximum load current the relay can handle, in this case 60 amps. “DA” means it is a relay that has a DC control voltage and switches AC load voltage.
- This 60 amp three phase SSR relay can operate resistive heaters up to 19kw (formula is Load Voltage*Current*1.732/2). If it is motor, its rated power should be less than 5000 watts.
- The load section connection can be star or delta, please choose the correct wiring method according to your application.
- In addition to this 60 amp solid state relay, we can also produce TSR-10DA, TSR-25DA, TSR-40DA with a maximum load current of up to 120A.
- In practical applications, combining three-phase solid-state relays with automated control systems such as PLC can complete various control tasks more conveniently and quickly.

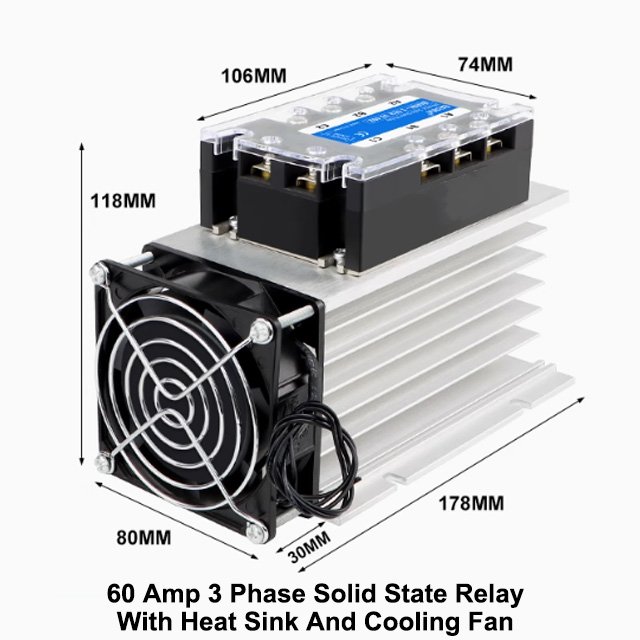

- Good cooling is very important when using this 3-phase SSR, so consider using our Y-110 heat sink and 1 cooling fan.
- Want to get its latest price? Please send email to shonxu@lorentzzi.com .
Specifications:
Mode | TSR-60DA |
Control voltage | 3-32 VDC |
Maximum input current | 40 mA |
Switch-on voltage | 3 VDC |
Release voltage | 2 VDC |
Load voltage | 24-480 VAC |
Load current | 60 A |
Peak voltage | 800 VAC |
Max on-state current drop | 2 mA |
Max on-state voltage drop | 1.5 V |
Product dimension | 105*74*33 mm |
Net weight | 400 g |
Input and output insulation voltage | 4000 V |
I/O terminal to shell insulation voltage | 2500 V |
Operating temperature | -30℃~80℃ |
Certification | CE |
Terminals | Screw |
Remark | When using this SSR, please consider using a suitable heat sink to help cool it, otherwise high temperatures exceeding 80 degrees Celsius will cause permanent damage to this SSR. |
