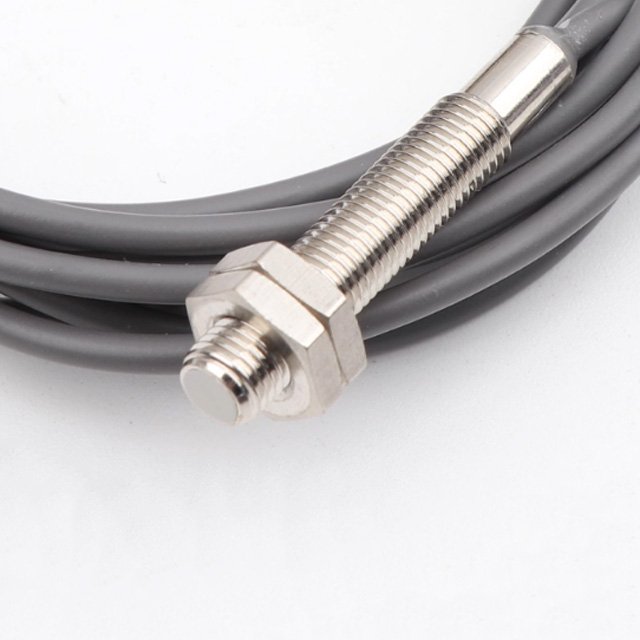

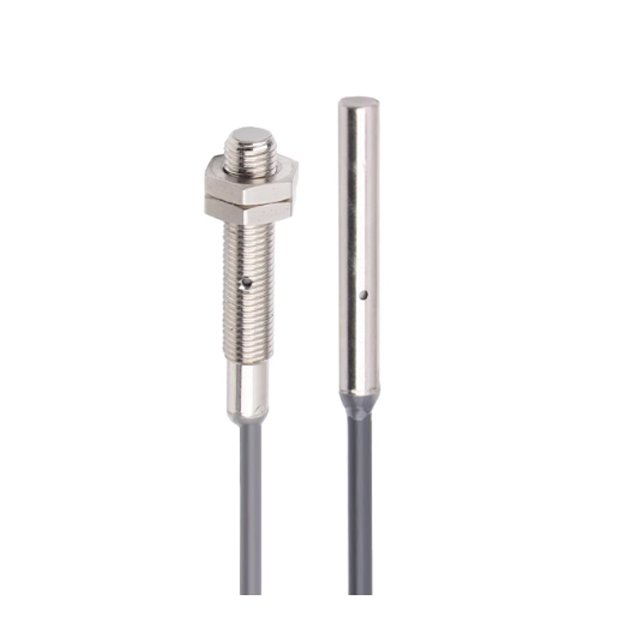

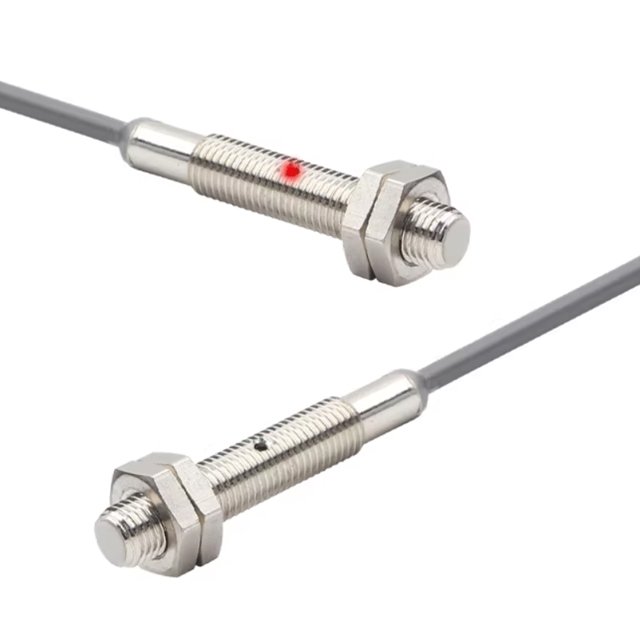

M6 Proximity Sensor Introduction:
- Lorentzzi® M6 proximity sensor here is a M6 screw size cylindrical shape inductive sensor switch, it consists of coil, oscillation circuit, signal amplifier circuit, trigger circuit and output driver circuit.

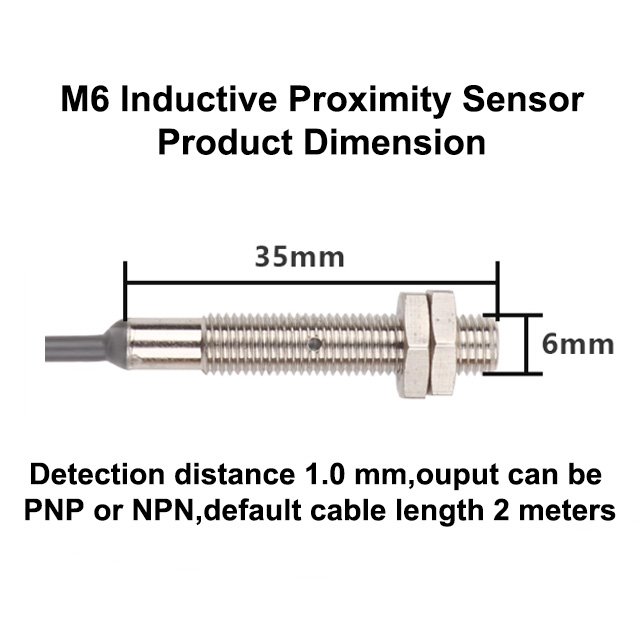

- This tiny sensor diameter is only 6.0 mm, can be used in a very narrow space to detect metallic objects, it is a space saving inductive sensor switch.
- The working voltage of this sensor is 10-30 VDC. Therefore, any voltage between this range, such as 24 VDC, is enough to operate this sensor.
- There are 2 detection distances available, if flush type, the detection distance is 1.0 mm, if non-flush one, the sensing distance is 1.5 mm.
- Output can be PNP or NPN(please read this article to understand the difference between PNP and NPN output), output circuit can be normally open or normally closed.
- Output current is only 150 mA, so if you want it to switch on or off a heavy load, a general purpose relay, AC contactor or SSR should be taken into consideration.
- This sensor can be used in many applications, for instance, it can be used in a CNC machine to measure the moving distance of the machine.
- If you want to get our M6 tiny inductive proximity sensor latest price. please fill out the form at the bottom to contact us now!
Specifications:
Detection distance | 1.0 mm | |||
Flush | DC6-36V | NPN | NO | LM06-3001NA |
NC | LM06-3001NB | |||
NO+NC | ||||
PNP | NO | LM06-3001PA | ||
NC | LM06-3001PB | |||
NO+NC | ||||
Two wire | NO | LM06-3001LA | ||
NC | LM06-3001LB | |||
AC90-250VAC | Controllable silicon | NO | LM06-2001A | |
NC | LM06-2001B | |||
NO+NC | ||||
Relay output | ||||
Non-flush | Detection distance | 1.5 mm | ||
DC6-36V | NPN | NO | LM06-3015NA | |
NC | LM06-3015NB | |||
NO+NC | ||||
PNP | NO | LM06-3015PA | ||
NC | LM06-3015PB | |||
NO+NC | ||||
Two wire | NO | LM06-3015LA | ||
NC | LM06-3015LB | |||
AC90-250VAC | Controllable silicon | NO | LM06-2015A | |
NC | LM06-2015B | |||
NO+NC | ||||
Relay output | ||||
Control output | DC | 150 mA | ||
SCR/Relay | ||||
Output voltage drop DC/AC | DC≤3 V, AC≤10 V | |||
DC/AC Consumption current | DC≤15 mA, AC≤10 mA | |||
Standard detected object | 6*6*1 mm(A3 iron) | |||
Repeated precision | 0.01 | |||
DC/AC Response frequency | 500 Hz | |||
Working environment temperature | -25℃~75℃ | |||
Insulation resistance | ≥30 MΩ | |||
Shell material | Stainless steel housing+PBT head | |||
Protection grade | IP67 |
