1000 PPR Encoder, ABZ Incremental Optical Rotary Encoder

Introduction:

• • Lorentzzi® brand 1000 PPR encoder is a solid D shaft optical incremental rotary encoder, it can produce 1000 pulses per revolution and offers higher measurement accuracy than others, such as our 100 PPR encoder.
  • It adopts advanced manufacturing technology and has A, B, Z three-phase output, which is more economical than our 6 phase (A, A-, B, B-, Z, Z-) differential line driver encoder.
  • Its output forms are diverse, covering totem pole output, open collector output and voltage output, etc., which can meet the needs of different application scenarios.
  • The encoder has a flexible appearance design and a wide range of optional outer diameter sizes, including 25 mm, 30 mm, 38 mm, 40 mm, 50 mm, 58 mm, 68 mm, 70 mm, 78 mm and other specifications. The D shaft diameter size is between 4 mm and 15 mm, which can be adapted to a variety of mechanical structures.
  • In addition, we also provide OEM and ODM services and can customize and produce according to your specific needs.
  • With this 1000 PPR encoder, precise measurement and control of motor displacement, speed and rotation direction can be easily achieved.
  • It has an IP 65 protection level and can operate stably even in harsh environments such as dust and harmful sediments, ensuring that the encoder’s output waveform is stable and reliable.
  • This 1000 PPR incremental rotary encoder is widely used in servo motor feedback systems, CNC machine tool axis positioning, automated material handling control, and robot joint motion tracking.
  • Want to know the latest price of this incremental rotary encoder? Please fill in the form at the bottom and send your inquiry now!

Output Waveform:

Lorentzzi Solid Shaft Rotary Encoder Couplings:

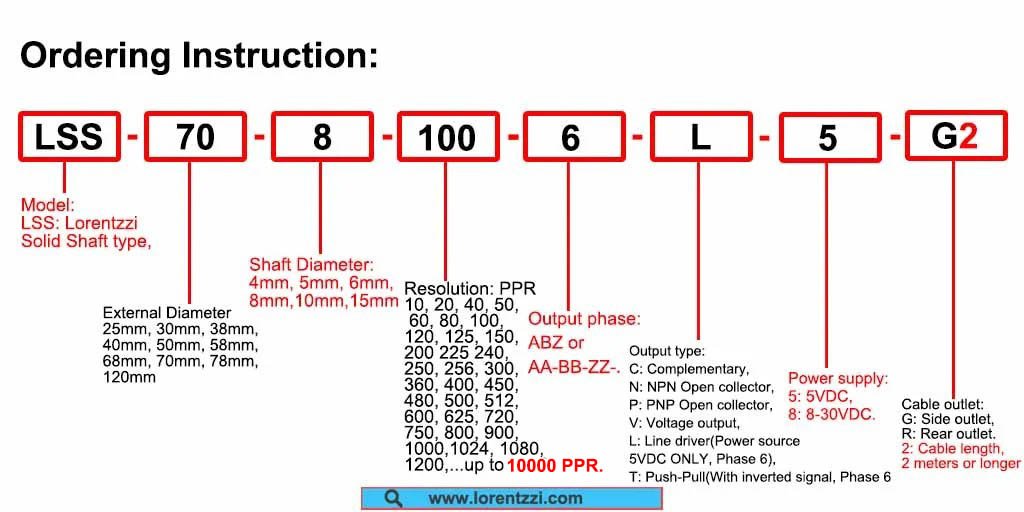

Ordering Instruction:

Specifications:
