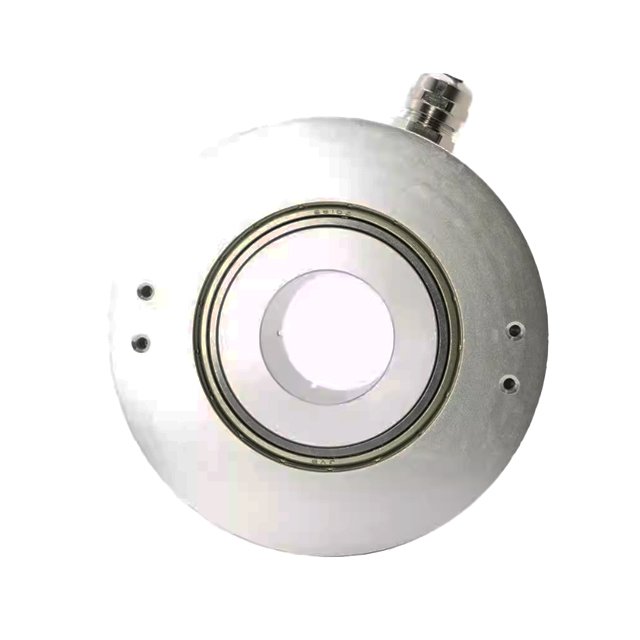

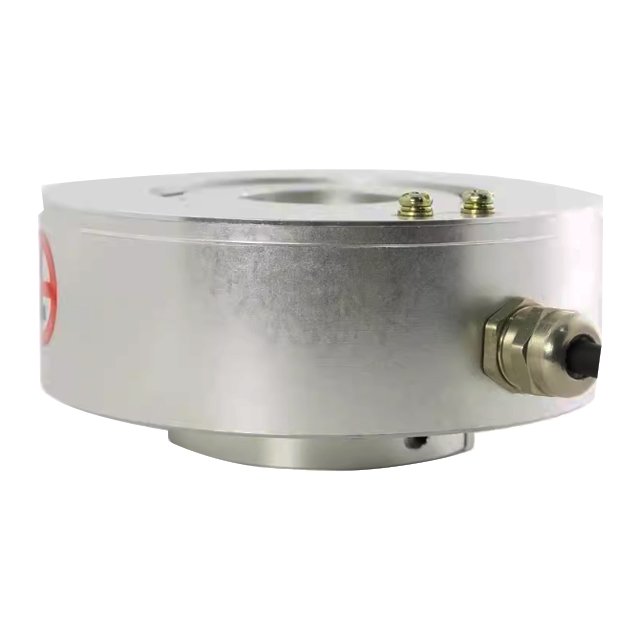

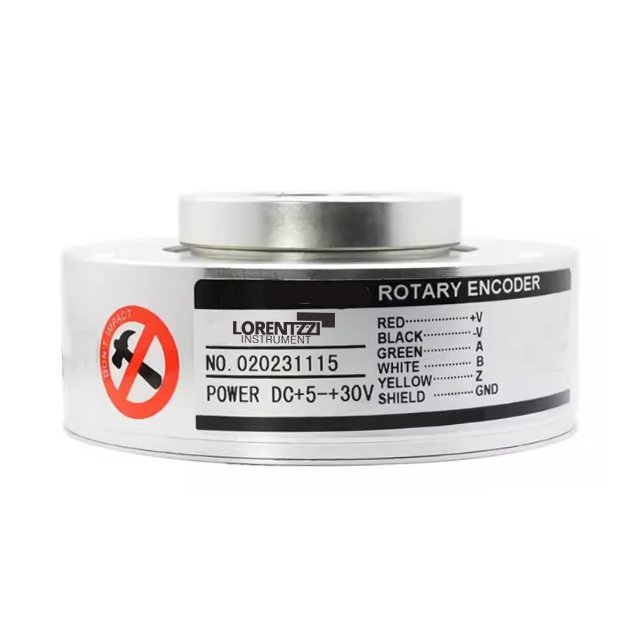

600 PPR Encoder, Hollow Shaft Large Bore Encoder

600 PPR Encoder, Incremental Hollow Shaft Large Diameter Encoder Introduction:

• Lorentzzi 600 ppr encoder is a cheap incremental quadrature rotary encoder, its output is ABZ 3-phase or AA-BB-ZZ- 6 phases. The 600 ppr here means that when it rotates one circle, it will generate 600 pulses, the more pulses it is, the higher accuracy it will be.

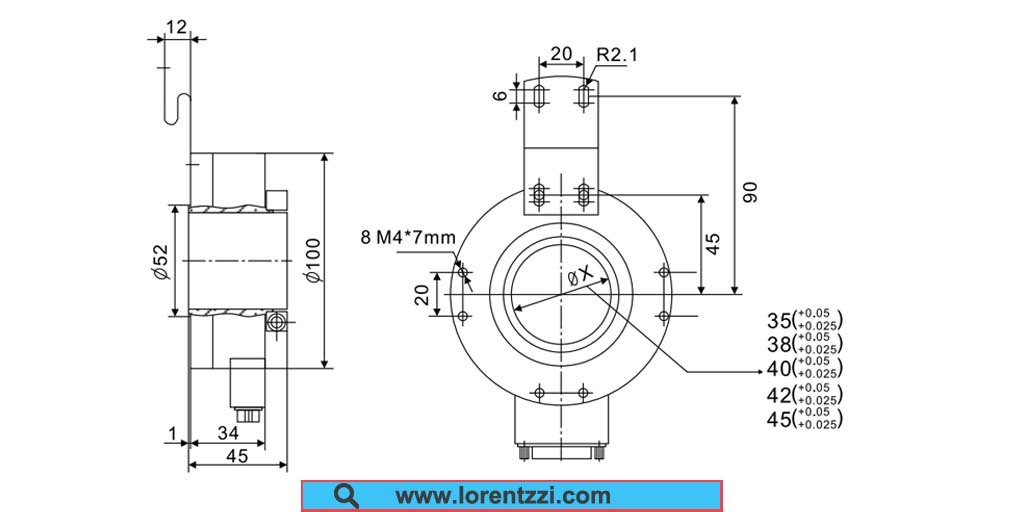

• This incremental encoder’s external diameter is up to 100 mm, bore diameter is from 35 mm to 45 mm, it is a large diameter encoder. Additionally, the resolution can be up to 2500 ppr.

• Its outputs are complementary, open collector, push pull, voltage output available.
• This 600 ppr incremental encoder default cable length is 2 meters, also, the length can be customized based on your requirements. We can cut its length to 3 meters, 5 meters etc..
• Compared with the solid shaft encoder, its installation is much easier, because we can directly insert the motor shaft inside its bore.
• There are two working voltages available for this 600 ppr encoder, they are 5VDC and 8-30VDC.
• We can utilize this encoder with a motor in an elevator, CNC machine, Factory Automation, Medical Imaging equipment and so on.
• Its output waveform is as follows, can be complementary, push-pull, line driver etc.
• If you want to get our 600 PPR large bore incremental rotary encoder price, please fill out the form at the bottom to contact us!

Specifications:
