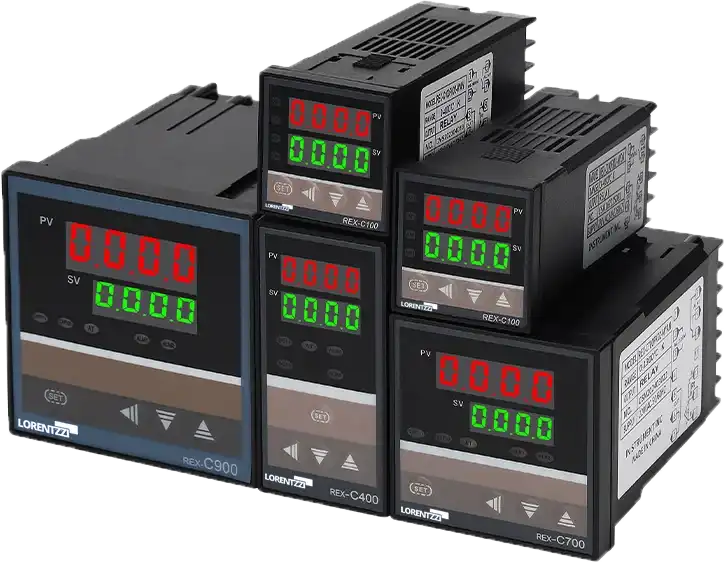

REX-C100, C400, C410, C700, C900 PID Temperatrure Controller
The REX-C series includes 5 models PID temperature controllers: REX-C100, REX-C400, REX-C410, REX-C700, and REX-C900. The panel sizes of these models are respectively 48*48 mm, 48*96 mm, 96*48 mm, 72*72 mm, and 96*96 mm respectively.
Key Features
TC+RTD Inputs
The input temperature sensor of our REX-C thermostat can be either a thermocouple or a thermal resistor, and customers can choose according to their needs.
SSR+Relay Outputs
Our REX-C temperature controllers come with SSR drive and relay outputs, making them suitable for a wide range of applications.
Atuo-tuning Function
The advanced auto-tuning function makes it easier to use and avoid the trouble to adjust PID parameters manually.
℃ Or ℉ Selectable
Customers can easily choose to display the temperature in Celsius or Fahrenheit, and customers from different countries can choose freely.
Alarm Function
The alarm can be high deviation, low deviation or other multiple alarms to choose from, ensuring more accurate temperature control.
Wide Working Voltage Range
The working voltage range of our REX-C temperature controller is 100-240 VAC or 24 VDC, any customer around the world can use it without worry.
Fast Sampling Speed
Sampling times up to 500 milliseconds are suitable for many devices that do not require precise temperature control.
4 Digits LED Tube
Both PV and SV are displayed in 4-digit numbers, PV temperature color is red, SV is green, clear and easy to operate.
Made In China
These REX-C series digital pid temperature controllers are manufactured by us in China with favorable price and high quality.
REX-C PID Temperature Controller Products
REX C100 C400 C700 And C900 Temperature Controller Parameters
| Item | Description |
|---|---|
|
Product Name |
4 Digits Digital PID Temperature Controller |
|
Panel Sizes |
1/16 DIN(48*48mm), 1/8 DIN vertical (48*96mm), 72*72mm , 1/4 DIN(96*96mm), and 1/8 DIN horizontal(96*48mm) |
|
Input Temperature Sensor |
Themocouple, RTD, Analog 4-20 mA or 0-5VDC |
|
Display |
PV(Present Value), SV(Seting Value), Output(Output 1, Output 2), Alarm(Alarm 1, Alarm 2), AT(Auto-tuning) |
|
Control Method |
PID(Auto-tuning available), ON/OFF |
|
Accuracy |
0.5%FS |
|
Resolution |
14 bits |
|
Sampling Time |
500 ms |
|
Setting Range |
Proportional Band(P): 0-full range, IntegrationTime(I): 0-3600Sec, Derivative Time(D): 0-3600Sec, Proportional Period: 1-100Sec |
|
Output |
SSR(20mA@12VDC), Relay(3A@250VAC), Analog(4-20 mA, 0-10 mA, 1-5VDC, 0-5VDC), SCR(zero-crossing or phase-shift control) |
|
Alarm Output |
3A@250VAC |
|
Insulation Resistance |
More than 50 MΩ(500VDC) |
|
Insulation Strength |
1500 VAC/Minute |
|
Power Consumption |
Less than 10VA |
|
Environmental Temperature and Humidity |
0-50℃, 30-85%RH, no condensation |
|
Net Weight |
REX-C100: 0.2 kgs, REX-C400, REX-C410, REX-C700: 0.4 kgs, REX-C900: 0.5 kgs |

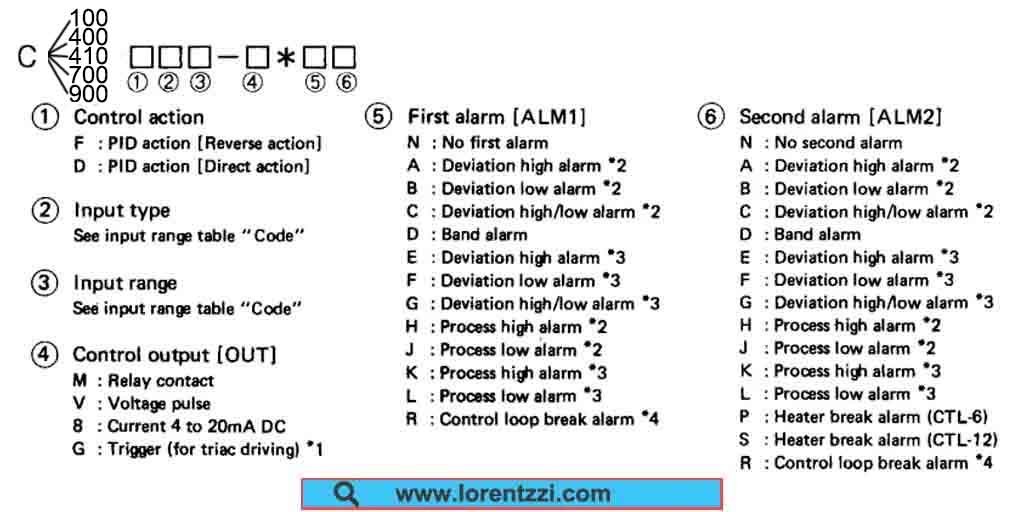

REX-C Series Temperature Controller Ordering Instruction
REX-C100, C400, C410, C700, C900 PID Temperatrure Controller Product Dimensions
The REX-C series temperature controllers are available in 5 different dimensions, so you can choose the dimension you want according to the following drawings.
REX-C100, C400, C410, C700, C900 PID Temperatrure Controller Applications
Frequently Asked Questions
What Is REX-C100, C410, C400, C700 And C900 Temperature Controller?
REX-C series PID temperature controller is a commonly used and economical process controller, which is popular in the market after being developed by RKC Instruments for many years. Its model number is used to describe its panel mounting size, REX-C100 is a 48*48 mm, REX-C410, REX-C400, REX-C700 and REX-C900 are 96*48 mm vertical, 48*96 mm (horizontal), 72*72 mm and 96*96 mm respectively.
Application of REX Temperature Controller
These low cost pid temperature controllers are mainly used to control the temperature of heater by switching on or off it, it is widely used in food machines, plastic production equipment, hospital high temperature disinfection, laboratory and so on.
What Is The Output Of REX-C Series Pid Temperature Controller?
Our REX-C series PID temperature controllers output can be relay+SSR, SSR, relay, 4-20mA or 1-5VDC, but please note that the output can be only one of them, as it can only control one output at a time,
How Do REX-C100, C410, C400, C700 And C900 Temperature Controllers Work?
REX-C series pid temperature controllers work based on PID algorithm, that is proportion, integral and deviation, the controlled temperature can reach to the setting value accurately through this PID algorithm.
What Are The Prices Of The REX-C100, C410, C400, C700 And C900?
As we, Lorentzzi, is a pid temperature manufacturer in China, these temperature controllers have high quality but low cost, generally our REX-C temperature controllers prices are below USD10.0, while some customized one might be a little higher but will not be so much
Can Your Company Provide ODM Or OEM Service For Me?
Yes, we accept ODM and OEM services for our REX-C temperature controller, and want to know the differences between the ODM and OEM. Read this article:ODM Vs OEM: What Is The Difference?
The User Manual Of REX-C100, C410, C400, C700 And C900 Temperature Controller
Please download it by this link: REX-C Pid Temperature Controller User ManualÂ
