Introduction:
- Our ST3PF is an off delay time relay that will continue to supply power to the load within a preset time after the power is turned off.
- Compared with our multi-function time delay relay, ST3PF is much easier to adjust the delay time with the knob. Moreover, the price of this one is much cheaper. If you don’t want too many functions, this one is a good choice.
- The delay time can be selected as 0-0.5 seconds, 0-1 second, 0-5 seconds, 0-10 seconds, 0-30 seconds, 0-60 seconds, 0-180 seconds, 0-5 minutes, 0-10 minutes, 0-30 minutes
- The output contacts are SPDT (single pole double throw) with two sets of contacts, normally open and normally closed, and the maximum load capacity is 3 amps@250VAC.
- This time delay device is installed using DIN rail, which is convenient for workers to install.
- Applications for this off delay time relay include HVAC control, light control, motor control and so on.
- Want to get the latest distribution price from us? Fill out the form below now and your request will be responded within 24 hours.
ST3PF Timer Wiring Diagram:

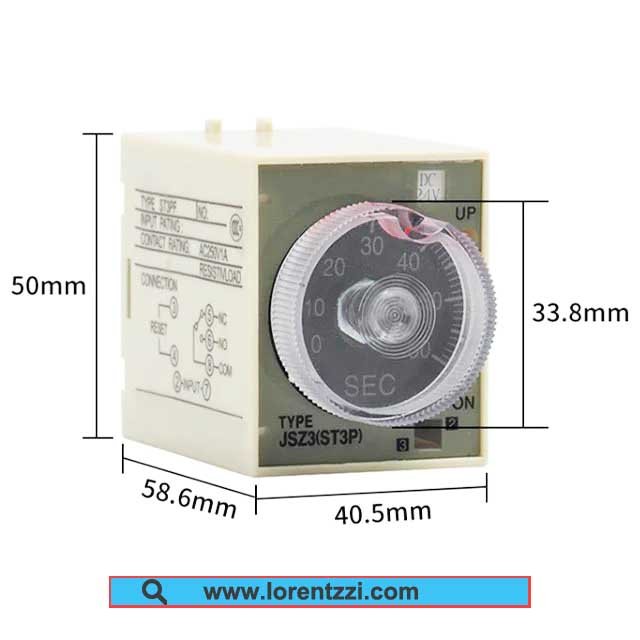

ST3PF Product Dimension:
Specifications:
Model | ST3PF |
Working voltage | 24VDC, 110VAC, 220VAC etc |
Power consumption | 3W max |
Setting method | Knob |
Indication method | LED |
External dimensions | 40.5*50.0*58.6 mm |
Contact rating | 3A@250Vac, 5A@28Vdc |
Termination | 8 pins |
Mounting | DIN rail mounting |
Mechanical life | 1x10^6 times |
Electrical life | 1x10^5 times |
Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
Operating humidity | 95% RH max, non-condensing |
