| Model | BA2M-DDT□-□ |
| Detection method | Diffuse type |

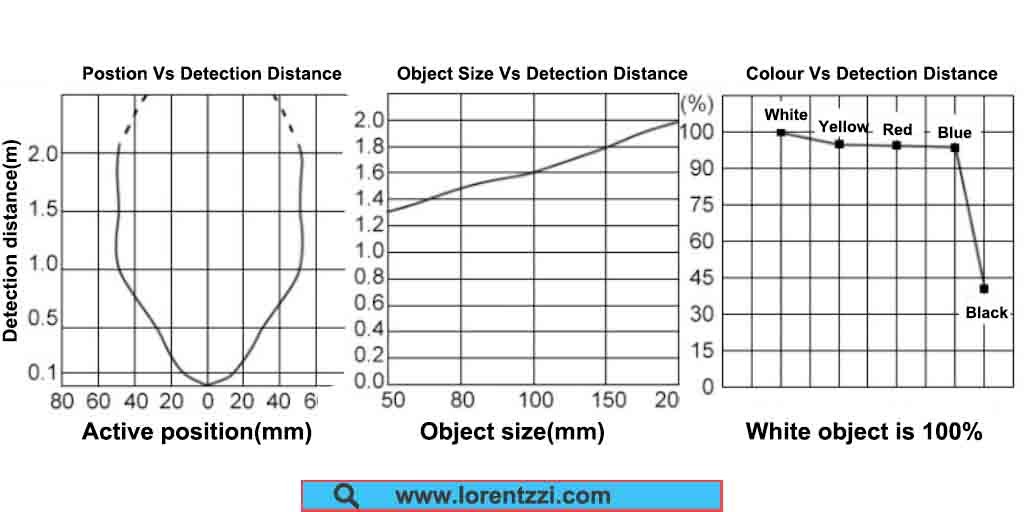

| Detection distance | 2m (white matte paper 200×200mm standard) |
| Detect object | opaque, translucent |
| Shock distance | ≤20% of detection distance |
| Response time | ≤1ms |
| Use light source | Infrared LED |
| Light source wavelength | 850nm |
| Sensitivity adjustment | YES (Potentiometer) |
| Action mode | Light ON mode/Dark ON mode model |
| Indicator light | Action Indicator (Red), Stability Indicator (Light ON: Orange, Dark ON: Green) |
| Certificate | CE |
| Product weight | ~50g |
| Voltage | 12-24VDC±10% (ripple PP: ≤10%) |
| Current consumption | ≤15mA (Output ON: ≤30mA) |
| Control output | NPN open collector output/PNP open collector output model |
| Load voltage | ≤26.4VDC |
| Load current | ≤100mA |
| Residual voltage | NPN: ≤1VDC, PNP: ≤2.5VDC |
| Protect the circuit | Power supply reverse connection protection circuit, output short-circuit over-current protection circuit |
| Insulation resistance | ≥20MQ(500VDCmeger) |
| Anti-jamming | Square wave interference generated by the interference simulator (pulse width 1us±240VDC |
| Withstand voltage | 1,000VAC~50/60Hz for 1 minute |
| Vibration resistance | 10~55Hz (period 1 minute), amplitude 1.5mm X, Y, Z direction 2 hours |
| Impact resistance | 100m/s²(~10G) X, Y, Z each direction 3 times |
| Use ambient illuminance (receiving surface) | Sunlight: ≤11,000lx, incandescent lamp: ≤3,000lx |
| Ambient temperature | -25~55℃, during storage: -25~70C without freezing or condensation) |
| Ambient humidity | 35~85%RH, during storage: 35~85%RH (non-frozen, non-condensing state) |
| Degree of protection | IP64 (IEC specification) |
| Connection method | Wire lead type |
| Wire Specifications | 03mm, 3 cores, 2m |
| Core wire specification | AWG 24 (0.08mm, 40 cores), insulator outer diameter: 01mm |
| Material | shell:ABS,indicator lightCAP:PC,Testing Department:PC,Adjustment department:XEF |
