M12 Photoelectric Sensor

  1. Full metal body, M12 thread,
  2. Available in diffuse, retro-reflective and through-beam types,
  3. The maximum sensing distance is 3 meters,
  4. Short circuit, reverse polarity protection,
  5. IP67 protection grade, 2-year warranty.

M12 Photoelectric Sensor Introduction:

  • The M12 photoelectric sensor here is a cylindrical photoelectric sensor series, including M12 diffuse reflection photoelectric sensors, retroreflective sensors and through-beam sensors.

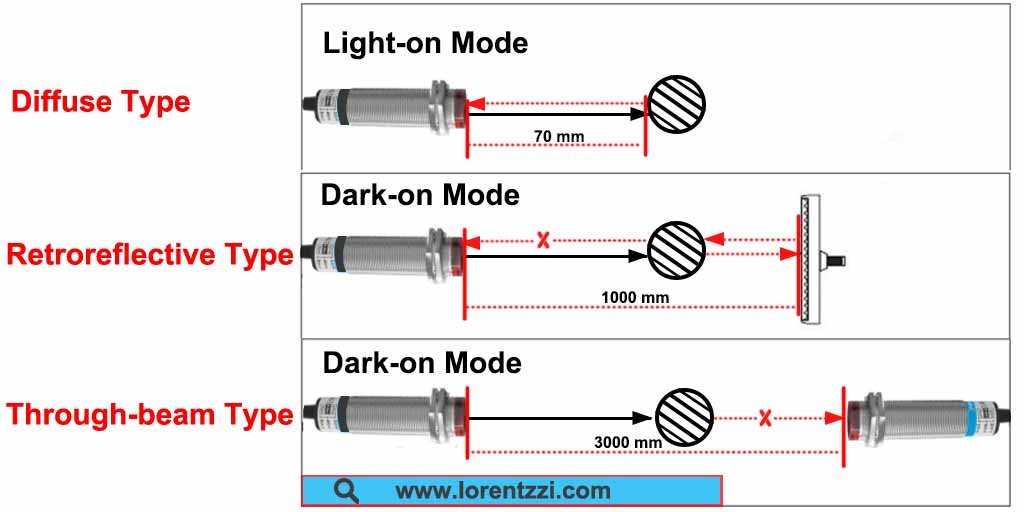

  • For the M12 diffuse reflection photoelectric sensors, the maximum sensing distance is 70.0 mm, and the detection distance of the retroreflective sensors can reach 1 meter. The farthest is the through-beam type, with a detection distance of 3 meters.
  • The M12 photoelectric sensor housing is made of nickel-plated brass, filled with epoxy resin inside, and has a protection level of IP67.
  • The working voltage can be 10-30VDC or 90-250VAC. For DC type sensors, the outputs are PNP, NPN, NO, NC or NO+NC available. For AC type it is 2 wire and available with NO, NC or NO+NC output.
  • In addition, this photoelectric sensor has reverse polarity, short circuit and overload protection functions to ensure user safety.
  • Applications for these M12 photoelectric sensors include quantity counting (if used with a digital counter), distance measurement, etc.



M12 Photoeletric Sensor Datasheet
