G30 Photoelectric Sensor

  1. M30 thread, ABS shell, IP67 rating,
  2. The maximum detection distance is 10 meters,
  3. Working voltage: 10-30VDC or 90~230VAC,
  4. Standard 2 meter cable,
  5. Extra long 2-year warranty.

G30 Photoelectric Sensor Introduction:

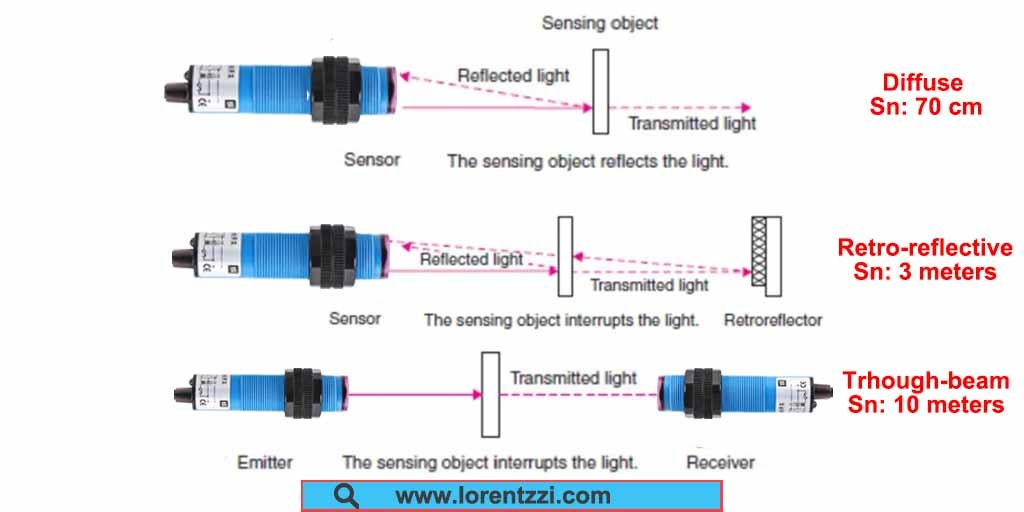

  • The G30 photoelectric sensor is an Ø30 diameter infrared light proximity sensor. If classified according to different detection distances, there are three types to choose from. The maximum detection distance of the diffuse type is 70mm, the maximum detection distance of the retro-reflective type is 3 meters, and the through-beam type can reach 10 meters.
  • The G30 photoelectric sensor housing is made of solid ABS plastic and filled with epoxy resin, giving it an IP67 protection rating. IP67 means the sensor can be used in very wet and harsh environments without problems.
  • Since photoelectric sensors use light to detect targets, they can be used to detect any object, whether it is a metallic or non-metallic material.
  • Applications for this G30 photoelectric sensor include position and distance detection, bottle counting on conveyors, automatic door and gate control, etc.


Wiring Diagram

Photoelectric sensor switch wiring diagram can be divided into 3 types according to different outputs, 2-wire wiring diagram (sensor, load and power supply in series), 3-wire proximity sensor wiring diagram (NPN or PNP, output is NO or NC)) and 4-wire wiring diagram (NPN type or PNP type, output NO+NC), please see the wiring diagram below:

Proximity sensor wiring diagram

Proximity sensor wiring diagram


G30 Photoelectric Sensor Datasheet
