LMF05 Rectangular Inductive Proximity Sensor Introduction:

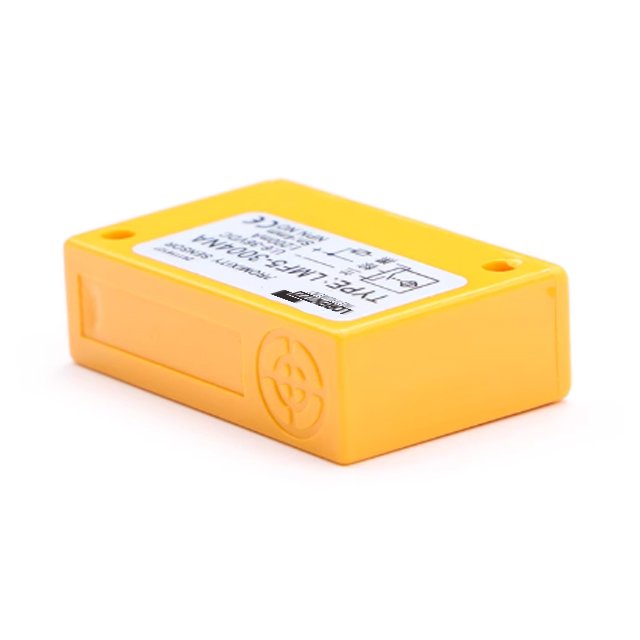

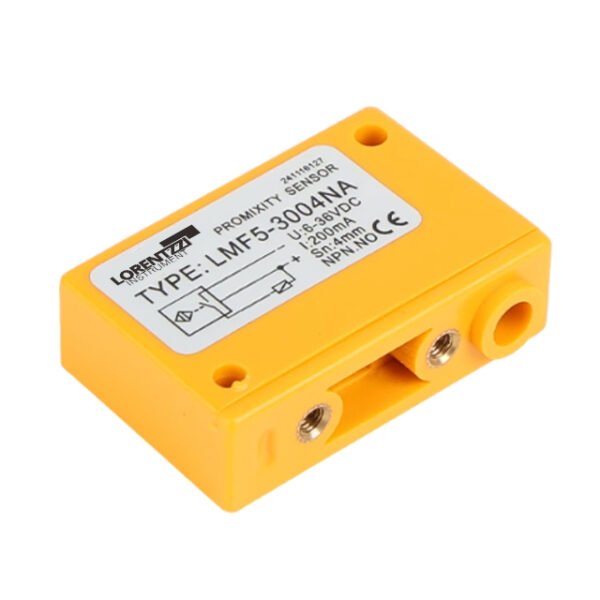

The LMF05 rectangular inductive proximity sensor has a housing size of 40*26*12mm and a maximum detection distance of 4mm. Suitable for detecting various metal materials.
Compared to the M12 cylindrical sensor with the same 4.0mm detection distance, the rectangular shape makes it very easy to install and use, and can be installed in the corner of the machine as an edge detector.

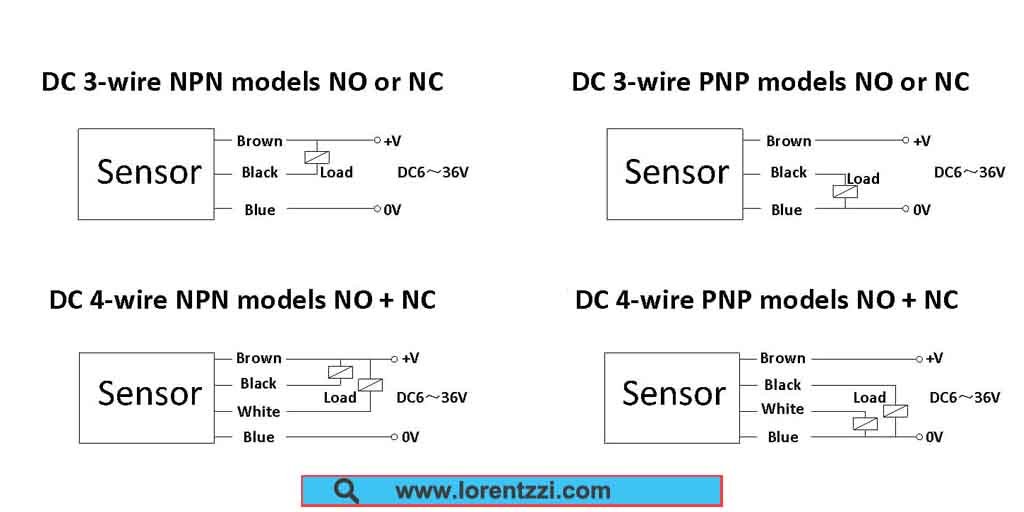

The output includes PNP+NO, PNP+NC, PNP+NO and NC, NPN+NO, NPN+NC, NPN+NO and NC, etc.
We can use this rectangular inductive proximity sensor in many applications to count the number of objects, movement displacement, rotation speed, etc.
If the output of this rectangular shape sensor is PNP+NO, it can be used with our 6-bit electronic counter JDM9-6 to count metal objects within its detection range.


Flush	Detection distance			2mm
	DC6-36V	NPN	NO	LMF5-3002NA
			NC	LMF5-3002NB
			NO+NC	LMF5-3002NC
		PNP	NO	LMF5-3002PA
			NC	LMF5-3002PB
			NO+NC	LMF5-3002PC
		two wire system	NO	LMF5-3002LA
			NC	LMF5-3002LB
	AC90-250V	Controllable silicon	NO
			NC
			NO+NC
		Relay output
Non-flush	Detection distance			4mm
	DC6-36V	NPN	NO	LMF5-3004NA
			NC	LMF5-3004NB
			NO+NC	LMF5-3004NC
		PNP	NO	LMF5-3004PA
			NC	LMF5-3004PB
			NO+NC	LMF5-3004PC
		two wire system	NO	LMF5-3004LA
			NC	LMF5-3004LB
	AC90-250V	Controllable silicon	NO
			NC
			NO+NC
		Relay output
Control output		DC		200mA
		SCR/Relay		300mA
Output voltage drop DC/AC				DC<3V AC<10V
Consumption current				DC<15mA AC<10mA
Standard detected object				15×15×1(A3 iron)
Repeated precision				0.03
DC/AC Response frequency				400Hz
Working environment temperature				-25℃~75℃
Insulation resistance				50MΩ
Shell material				ABS Resin
Protection grade				IP67
