Introduction:
-

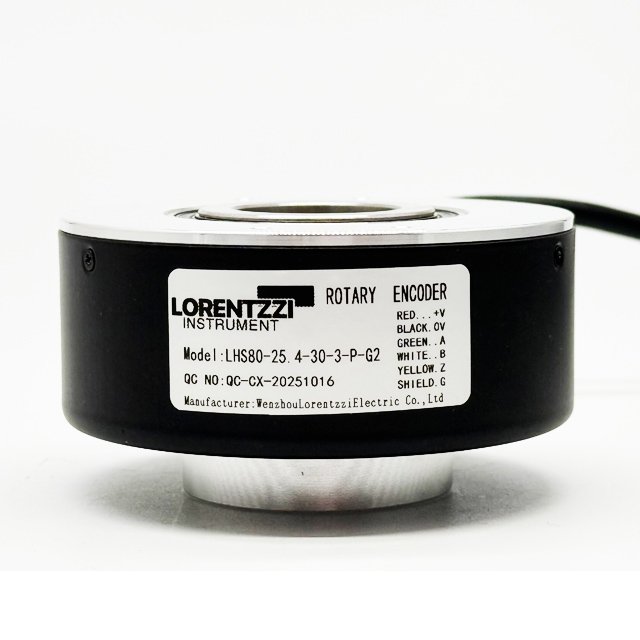

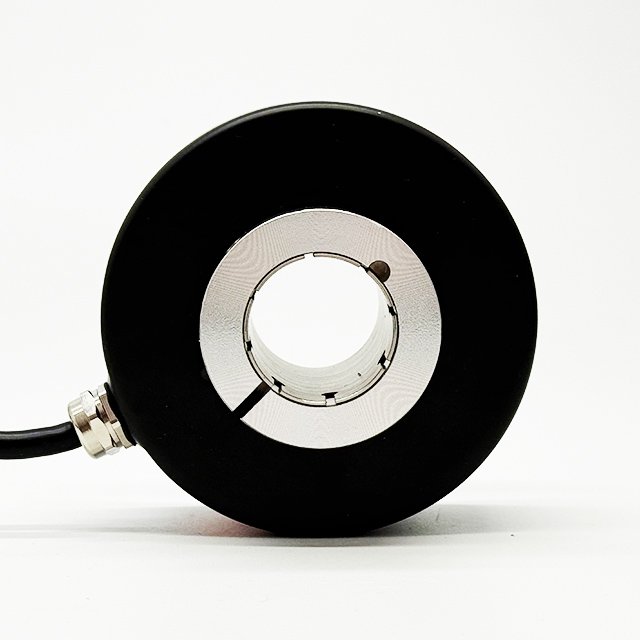

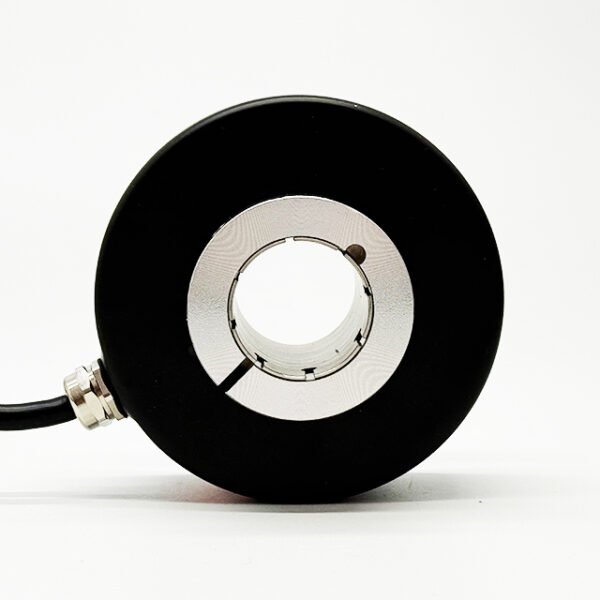

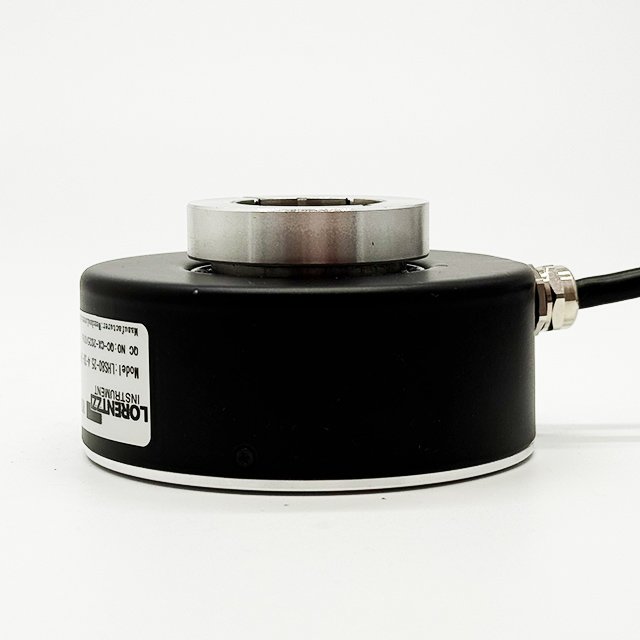

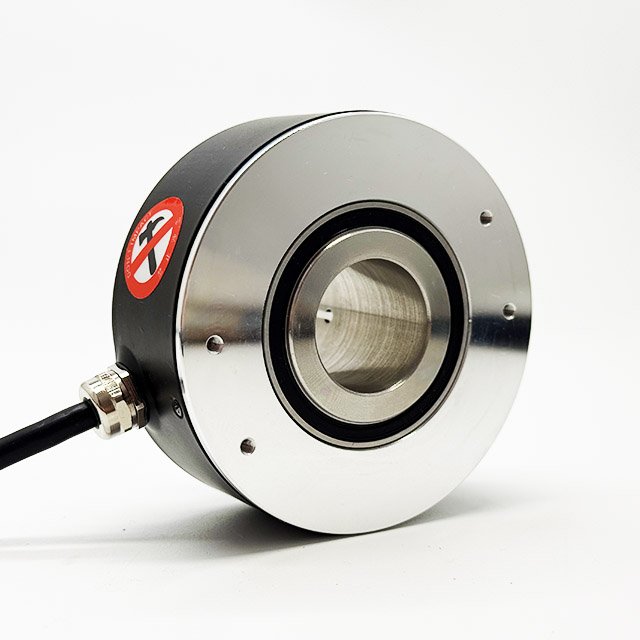

- This product is our company’s 30 PPR optical incremental rotary encoder, with an outer diameter of 80.0 mm and a hollow shaft aperture of 1 inch(25.4 mm).
- It can generate 30 pulses per revolution (the pulse can also be other values, such as 60 PPR, 1024 PPR, maximum 2500 PPR, you can contact us to customize these pulses.), has a square wave output, and is classified as a quadrature encoder.
- The disc in our encoder is default glass material, it can bear high temperature than others with a film material.
- Typically used as a feedback sensor for servo motors, it is paired with a motor driver or inverter to precisely control the motor’s speed, direction, and rotation angle.
- The number of phases can be three-phase A, B, Z or six-phase A, A/, B, B/, Z, Z/. The six-phase has strong anti-interference ability and is suitable for long-distance signal transmission.
- The output electrical signal can be PNP, NPN, voltage, push-pull and line drive output, etc.
- This 30 PPR incremental rotary encoder supplied by us has very reliable quality and competitive price
- Want to get our latest pricing or need support from our professional engineering team? Please fill out the form at the bottom to contact us now!
Ordering Instruction:
Specifications:
| Mechanical parameter | |
| External diameter | 80.0 mm |
| Shaft type | Hollow shaft |
| Shaft diameter | 25.4~35.0 mm available |
| Maximum speed | 6000 rmp |
| Shaft load | 20 N |
| Working temperature | -20℃~85℃ |
| Protection grade | IP65 |
| Connection method | Clamp |
| Resolution | 30-2500 ppr |
| Electrical parameter | |
| Output | 3-phase: Totem pole, open collector, voltage output, 6-phase: line driver or push-pull with reversing signal |
| Working voltage | 5 VDC or 8-30 VDC |
| Response rate | 100 kHz |
