TB388 Mechanical Programmable Timer Switch

  1. 24 hours programmable, minimum 15 minutes set time.
  2. Mechanical, reliable to use.
  3. Wide operating voltage, 110VAC/220VAC (50/60Hz) or DC12/24/48V,
  4. Low price and high quality,
  5. 2 year warranty.

TB388 Mechanical Programmable Timer Switch Introduction:

  • Lorentzzi® TB388 is a 24 hours programmable mechanical timer switch. By pushing  the dial outwardly, this timer switch can turn on the load accordingly. Please see the operation photo as following:

TB388 output turning-on operation

  • The minimum setting time is 15 minutes, that is, one outbound dialing is 15 minutes. There are 96 dials available, so the turning-on time range is from 0-24(15 minutes*96/60=24 hours) hours.
  • One thing to note is that before setting the power-on time, make sure the timer is working at the current time.
  • This TB388 mechanical timer switch maximum output current is 16A@220VAC, so it can directly operate resistive loads such as filament light not more than 3500W, motor not more than 500W.
  • To expand its load capacity, an AC contactor or AC/AC SSR can be used.
  • Installation methods of this TB388 timer switch can be DIN rail mounting or screw mounting via 3*Ø4.2 screws.
  • There is a backup battery inside this timer switch, so once the electricity fails, it can make this timer work normally for 300 hours.
  • The applications of TB388 mechanical time switches are in electric lamps, fans, street lights, water heaters, water dispensers, staircase lamps, advertising lamp boxes, geyser control etc.

Specifications:

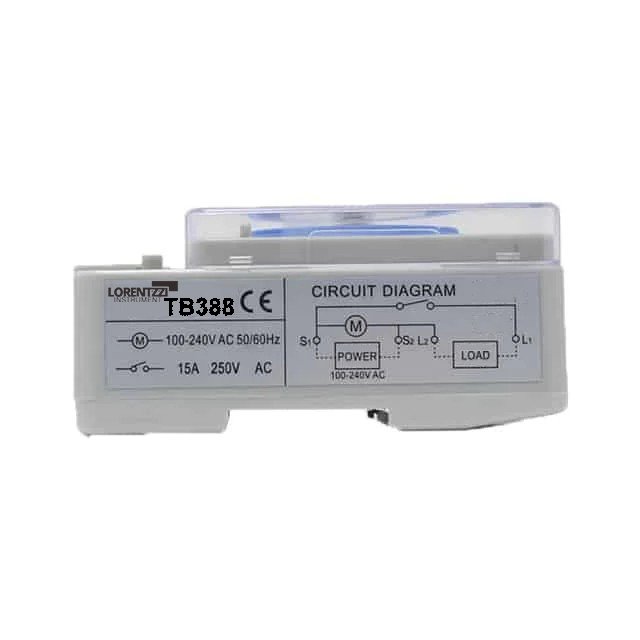

Model TB388
Working voltage 100VAC-240VAC, 50/60Hz
Driving method Quarts motor
Contat capacity 15A
Ambient temperature -10℃~+55℃
Full timing range 24 hours
Minimum setting unit 15 minutes
Installation method DIN rail mounting or screw mounting

Download

TB388 Mechanical Timer Switch Datasheet
