Introduction:

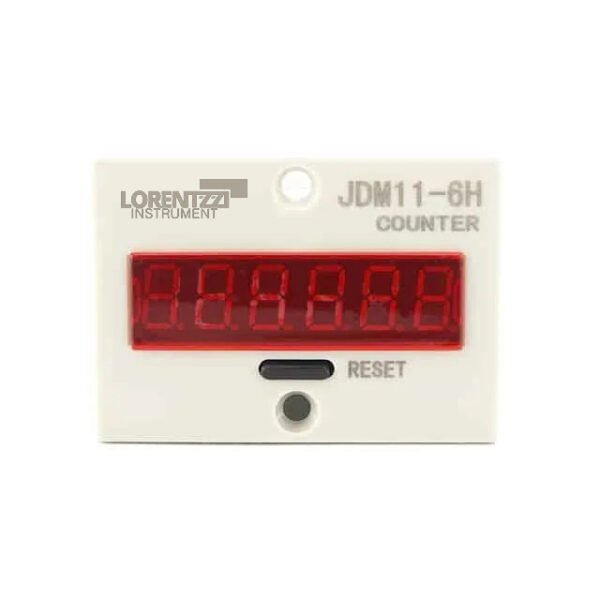

- The JDM11-6H produced by our company is a 6-digit counter with a maximum counting range of 999999.
- The working voltage of this counter can be one of 110VAC, 220VAC, 12VDC, 24VDC and other customized voltages.
- To use this JDM11-6H counter, an NPN proximity sensor should be used, which can be an inductive proximity sensor, a capacitive proximity sensor, a photoelectric sensor, or a safety light curtain etc.
- In addition to the NPN proximity sensor input, the input signal can also be a voltage pulse or no voltage contact signal(push button, limit switch etc).
- The counter is installed on the panel using two M4 screws.
- Want to get this JDM11-6H digital counter at the latest price? Please fill out the below form to contact our sales team now!
JDM11-6H Wiring Diagram:
Specifications:
| Model | JMD11-6H |
| Digits | 6 nos |
| Counting range | 0-999999 times |
| Working voltage | AC380V, AC220V, DC36V, DC24V, DC12V |
| Input signal | Contact, voltage, proximity sensor |
| Max. counting speed | 30cps/second |
| No power memory | Min. 10 years |
| Power consumption | 3VA max |
| Counting error | ≤1 |
| Reset time | ≥0.5s |
| Power reset | ≥1s |
| Dielectric strength | 2000Vac, 50/60Hz for 1min |
| Insulation resistance | 100MΩ min. at 500 VDC |
| Operating temperature | -5 to 45 °C |
