Introduction:
-
- Lorentzzi® 12V or 24V counter is an electromagnetic counter that operates at 12V DC or 24V DC. When a voltage pulse is received, its wheel will rotate once to record the count.
- In addition to 12VDC or 24VDC operating voltages, we can also provide other voltages, such as 5V DC and 36V DC. You can contact us for more information.
- This 12V or 24V counter can count up to maximum 999,999 times, and we can also produce a 7-bit counter with a maximum count of 9,999,999.
- The maximum counting speed is 20 times per second, so voltage signals can be counted very quickly.
- Compared to our 6-bit digital counter such as JDM11-6H, it offers stable reliability and will not lose data even during prolonged power outages.
- It has strong shock resistance, so you don’t have to worry about strong vibrations affecting its counting accuracy.

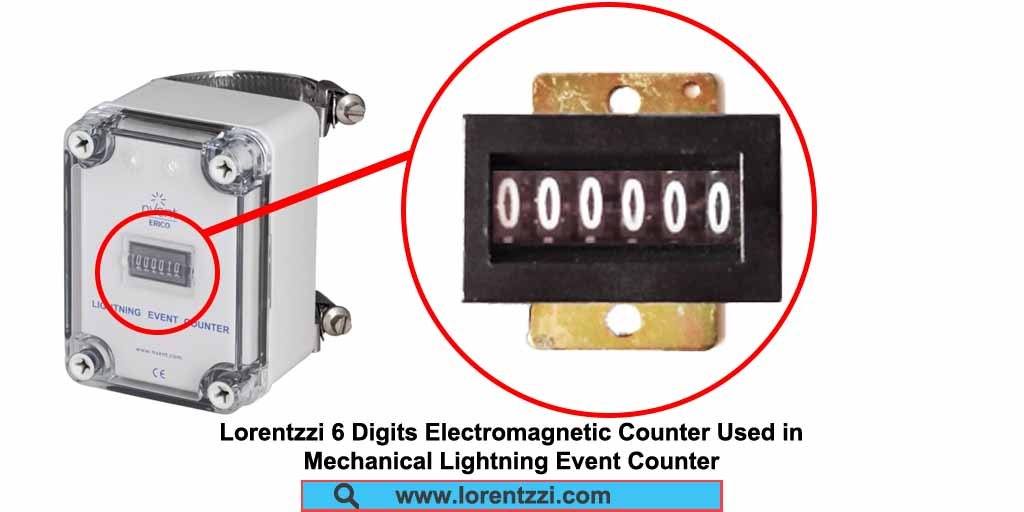

- This 12V or 24V counter can be used in coin-operated game machines, mechanical lightning event counters, electric vehicle production lines, fuel and gas distributors, etc.
-
- If you would like to know the latest wholesale price of this 6-digit electromagnetic counter, please fill out the form at the bottom to contact us!
Specifications:
| Model | LMC-06 |
| Counting Range | 0~999,999 |
| Voltage Types | 5 VDC, 12 VDC, 24 VDC and so on |
| Voltage Fluctuation Range | ±10% |
| Counting Speed | DC 20 times/second, AC 10 times/second |
| Indication Error | <1*0.00001 |
| Operating Ambient Temperature | -20℃~50℃ |
| Relative Humidity | 85% |
| Power Consumption | 0.5 W |
| Reset Reset Method | No |
