Introduction:
-
- Are you looking for a safety fence that can protect personnel without affecting production efficiency? Lorentzzi 1160 mm protection height safety light guard is your good choice.
- This safety light guard uses 680 nm infrared light, sensing objects through the light field formed between the transmitter and receiver.
- It outputs a signal when any light is blocked within the 1160 mm protection height. For example, a 24VDC high-level signal is output if the output is PNP type; a 0V voltage signal is output if the output is NPN type.
- In addition to the aforementioned PNP or NPN transistor outputs, this safety light curtain also has relay outputs, thus its contact capacity is 3A, far exceeding the 200 mA capacity of PNP or NPN transistors.
- You can also use this safety light guard in conjunction with our photoelectric sensors to achieve a safety light curtain muting function, thereby protecting personnel safety without restricting materials from entering hazardous areas.
- Want to get the latest price of our safety light guards? Please fill out the form at the bottom to contact us now!

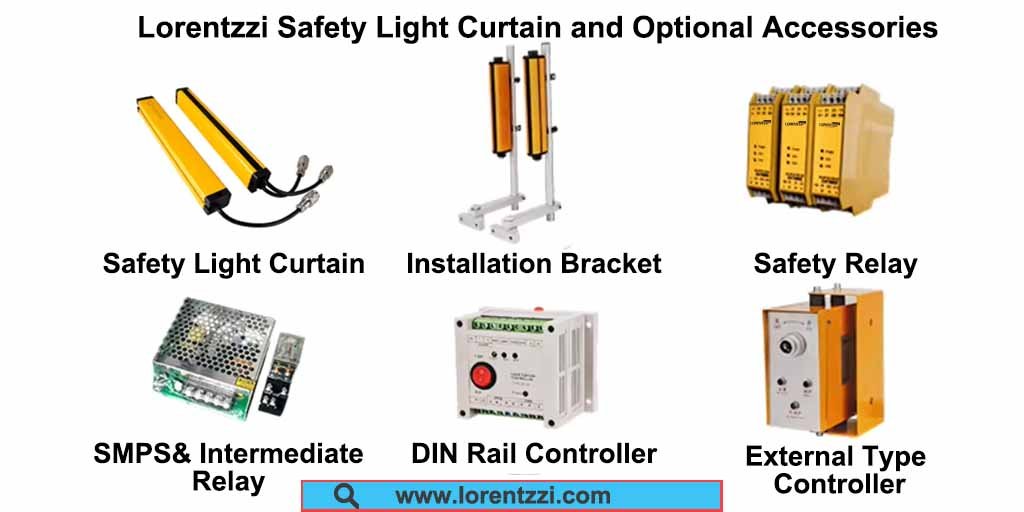

Safety Light Guard Accessories:
Specifications:
| Protection height | 1160 mm |
| Beam distance | 10 mm/20 mm/40 mm |
| Beam quantity | 118/60/30 |
| Working voltage | 24VDC±20% |
| Power consumption | 5W |
| Response time | ＜10ms |
| Insulation resistance | ≥100MΩ |
| Output | PNP, NPN, Relay |
| Protection distance | 0.1-5.0m, 0.1-10.0m, 0.1-15.0m, 0.1-20.0m |
| Working environment temperature | -10~55℃ |
| Storage environment temperature | -25~70℃ |
| Working environment humidity | ＜85% when temperature is 25℃ |
| Output current | 200mA |
| Anti-light interference | 10000 Lux (incident angle I>5°) |
| Dielectric strength | AC1500V 60S, No breakdown or flicker |
| Type | Through beam type |
| Cross-sectional size | 29*30 mm |
