Flange Encoder, Optical Incremental Encoder, Screw Mounting Type

Introduction:

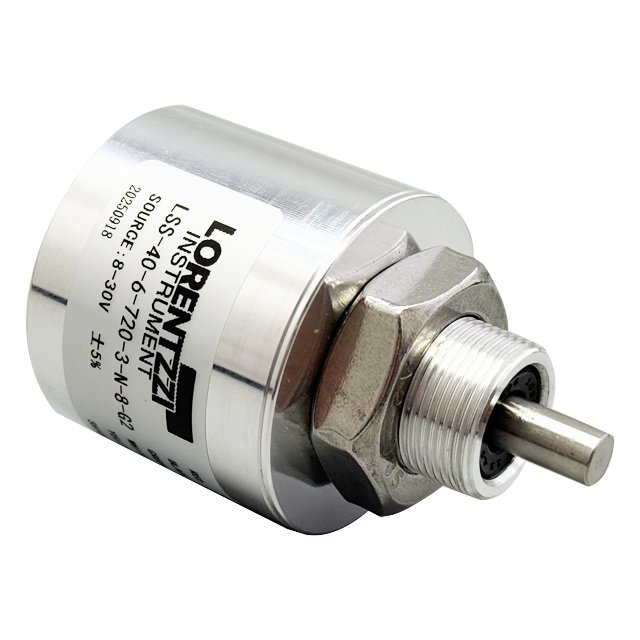

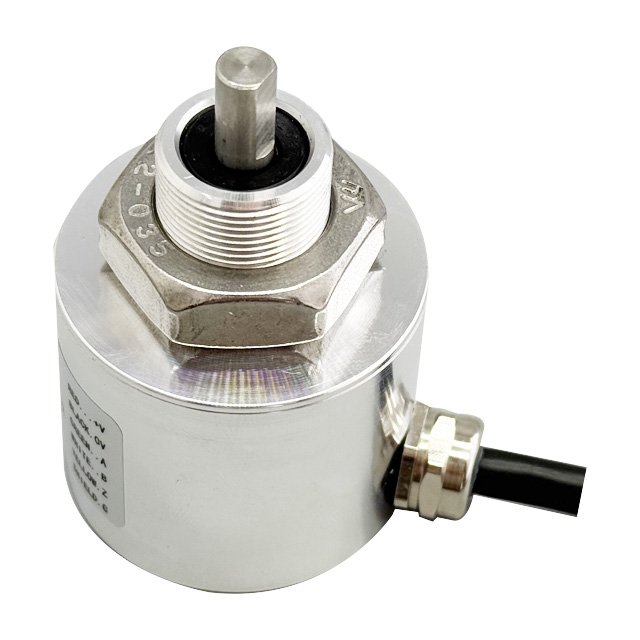

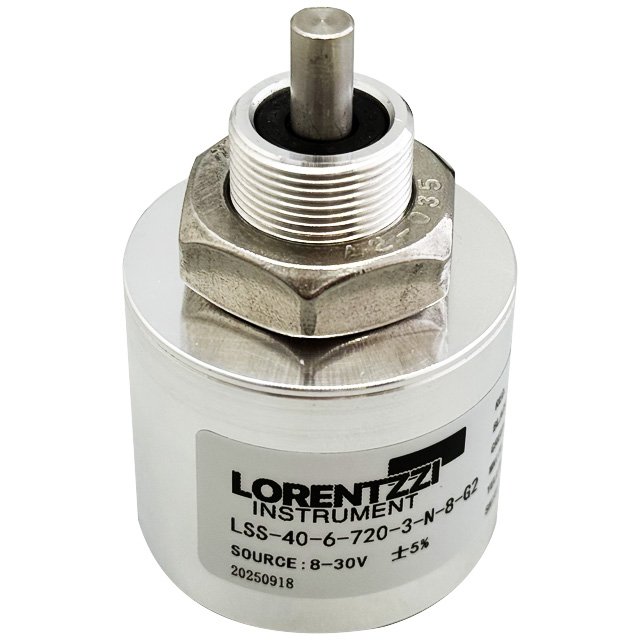

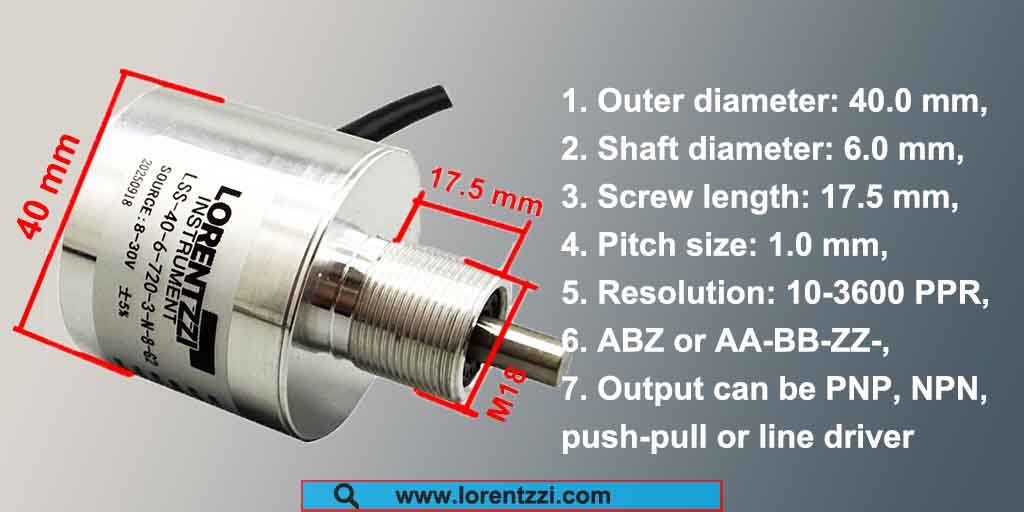

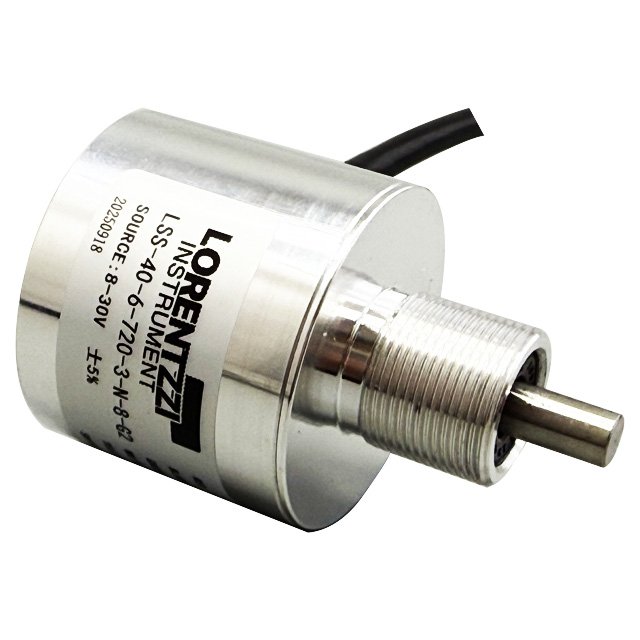

• • The flange encoder in the image above is our company’s screw-mounted optical incremental rotary encoder. It has an outer diameter of 40.0 mm and a shaft diameter of 6.0 mm.
  • The mounting screw thread size is M18, with a pitch of 1.0 mm and a screw length of 17.5 mm.

• • The output can be ABZ three-phase or AA-BB-ZZ six-phase, where the Z phase output is used to locate the zero point, allowing users to understand the direction of motor rotation.
  • Because the flange encoder’s output waveform is a square wave, it is also called a quadrature encoder. Its resolution ranges from 10 PPR to a maximum of 3600 PPR. The higher the resolution, the higher the accuracy.
  • Its electrical output signal can be NPN open collector, PNP open collector, push-pull, long-line drive or voltage output. Different output signals can be matched with different instrument inputs.
  • This optical screw mount flange encoder can be used as a feedback sensor for servo motors to precisely control rotation speed, rotation direction or movement displacement.
  • If you would like to know the price of this flange encoder or want to get more technical details, please fill in the form at the bottom and contact us now!

Specifications:
