Introduction:

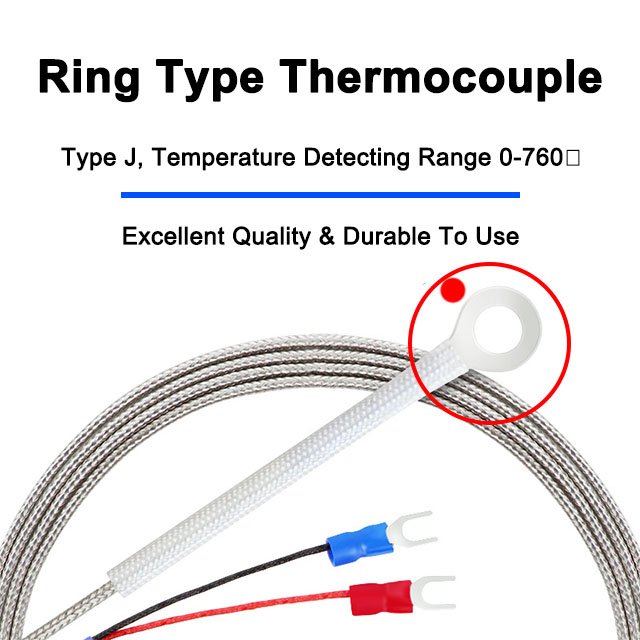

- Lorentzzi ring type thermocouple is a J type thermocouple, which temperature measuring range is 0-760℃(32-1400℉).

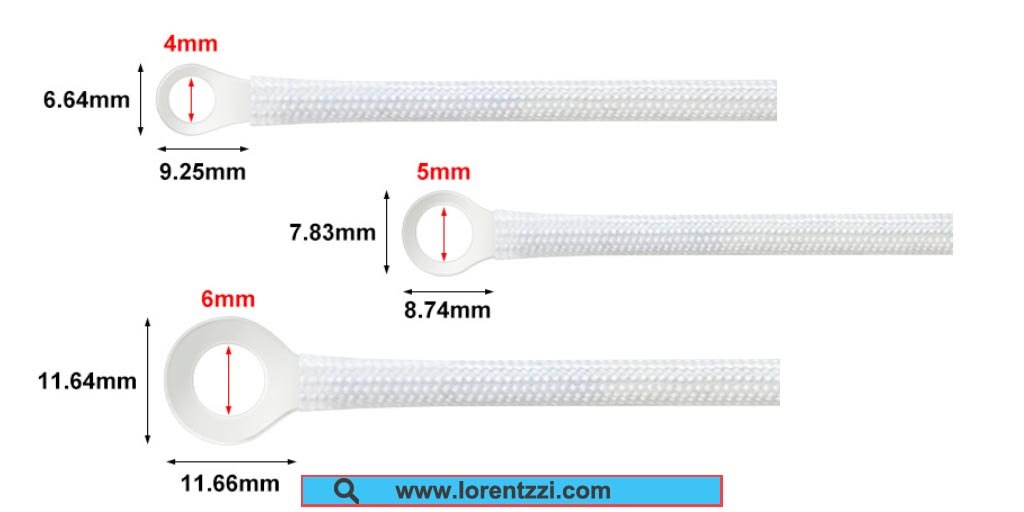

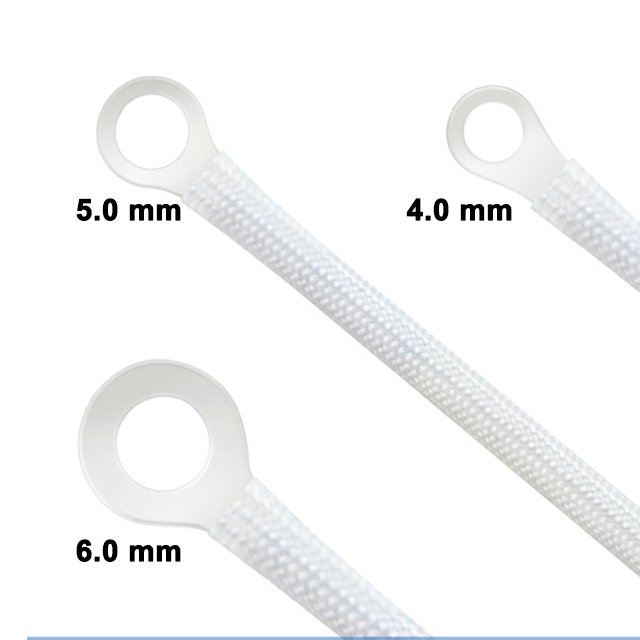

- There are three sizes of ring diameters: M4 (4.0 mm diameter), M5 (5.0 mm diameter), and M6 (6.0 mm diameter). Please refer to the sizes of ring thermocouples below:
- Compared with our probe type thermocouple, the ring structure makes the thermocouple easy to install on the temperature detection object with screws.
- If you also want to purchase PID temperature controllers or SSRs, we can also provide, you can click the link to see the product details.

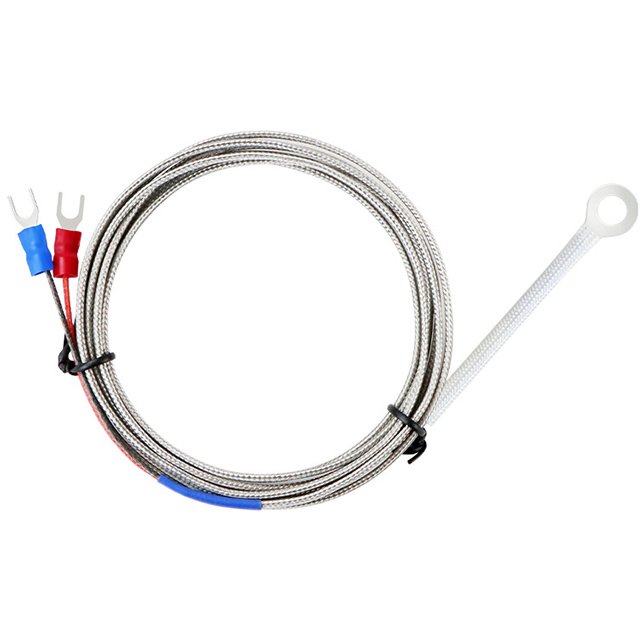

- The default cable length is 1 meters, also we can customize it to a maximum 5 meters or longer.

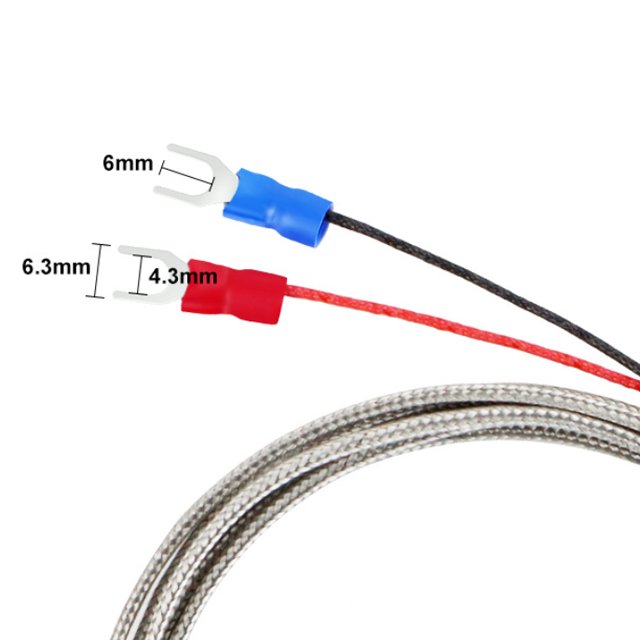

- The cable end is produced with spade U shape terminals, which is very convenient for the user to wire.
- This J type thermocouple can be used in a variety of industries, such as machine tools, heating equipment, plastic machinery, boiler equipment, temperature control equipment, automation, and more.
- If you would like to get the latest price for this J-Ring Thermocouple, please fill in the form at the bottom to get a quote.
Specializations:
| Name | J-type screw-in thermocouple |
| Appearance type | Ring type |
| Sensor type | Type J |
| Cable length | 1-5 meters optional |
| Ring size | 4.0 mm, 5.0 mm and 6.0 mm optional |
| Temperature detecting range | 0-760℃(32-1400℉) |
| Ring thickness | ±0.55 mm |
| Ring material | Copper |
