Introduction:

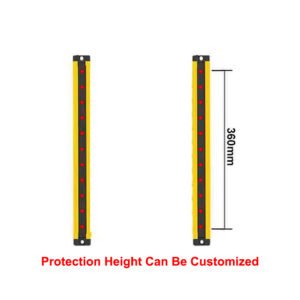

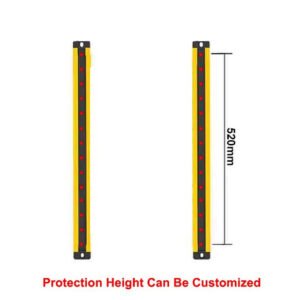

- This is our ultra-compact safety light curtain with a minimum protection height of 120 mm (for longer protection height light curtain sensors, please check our safety light curtain product category).

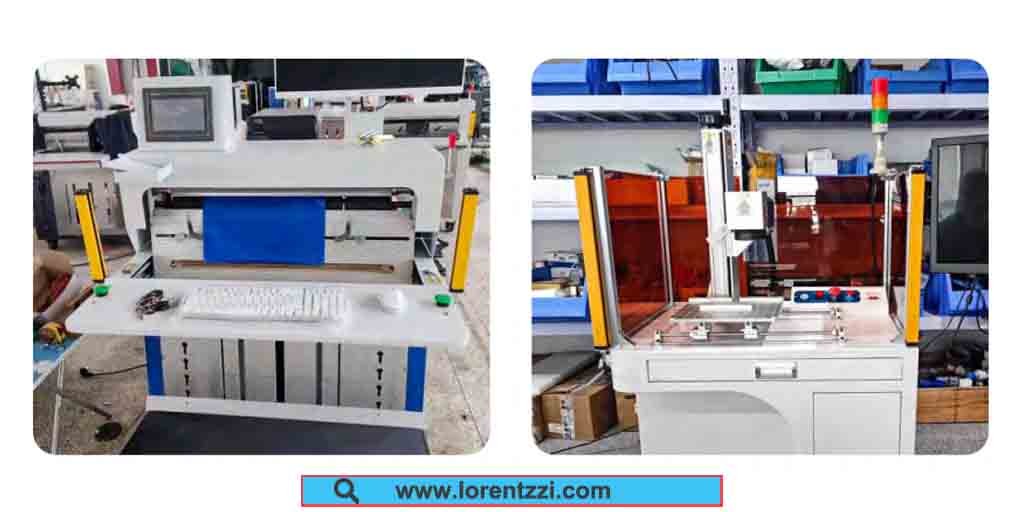

- It is suitable for small equipment and can effectively prevent finger injuries, such as small punching machines, micro CNC machines, etc.

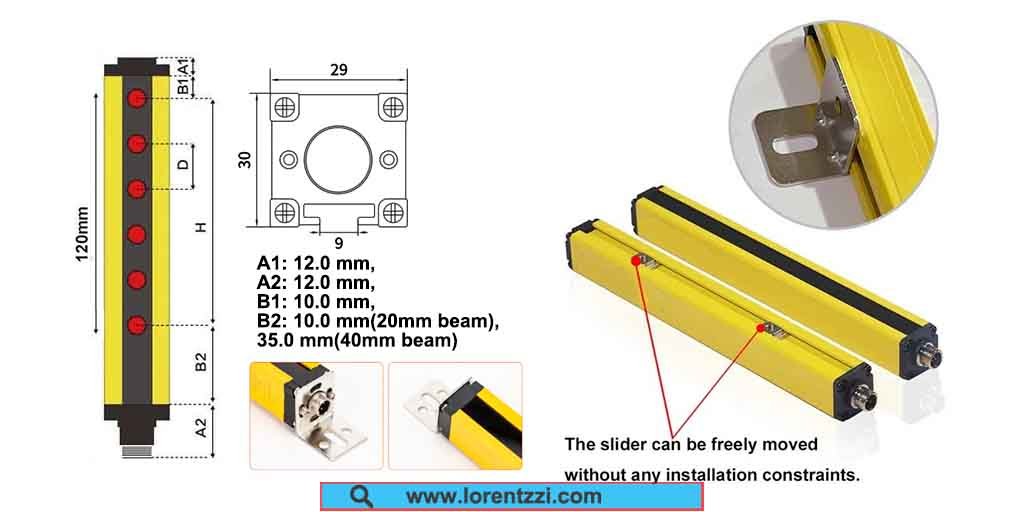

- The groove mounting method makes installation more convenient, and we can use the built-in L-shaped accessories to fix it firmly in place.
- The output can be PNP or NPN normally closed output, or dual PNP or NPN normally closed output.

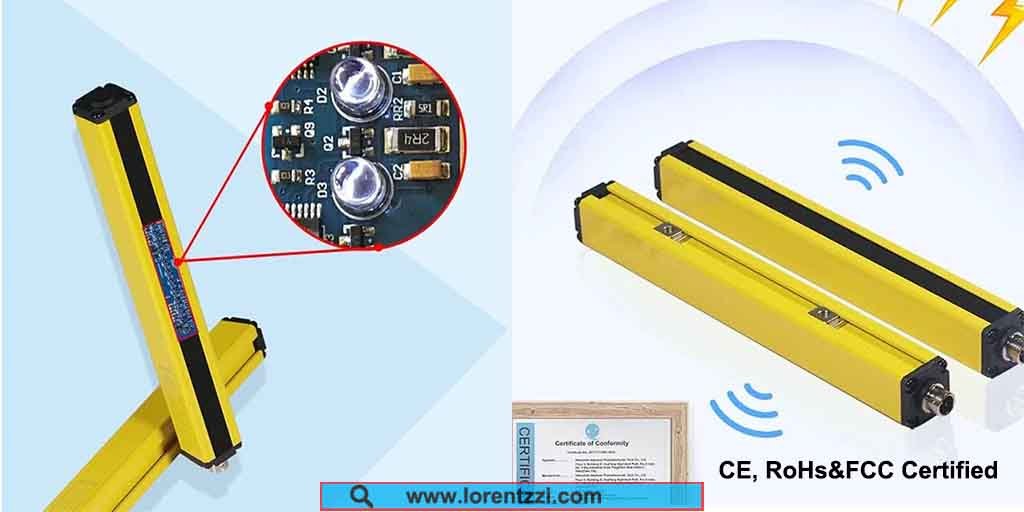

- The light-emitting diode (LED) is an imported brand, ensuring that its infrared wavelength decay time is shorter and the reaction speed is faster.
- The synchronization method of the transmitter and receiver can be line synchronization or optical synchronization.
- This miniature safety barrier is made by the Chinese manufacturer Lorentzzi, with a low minimum order quantity and OEM and ODM services.
- If you want to get our latest price for this small safety light curtain with 120 mm protection height, please fill out the form at the bottom to contact us now!
Specifications:
| Protection height | 120 mm |
| Beam distance | 10 mm/20 mm/40 mm |
| Beam quantity | 4, 6, 8, 10, ..., 200 |
| Working voltage | 24VDC±20% |
| Power consumption | 5W |
| Response time | ＜10ms |
| Insulation resistance | ≥100MΩ |
| Output | PNP, NPN, Relay |
| Protection distance | 0.1-5.0m, 0.1-10.0m, 0.1-15.0m, 0.1-20.0m |
| Working environment temperature | -10-55℃ |
| Storage environment temperature | -25-70℃ |
| Working environment humidity | ＜85% when temperature is 25℃ |
| Output current | 200mA |
| Anti-light interference | 10000Lux (incident angle I>5°) |
| Dielectric strength | AC1500V 60S, No breakdown or flicker |
| Type | Through beam type |

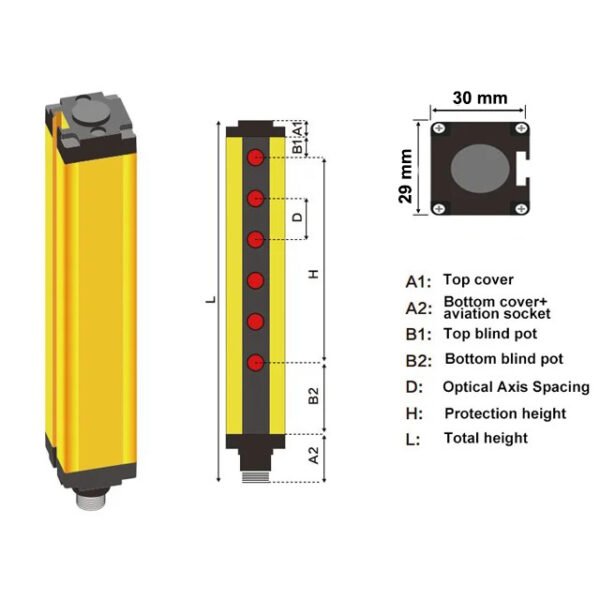

| Cross-sectional size | 29*30 mm |
