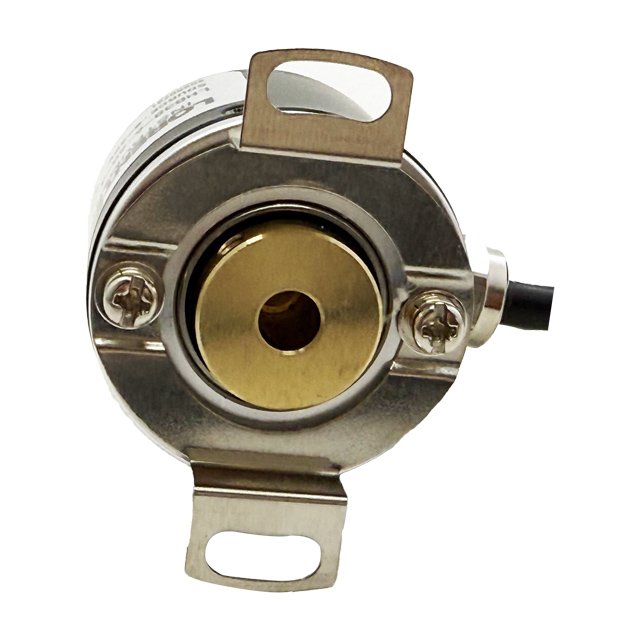

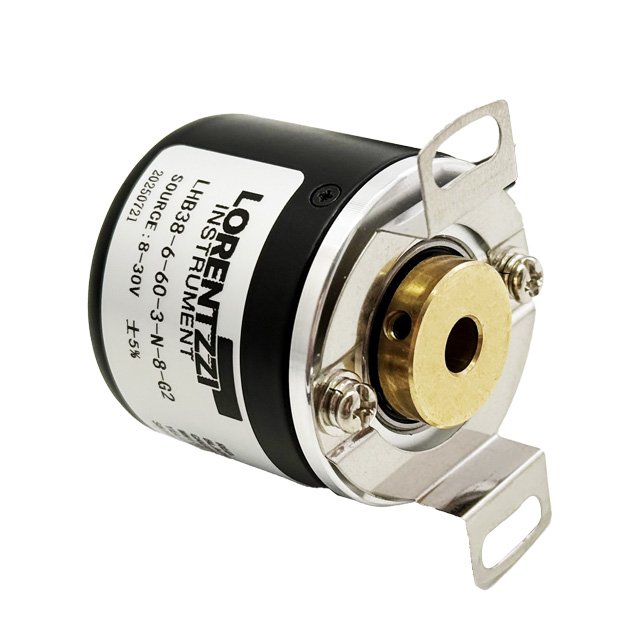

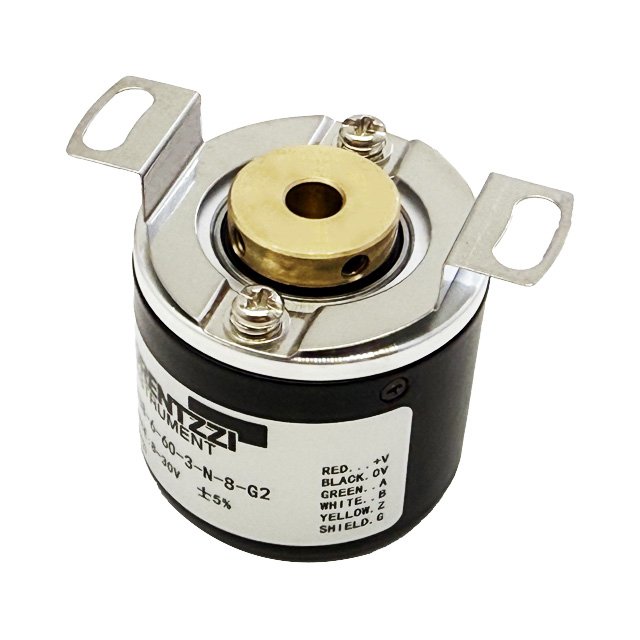

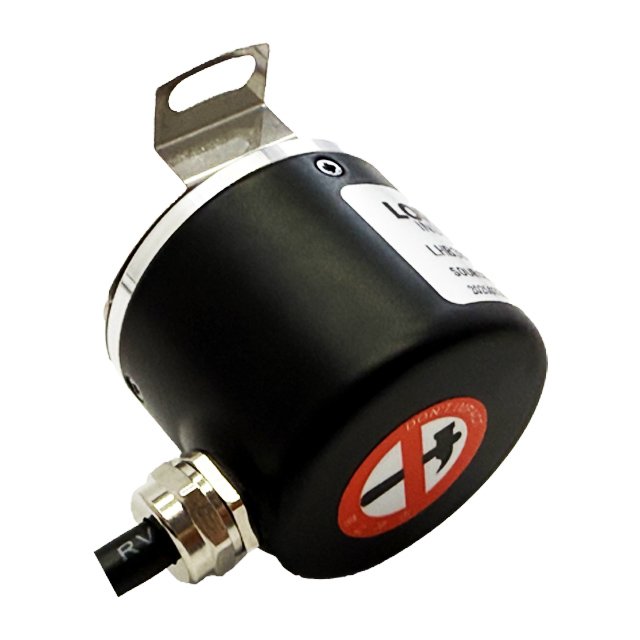

OD 40 mm, 50 mm, 58 mm Incremental Blind Hollow Shaft Encoder Introduction:
- Our incremental blind hollow shaft encoder is available in 40 mm, 50 mm and 58 mm OD, with hollow shaft diameters of 5 mm, 6 mm, 8 mm, 10 mm, 12 mm. For example, you can choose an outer diameter of 38 mm and a shaft of 6 mm.
- The blind hollow shaft design makes the optical rotary encoders easy to install, space-saving and with high concentric.
- For our 40 mm OD semi-hollow encoders, the resolution range is 10 PPR to 3600 PPR, and for the 50 mm and 58 mm encoders, the resolution range is 10 PPR to a maximum of 5400 PPR.
- The physical output phase can be 3-phase A, B, Z or 6-phase A-, B-, B-, Z, Z-, where phases A and B are used to determine the direction of rotation and phase Z is used to determine the zero position.
- There are a variety of electronic outputs to choose from, which can be one of totem pole, open collector, voltage output, line driver, or push-pull.
- If you want to get our latest price of this OD 38 mm, 50 mm, 58 mm Blind Hollow Shaft Encoders, please contact us now to get support!
Product Dimensions:
Ordering Instruction:
Specifications:
| Mechanical parameter | |
| External diameter | 38 mm, 50 mm, 58 mm |
| Shaft type | Blind hollow shaft |
| Shaft diameter | 5 mm, 6 mm, 8 mm, 10 mm, 12 mm |
| Maximum speed | 6000 rmp |
| Shaft load | 20 N |
| Working temperature | -10℃~70℃ |
| Protection grade | IP 50 |
| Connection method | Clamp |
| Resolution | 10-3600 PPR(OD38 mm encoder), 10-5400 PPR(OD 50 mm and OD 58 mm encoder) |
| Vibration resistance | 50 m/s,10-65 Hz, 1 mm double amplitude for 2 hours in X, Y, Z directions |
| Shock resistance | 980 m/s, 6 m/s 2 times each in X,Y, Z directions |
| Electrical parameter | |
| Output | 3-phase: Totem pole, NPN or PNP open collector, voltage output, 6-phase: line driver or push-pull with reversing signal |
| Working voltage | 5 VDC or 8-30 VDC |
| Response rate | 100 kHz |
