TCN4 New Economical Digital Pid Temperature Controller
Digital pid temperature controller controls various heating elements to reach the set temperature by opening or closing the intermediate SSR or relay. On the right is our most advanced TCN4 pid temperature controller. This temperature controller is designed and produced in China, features realiable quality and competitive price.
Digital Pid Temperature Controller Key Features
High Light&Big Indicator
TCN6 temperature controller uses innovative LED lights as digital tubes to display temperature.
SSR&Relay Outputs
There are two outputs available, and the user can select the output to be a SSR or a relay output.
Multipile Inputs
Input temperature sensor types can be thermocouple, RTD, or 4-20 mA and 0-5VDC analog inputs.
Celcius&Farenheit
Users can change the temperature display to two formats: Celsius or Fahrenheit.
Analog Outputs
In addition to SSR or relay outputs, the outputs can also be 4-20 mA or 0-10VDC.
RS485 Commucation
Parameters can be read or written remotely with a touch screen or PLC via the RS485 port.
High Accuracy PID
Adopt the most advanced PID algorithm to accurately control temperature.
Auto-tune function
With self-tuning function, it can automatically control the temperature and reduce the time of manual setting
Heating &Cooling
Our TCN4 PID temperature controller can be used to control heating and cooling, customer can adjust by inner program.
12 Alarm Mode Available
Up to 12 alarm modes available, alarm can be deviation high, deviation low, off-range alarm etc.
Short Installation Depth
Product housing length is only 75 mm, making it saving space and much easier to install.
Display Error Correction
Display error correction function makes our TCN4 temperature controller display temperature more accurately.
Product Gallery

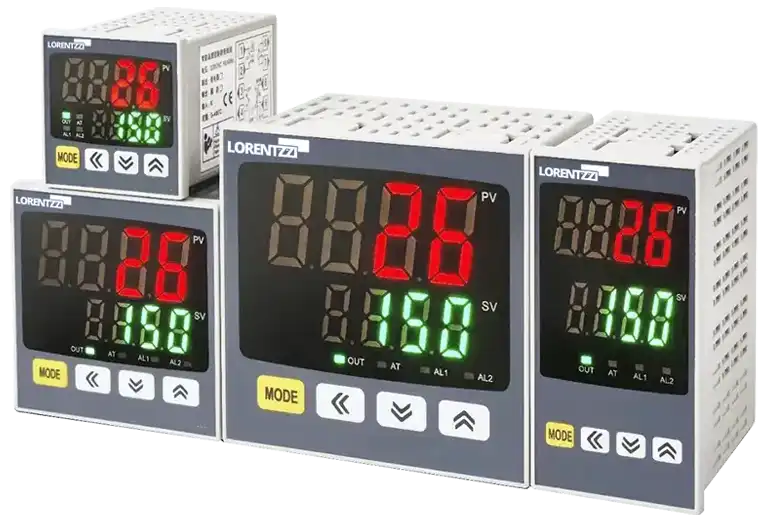

Our TCN4 pid temperature controller has 4 panel sizes, namely 1/16 DIN(48*48mm), 1/8 DIN vertical (48*96mm), 72*72mm and 1/4 DIN(96*96mm), and 1/8 DIN horizontal(96*48mm) is also available. The product depth is 75mm. The compact product size makes it very suitable for installation with other industrial products.
Specifications
| Item | Description |
|---|---|
|
Power Supply |
100-240VAC 50/60Hz or 24VDC |
|
Sampling Time |
100 ms (millisecond) |
|
Voltage Error Range |
± 10% |
|
Power Consumption |
≤ 8VA |
|
Input Sensor |
Thermocouple: K, E, J, N, T, S, R, B. RTD: PT100, Cu50. Analog: 4-20 mA or 0-5 VDC |
|
Display Accuracy |
± 0.5% |
|
Output |
SSR(12 VDC, 20 mA), relay( 3 A@250 VAC, 3 A@30 VDC, NO+NC), SSR+relay, 4-20 mA or 0-5VDC |
|
Alarm |
Alarm 1 or 2 Alarms: 3 A@250VAC, NO(normally open) |
|
Communication Function |
RS485 Modbus RTU |
|
Relay Lifetime |
Mechanical: 22,500,000 times, electrical: ≥100,000 times(resistanceload: 3A@250VAC) |
|
Dielectric Strength |
Between all terminals and case: 3000VAC~50/60Hz for 1 min |
|
Vibration |
0.75mm amplitude at frequency 5 to 55Hz ( for 1 min.) in each X,Y,Z direction for2 hours |
|
Insulation Resistance |
More than 100 MΩ(500VDC--megger) |
|
Noise immunity |
±2kv square shaped noise ( pulse width 1 μs ) by noise simulator R-phase, S-phase |
|
Memory Retention |
Around 10 years |
|
Ambient Temperature |
Usage: -10-50°C, storage :-20-60°C(no freezing orcondensation) |
|
Ambient Humidity |
Usage: 35%-85% RH, storage: 35%~85%RH(no freezing orcondensation) |

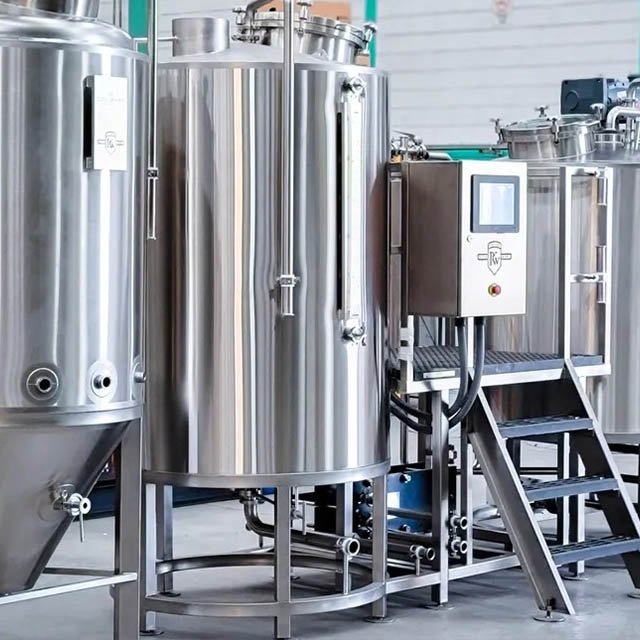

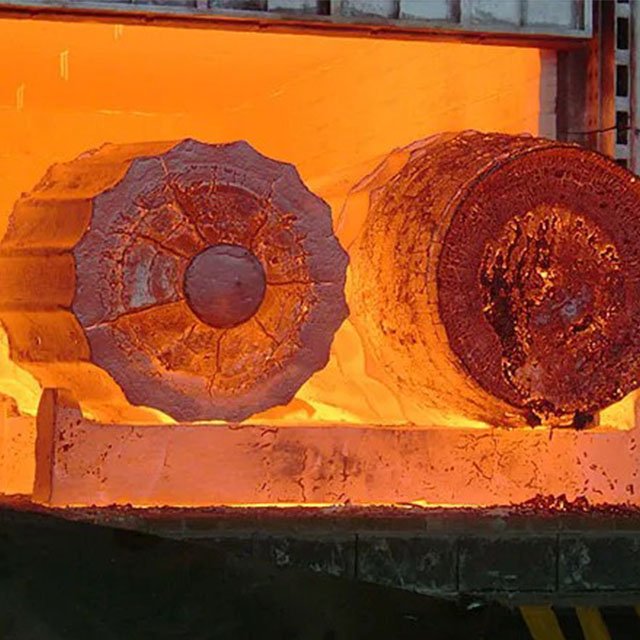

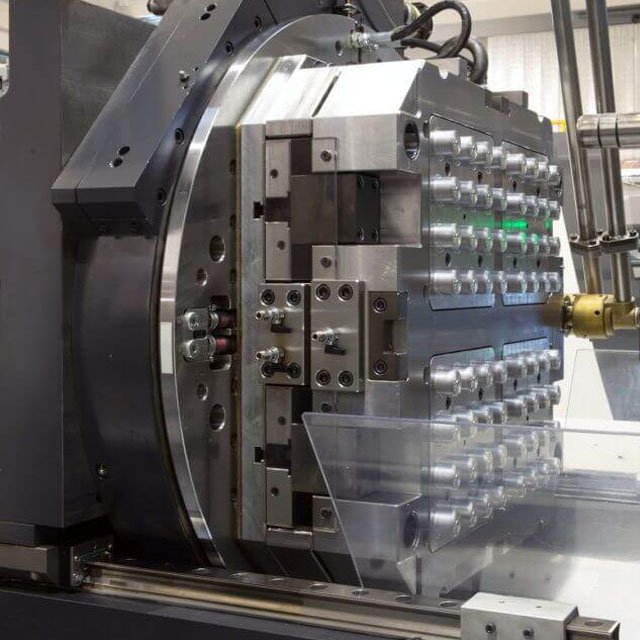

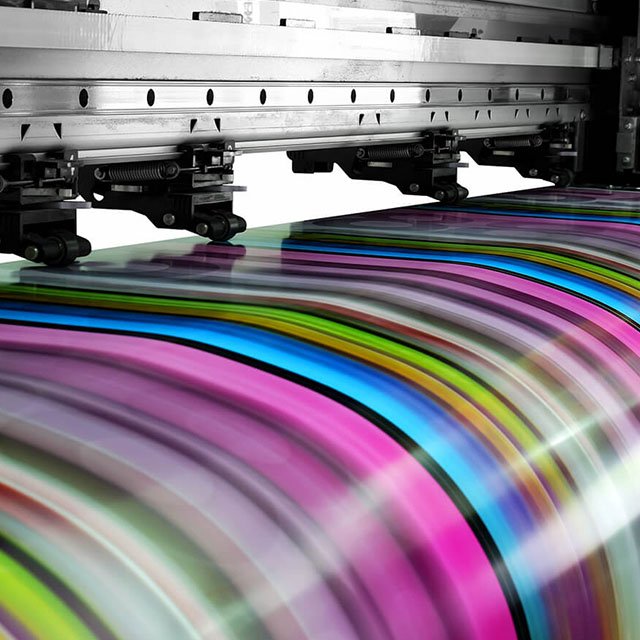

Digital Pid temperature Controller Applications
What is your application?
Wiring Diagram Of Our Digital PID Temperature Controller
48*48 mm TCN4 digital temperature controller wiring diagram for the SSR output
48*48 mm TCN4 digital temperature controller wiring diagram for the relay output
48*96 mm, 72*72 mm and 96*96 mm panel sizes TCN4 digital temperature controller wiring diagram for the SSR
48*96 mm, 72*72 mm and 96*96 mm panel sizes TCN4 digital temperature controller wiring diagram for the relay output
Feedback From Our Customer
Digital PID Temperature Controller: Your Ultimate Guide
In the temperature control system, the digital temperature controller is a key component that cannot be ignored. But what exactly is it and how to choose the right digital thermostat, etc., we will provide you with the ultimate guide.
What Is The Digital PID Temperature Controller?
A digital PID temperature controller is a process instrument used to monitor and control temperature to achieve and maintain a set point. Digital PID temperature controllers are often used with solid state relays, AC contactors, or SCR power controllers to provide heating via heaters or cooling via compressors.
How Many Types Of The Digital Temperature Controller?
There are many types of temperature controllers available in the market, such as Bang-Bang controllers (on/off temperature controllers), proportional temperature controllers, PID temperature controllers, programmable temperature controllers (also known as multi-loop temperature controllers or ramp and soak temperature controllers). For more information, you can have a look at our article: Temperature Controller Types: A Comprehensive Guide.
What Is The DIfference Between The Digital PID Temperature Controller And Thermostat?
- Accuracy: Digital temperature controllers use the most advanced PID algorithm to reduce the difference between the setting temperature and present temperature, while thermostat control method is Bang-bang control, thus digital temperature controllers accuracy is much higher than thermostat.
- Applications: Digital PID temperature controllers are suitable for industrial processes, laboratory equipment, medical equipment, etc. that require precise and complex control. Thermostats are mainly used in heating, ventilation, and air conditioning systems (HVAC) in homes and small commercial buildings.
- Programmable: Both digital PID temperature controllers and thermostats are temperature programmable, but the PID thermostat is more advanced and its PID (proportional-integral-derivative) parameters can be modified according to different applications, while the thermostat can only be programmed for its set temperature.
- Product cost:Digital pid temperature controllers are more expensive due to their advanced features and precise control capabilities.Thermostats are relatively low cost due to their simplicity.
8 Specific Steps To Choose The Right Digital PID Temperature Controller
- Know your application: PID temperature controller is more suitable for heating applications, such as ovens, furnaces and controlling heater heating temperature, etc. We can also use it for cooling, but remember that the controller has this function.
- Choose the suitable output: Digital pid temperature controllers have many outputs available such as SSR, relay or analog 4-20 mA or 0-10VDC, thus how to choose it? Remember that if you want to control the heating more accurately, you had better choose the analog output, or at least SSR output, analog output can make the output more smoother than the SSR or relay PWM control. SSR or relay? Which is better? Please see our article: SSR Vs. AC Contactor: Which Is Better In A Temperature Control System?
- Choose input: Some economical pid temperature controllers may only have thermocouple inputs, but if you want to use it with 4-20 mA or 0-10VDC analog inputs or thermal resistors (RTDs) such as PT100 or Cu50, make sure your temperature controller supports them.
- Working voltage: Working voltage is also an important factor to consider, if you want it to work at 110VAC or 220VAC, you must use 100-240VAC wide working voltage, if there is no AC voltage available, there is only 24VDC power supply, please make sure your temperature controller can work at this voltage.
- Panel size: Digital pid temperature controllers usually have 5 panel sizes, which are 48*48mm, 48*96mm, 72*72mm, 96*48mm or 96*96mm, please make sure which panel size you need.
- Communication: Some application scenarios may require the temperature controller to have a communication function, please make sure your temperature controller has this function. Our above temperature controller has RS485 communication function, which can help you remotely monitor and set the temperature through computer, touch screen or SCADA system.
- Installation: Generally, the temperature controller can be installed through a fixed structure panel, you need to drill a suitable hole and insert it, and then fix it with a fixed structure. But some applications may often use DIN rails to make the whole system look more beautiful, please make sure your pid thermostat is installed as you require.
- Sampling time: Fast sampling means more accurate temperature control, our TCN4 new temperature controller has a sampling time as fast as 100 milliseconds, which is faster than our REX-C and CH series pid temperature controllers. So if you are not worried about the budget, please choose the fast sampling one.
Conclusion
Digital PID temperature controllers are widely used in many fields, and learning relevant knowledge can help us use them more wisely. We hope our above knowledge can help you, if you want to purchase or get more knowledge, please contact us for support.
At Lorentzzi, you can find more interesting products, not only our new TCN4 digital pid temperature controllers, but also switching power supplies, solid state relays, temperature sensors etc.Â
We sense, measure and act!
