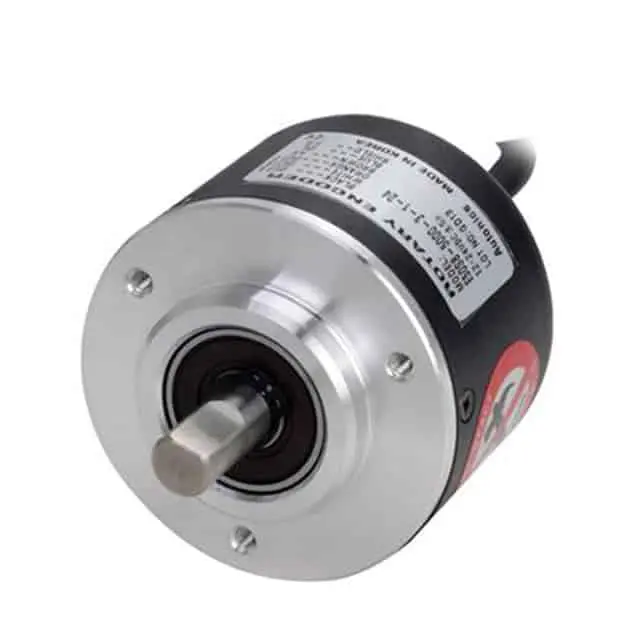

100 PPR Энкодер, инкрементальный энкодер с линейным приводом с твердым валом

100 PPR Encoder Introduction:

• • Lorentzzi® branded Энкодер 100 PPR output is line driver(can be 26LS31(5 VDC working voltage only ) or 7272(8-30 VDC wide working voltage)), it has AA-, BB- and ZZ- 6 phases. When it is used with a servo motor, it will generate 100 pulses for one rotation.
  • The line driver output is also called differential long-line drive. It has many advantages compared with AB two phase quadrature encoder, the advantages are noise immunity, longer transmission distance and reliability. For more information about line driver outputs in encoders, please refer to this article: "Что такое кодировщик с линейным драйвером?“.
  • The default cable length is 2 meters, if you want longer cable, it is also available, please связаться с нами for the cable length customization.
  • In addition, the cable outlet methods include rear outlet и side outlet, and the connectors include aviation plug и cable output. The aviation plug is more reliable than the cable plug.
  • Lorentzzi® branded 100 PPR encoder has a flange, which is easy to install and disassemble, has high strength and good sealing performance.
  • Want to get an immediate quote or technical support from us? Fill out the contact form at the bottom to get our experts’ advice!

Форма выходной волны:

Соединительные муфты Lorentzzi с цельным валом и поворотным энкодером:

Инструкция по заказу:

Технические характеристики:
