TCN4 New Economical Digital PID Temperature Controller
Our digital PID temperature controller can controls various heating elements to achieve a set temperature by opening or closing an intermediate РСБ или Контактор переменного тока. Seen to the right is an image of our most advanced TCN4 PID temperature controller. Designed and manufactured in China, this controller offers reliable quality at a competitive price.
Our digital PID temperature controller key features
High Light&Big Indicator
TCN4 temperature controller uses innovative LED lights as digital tubes to display temperature.
SSR&Relay Outputs
There are two outputs available, and the user can select the output to be a РСБ or a relay output.
Multipile Inputs
Вход temperature sensor types can be thermocouple, RTD, or 4-20 mA and 0-5VDC analog inputs.
Celcius&Farenheit
Users can change the temperature display to two formats: Celsius or Fahrenheit.
Analog Outputs
In addition to SSR or relay outputs, the output can also be 4-20 mA or 0-10 VDC, which can be used to control our SCR power conditioners.
RS485 Commucation
Parameters can be read or written remotely with a touch screen or PLC via the RS485 port.
High Accuracy PID
Adopt the most advanced PID algorithm to accurately control temperature.
Auto-tune function
With self-tuning function, it can automatically adjust PID parameters and reduce manual setting time
Heating &Cooling
Our TCN4 PID temperature controller can be used to control heating and cooling, customer can adjust by inner program.
12 Alarm Mode Available
Up to 12 alarm modes available, alarm can be deviation high, deviation low, off-range alarm etc.
Short Installation Depth
Product housing length is only 75 mm, making it saving space and much easier to install.
Display Error Correction
Display error correction function makes our TCN4 temperature controller display temperature more accurately.
Product gallery
Our TCN4 pid temperature controller has 4 panel sizes, namely 1/16 DIN(48*48 мм), 1/8 DIN vertical (48*96mm), 72*72mm and 1/4 DIN(96*96mm), and 1/8 DIN horizontal(96*48mm) is also available. The product depth is 75mm. The compact product size makes it very suitable for installation with other industrial products.
Технические характеристики
| Артикул | Description |
|---|---|
|
Power Supply |
100-240 В переменного тока 50/60 Гц или 24 В постоянного тока |
|
Sampling Time |
100 ms (millisecond) |
|
Voltage Error Range |
± 10% |
|
Power Consumption |
≤ 8VA |
|
Input Sensor |
Thermocouple: K, E, J, N, T, S, R, B. RTD: PT100, Cu50. Analog: 4-20 mA or 0-5 VDC |
|
Display Accuracy |
± 0.5% |
|
Выход |
SSR(12±2 VDC, 20 mA), relay( 3 A@250 VAC, 3 A@30 VDC, NO+NC), SSR+relay, 4-20 mA or 0-5VDC |
|
Сигнализация |
Alarm 1 or 2 Alarms: 3 A@250VAC, NO(normally open) |
|
Communication Function |
RS485 Modbus RTU |
|
Relay Lifetime |
Mechanical: 22,500,000 times, electrical: ≥100,000 times(resistanceload: 3A@250VAC) |
|
Dielectric Strength |
Between all terminals and case: 3000VAC~50/60Hz for 1 min |
|
Вибрация |
0.75mm amplitude at frequency 5 to 55Hz ( for 1 min.) in each X,Y,Z direction for2 hours |
|
Insulation Resistance |
More than 100 MΩ(500VDC–megger) |
|
Noise immunity |
±2kv square shaped noise ( pulse width 1 μs ) by noise simulator R-phase, S-phase |
|
Memory Retention |
Around 10 years |
|
Ambient Temperature |
Usage: -10-50°C, storage :-20-60°C(no freezing orcondensation) |
|
Ambient Humidity |
Usage: 35%-85% RH, storage: 35%~85%RH(no freezing orcondensation) |
Our digital PID temperature controller applications
Coffee roasting equipment
Manages rapid temperature changes during roasting to achieve consistent roast levels. Real-time adjustments prevent burning or under-roasting, preserving aroma and flavor.
Beer brewing equipment
Controls fermentation temperatures to optimize yeast activity and flavor profiles. Monitors and adjusts heat during mashing, boiling, and conditioning stages to prevent off-flavors.
Printing equipment
Stabilizes temperature in processes like ink drying or toner fusing. Prevents overheating or underheating that could cause smudging or misalignment, enhancing print quality.
Injection molding equipment
Ensures precise temperature regulation of plastic resin in barrels, nozzles, and hot runners, reducing defects like warping or incomplete fills and improving part quality.
Plastic bottle manufacturing
Regulates heat in extrusion and blow molding processes to maintain resin viscosity and mold integrity. Prevents defects such as uneven wall thickness.
Oven and furnace temperature control
Maintains uniform distribution heat in industrial ovens, kilns, or furnaces, dynamically adjusting heating elements to compensate for load changes or heat loss.
What is your application?
Wiring diagram of our digital PID temperature controller

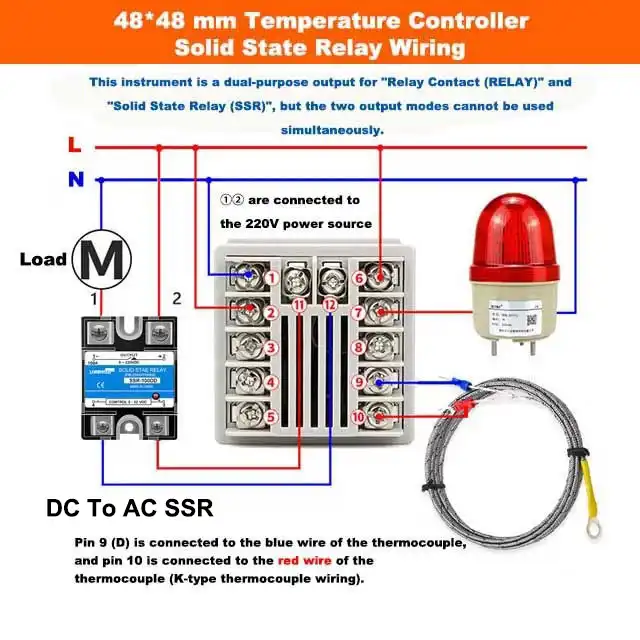

48*48 mm TCN4 digital temperature controller wiring diagram for the SSR output

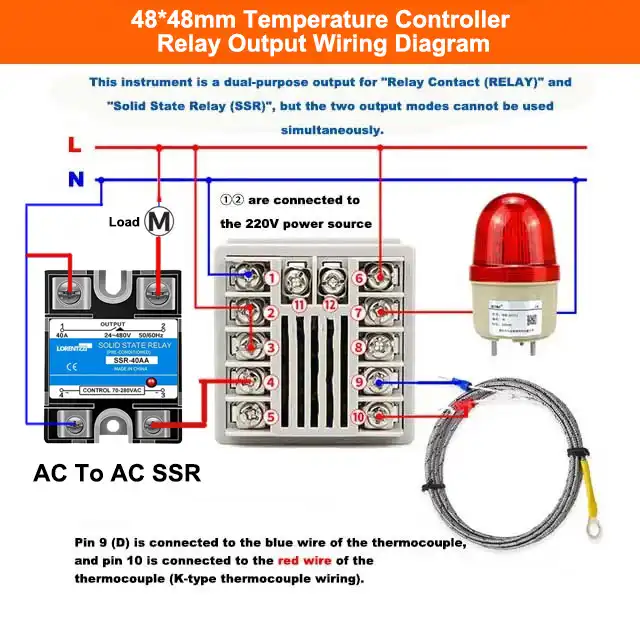

48*48 mm TCN4 digital temperature controller wiring diagram for the relay output

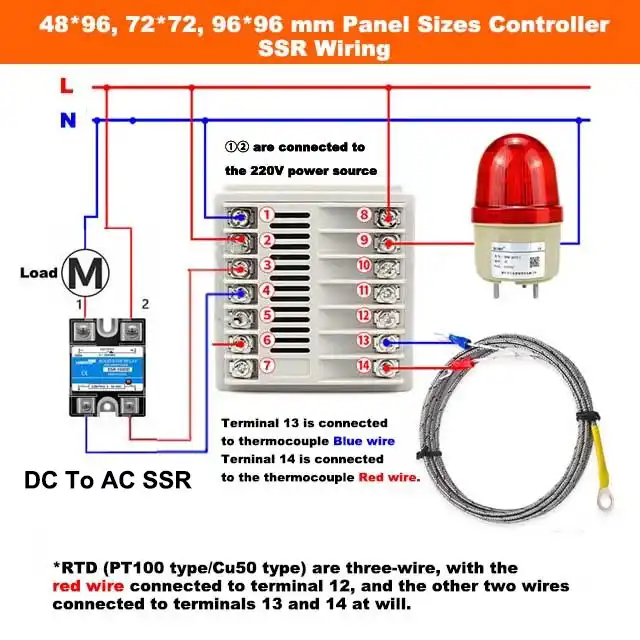

48*96 mm, 72*72 mm and 96*96 mm panel sizes TCN4 digital temperature controller wiring diagram for the SSR

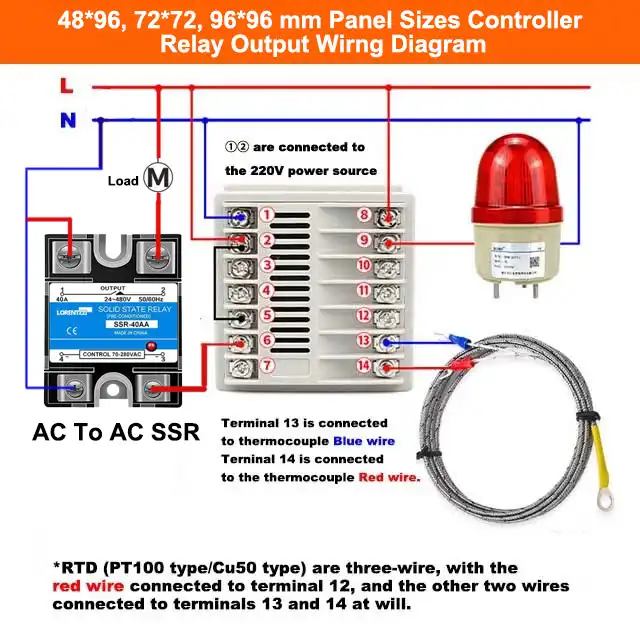

48*96 mm, 72*72 mm and 96*96 mm panel sizes TCN4 digital temperature controller wiring diagram for the relay output
Feedback from our customer
Lorentzzi partners worldwide
Lorentzzi has established stable partnerships with well-known companies around the world. Our successful customers include:
Digital PID temperature controller: your ultimate guide
In the temperature control system, the digital temperature controller is a key component that cannot be ignored. But what exactly is it and how to choose the right digital thermostat, etc., we will provide you with the ultimate guide.
What is the digital PID temperature controller?
A digital PID temperature controller is a process instrument used to monitor and control temperature to achieve and maintain a set point. Digital PID temperature controllers are often used with solid state relays, AC contactors, or Контроллеры питания SCR to provide heating via heaters or cooling via compressors.
How many types of the digital temperature controller?
There are many types of temperature controllers available in the market, such as Bang-Bang controllers (on/off temperature controllers), proportional temperature controllers, PID temperature controllers, programmable temperature controllers (also known as multi-loop temperature controllers or ramp and soak temperature controllers). For more information, you can have a look at our article: Temperature Controller Types: A Comprehensive Guide.
What is the difference between the digital PID temperature controller and thermostat?
- Точность: Digital temperature controllers use the most advanced PID algorithm to reduce the difference between the setting temperature and present temperature, while thermostat control method is Bang-bang control, thus digital temperature controllers accuracy is much higher than thermostat.
- Applications: Digital PID temperature controllers are suitable for industrial processes, laboratory equipment, medical equipment, etc. that require precise and complex control. Thermostats are mainly used in heating, ventilation, and air conditioning systems (HVAC) in homes and small commercial buildings.
- Programmable: Both digital PID temperature controllers and thermostats are temperature programmable, but the PID thermostat is more advanced and its PID (proportional-integral-derivative) parameters can be modified according to different applications, while the thermostat can only be programmed for its set temperature.
- Product cost:Digital pid temperature controllers are more expensive due to their advanced features and precise control capabilities.Thermostats are relatively low cost due to their simplicity.
8 specific steps to choose the right digital PID temperature controller
- Know your application: PID temperature controller is more suitable for heating applications, such as ovens, furnaces and controlling heater heating temperature, etc. We can also use it for cooling, but remember that the controller has this function.
- Choose the suitable output: Digital pid temperature controllers have many outputs available such as SSR, relay or analog 4-20 mA or 0-10VDC, thus how to choose it? Remember that if you want to control the heating more accurately, you had better choose the analog output, or at least SSR output, analog output can make the output more smoother than the SSR or relay PWM control. SSR or relay? Which is better? Please see our article: SSR и контактор переменного тока: Что лучше в системе контроля температуры?
- Choose input: Some economical pid temperature controllers may only have thermocouple inputs, but if you want to use it with 4-20 mA or 0-10VDC analog inputs or thermal resistors (RTDs) such as PT100 or Cu50, make sure your temperature controller supports them.
- Рабочее напряжение: Working voltage is also an important factor to consider, if you want it to work at 110VAC or 220VAC, you must use 100-240VAC wide working voltage, if there is no AC voltage available, there is only 24VDC power supply, please make sure your temperature controller can work at this voltage.
- Panel size: Digital pid temperature controllers usually have 5 panel sizes, which are 48*48mm, 48*96mm, 72*72mm, 96*48mm or 96*96mm, please make sure which panel size you need.
- Общение: Some application scenarios may require the temperature controller to have a communication function, please make sure your temperature controller has this function. Our above temperature controller has RS485 communication function, which can help you remotely monitor and set the temperature through computer, touch screen or SCADA system.
- Установка: Generally, the temperature controller can be installed through a fixed structure panel, you need to drill a suitable hole and insert it, and then fix it with a fixed structure. But some applications may often use DIN rails to make the whole system look more beautiful, please make sure your pid thermostat is installed as you require.
- Время выборки: Fast sampling means more accurate temperature control, our TCN4 new temperature controller has a sampling time as fast as 100 milliseconds, which is faster than our REX-C and CH series pid temperature controllers. So if you are not worried about the budget, please choose the fast sampling one.
Заключение
Digital PID temperature controllers are widely used in many fields, and learning relevant knowledge can help us use them more wisely.
We hope our above knowledge can help you, if you want to purchase or get more knowledge, please связаться с нами for support.
На сайте Lorentzzi®, you can find more interesting products, not only our new TCN4 digital pid temperature controllers, but also switching power supplies, solid state relays, температурные датчики etc.
